LH172R-RRMNE (2001)

Toyota Hiace Van,Commuter

Production Aug 2001 - Jan 2005
Engine 5LE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0108- )DEFI

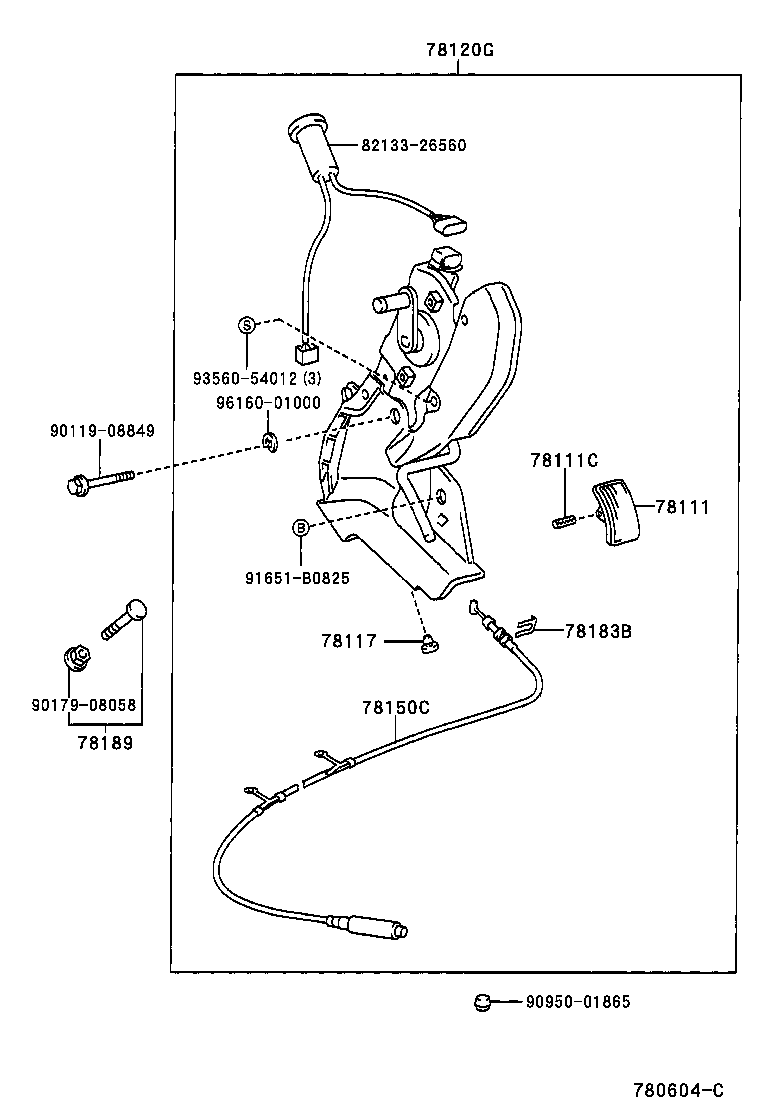

Click highlighted areas on diagram

diagram 78111 78111C 78117 78120G 78150C 78183B 78189 8213326560 9011908849 9017908058 9095001865 91651B0825 9356054012 9616001000
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-16010

LH172..DEFI

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04034

LH172..DEFI

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

LH172..DEFI

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78010-26011

LH172..DEFI

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-26071

LH172..DEFI

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95J03

LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184

NO.2

 1
78183-26170

LH172..DEFI

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-26010

LH172..DEFI

 1
Common parts
82133-26560
90119-08849
90179-08058
90950-01865
91651-B0825
93560-54012
96160-01000
