LH164L-BFMRSX (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Aug 2004
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )LH102,104,105,11#,164,172,174,RZH10#,11#..LHD

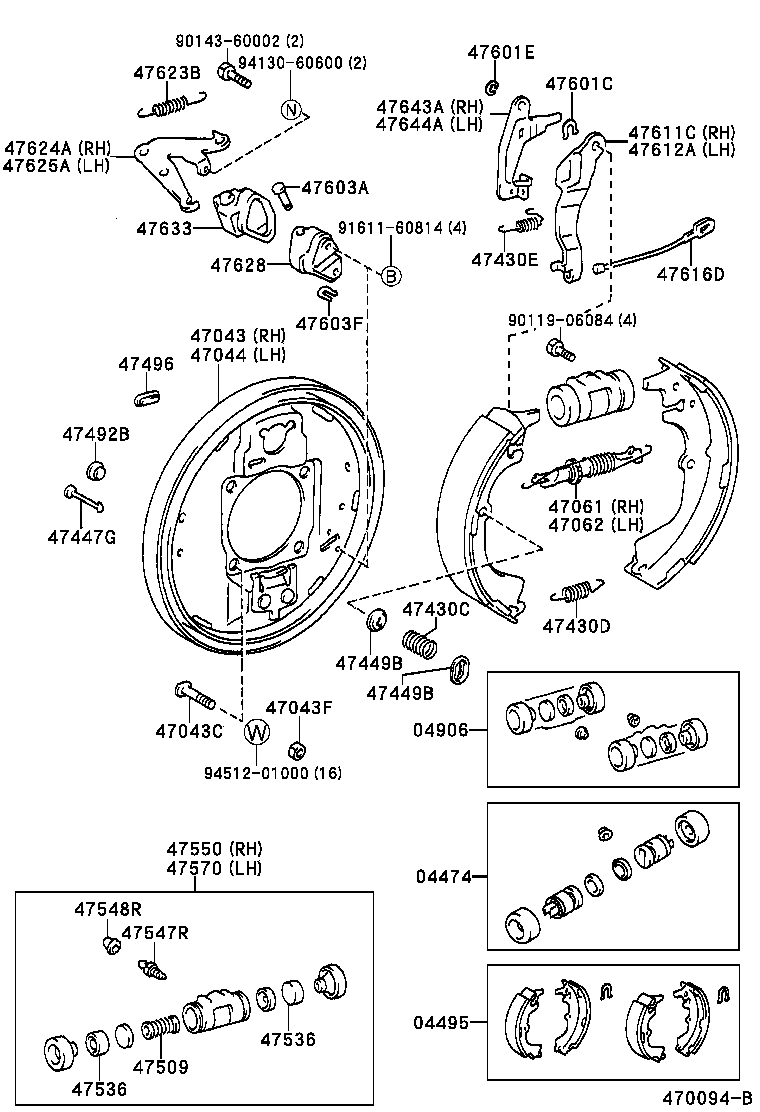

Click highlighted areas on diagram

diagram 04474 04495 04906 47043 47043C 47043F 47044 47061 47062 47430C 47430D 47430E 47447G 47449B 47449B 47492B 47496 47509 47536 47536 47547R 47548R 47550 47570 47601C 47601E 47603A 47603F 47611C 47612A 47616D 47623B 47624A 47625A 47628 47633 47643A 47644A 9011906084 9014360002 9161160814 9413060600 9451201000
Part # Description Qty Price
47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH
47643-26020

RZH112..5D;RZH112..03S;LH10#,11#,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#

 1
47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH
47644-26020

RZH112..5D;RZH112..03S;LH10#,11#,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#

 1
Common parts
90119-06084
90143-60002
91611-60814
94130-60600
94512-01000
