LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

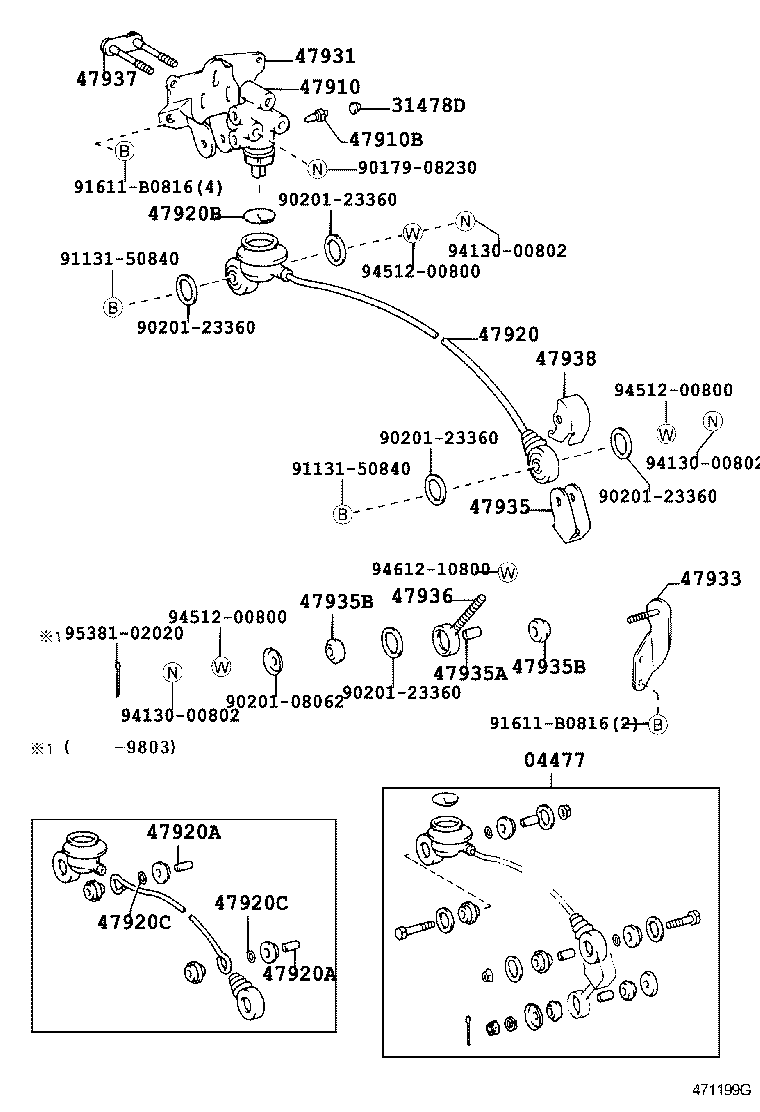

ILLUST NO. 3 OF 3(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125

Click highlighted areas on diagram

W(LSPV)

diagram 04477 31478D 47910 47910B 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47936 47937 47938 9017908230 9020108062 9020123360 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 91611B0816 91611B0816 9413000802 9413000802 9413000802 9451200800 9451200800 9451200800 9461210800 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-26010

LH10#,11#,125,RZH10#,11#,125

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-26180

LH10#,11#,125,RZH10#,11#,125

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-26090

LH10#,11#,125,RZH10#,11#,125

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35020

LH10#,11#,125,RZH10#,11#,125

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH10#,11#,125,RZH10#,11#,125

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LH10#,11#,125,RZH10#,11#,125

 2
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35040

LH10#,11#,125,RZH10#,11#,125

 1
Common parts
90179-08230
90201-08062
90201-23360
91131-50840
91611-B0816
94130-00802
94512-00800
94612-10800
95381-02020

ILLUST NO. 1 OF 3(0008- )LH154,RZH155 ; (0208- )RZH153

Click highlighted areas on diagram

W(ABS)

diagram 42127A 47311 47311A 47311B 47312 47312E 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47316 47317 47318 47319 47319 47321 47321D 47322 47322B 47323 47324 47325 47326 47327 47328 47329 47329 47331 47331 47361A 47361A 47362 47362 47378 47383 47900 9017908025 9046106112 9046106112 9046106112 9046112328 9046400447 9046400581 9046400704 9046808032 9046808032 9046808032 9048001069 9048001196 9048001359 9094901592 9094901A33 9094901A34 9094901A35 9161160814 9161160814 9161160828 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611B0816 91611G0820 91611G0820 91611G0820 9165140814 9165140814 9165140816 9165140820 9165160818 9622130905 9622130905
Part # Description Qty Price
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90414-10019

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-26140

LH10#,11#,125,RZH10#,11#,125,135,153

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02592

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

 2
90947-02591

LH10#,11#,125,RZH10#,11#,125

LH

 1
90947-02590

LH10#,11#,125,RZH10#,11#,125

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02592

RZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN

 2
90947-02591

LH10#,11#,125,RZH10#,11#,125

LH

 1
90947-02590

LH10#,11#,125,RZH10#,11#,125

RH

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-26140

LH10#,11#,125,RZH10#,11#,125

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-26120

LH10#,11#,125,RZH10#,11#,125

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-26310

LH10#,11#,125,RZH10#,11#,125

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-26250

LH10#,11#,125,RZH10#,11#,125

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-26280

LH102,104,105,11#,RZH10#,11#..LHD

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-26130

LH102,104,105,11#,RZH10#,11#..LHD

 1
47378 - PROTECTOR, BRAKE TUBE
47378-26021

LH162..4FC..ARL;LH114,154,184,RZH155..10S,11S,12S,14S;LH172,174,RZH113,115..(03S,15S)..GCC..(DSL,EFI)

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-26441

LH154,RZH135,15#..GEN

 1
Common parts
90179-08025
90461-06112
90461-12328
90464-00447
90464-00581
90464-00704
90468-08032
90480-01069
90480-01196
90480-01359
90949-01592
90949-01A33
90949-01A34
90949-01A35
91611-60814
91611-60828
91611-B0816
91611-G0820
91651-40814
91651-40816
91651-40820
91651-60818
96221-30905
