LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT(DEALER OPT)

diagram 8271195704 8271195704 88510T 88539C 88539C 88539J 88539J 88539K 88539K 88539K 88539K 8856995J00 8857895J01 8857895J01 8857895J09 8857895J09 88605C 88605S 88635R 8889787101 8889787101 88898D 8889995J19 88899G 9041315001 9041315001 9048020013 9048026022 9338516014 9354014012 9354014012 9354015020
Part # Description Qty Price
88510T - UNIT ASSY, COOLING (REAR)
88510-2F320

LH154,RZH155

 1
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-2F440

LH154,RZH155

 1
Common parts
82711-95704
88569-95J00
88578-95J01
88578-95J09
88897-87101
88899-95J19
90413-15001
90480-20013
90480-26022
93385-16014
93540-14012
93540-15020

ILLUST NO. 3 OF 4(8908- )

Click highlighted areas on diagram

REAR UNIT BRACKET(DEALER OPT)

diagram 88536 88536 88536 88536 88536A 88536A 88536A 88536A 88536B 88536B 8868826010 8868826010 8868826010 8868826010 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9009120604 9017906274 9017906274 9017906274 9017906274 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9338516014 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012 9354015012
Part # Description Qty Price
88536A - BRACKET, COOLING UNIT, NO.2
88536-26290

LH154,RZH155

LH

 1
88536-26180

LH154,RZH155

LH

 1
88536-26280

LH154,RZH155

RH

 1
88536-26170

LH154,RZH155

RH

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-26290

LH154,RZH155

LH

 1
88536-26180

LH154,RZH155

LH

 1
88536-26280

LH154,RZH155

RH

 1
88536-26170

LH154,RZH155

RH

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-26290

LH154,RZH155

LH

 1
88536-26180

LH154,RZH155

LH

 1
88536-26280

LH154,RZH155

RH

 1
88536-26170

LH154,RZH155

RH

 1
88536A - BRACKET, COOLING UNIT, NO.2
88536-26290

LH154,RZH155

LH

 1
88536-26180

LH154,RZH155

LH

 1
88536-26280

LH154,RZH155

RH

 1
88536-26170

LH154,RZH155

RH

 1
Common parts
88688-26010
90091-20604
90179-06274
93385-16014
93540-15012

ILLUST NO. 2 OF 4(0008- )LH154,RZH155

Click highlighted areas on diagram

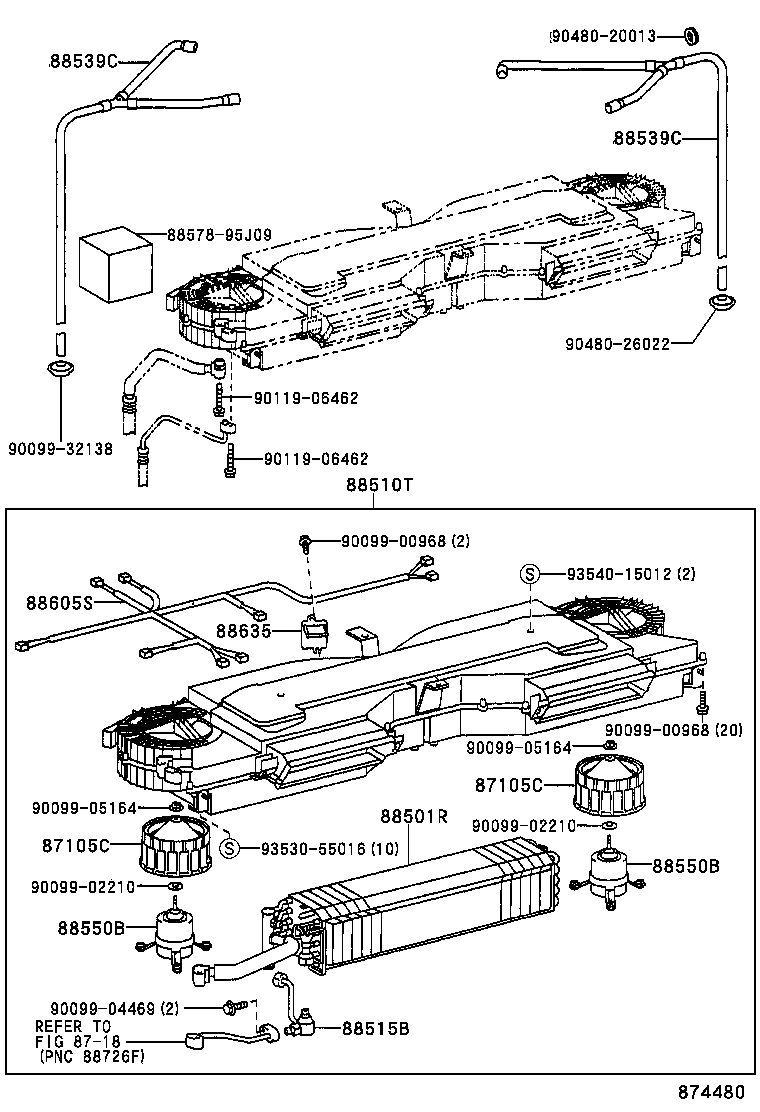

REAR UNIT

diagram 87105C 87105C 8718 88501R 88510T 88515B 88539C 88539C 88550B 88550B 8857895J09 88605S 88635 9009900968 9009900968 9009902210 9009902210 9009904469 9009905164 9009905164 9009932138 9011906462 9011906462 9048020013 9048026022 9353055016 9354015012
Part # Description Qty Price
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-95J03

LH154,RZH155

RH

 1
87105-95J04

LH154,RZH155

LH

 1
87105C - FAN SUB-ASSY, BLOWER, REAR
87105-95J03

LH154,RZH155

RH

 1
87105-95J04

LH154,RZH155

LH

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-26170

LH154,RZH155

 1
88510T - UNIT ASSY, COOLING (REAR)
88510-2F320

LH154,RZH155

 1
88550B - MOTOR ASSY, BLOWER
88550-26060

LH154,RZH155

 2
88550B - MOTOR ASSY, BLOWER
88550-26060

LH154,RZH155

 2
88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88605-2F440

LH154,RZH155

 1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-95J04

LH154,RZH155

 1
Common parts
88578-95J09
90099-00968
90099-02210
90099-04469
90099-05164
90099-32138
90119-06462
90480-20013
90480-26022
93530-55016
93540-15012
Linked diagrams
8718
