LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 9(8908- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL SWITCHES

diagram 84152 84152B 84162 84162A 84162B 84162C 84162E 84172 84330 84330B 84480 84660C 84730 84730B 84730D 84730R 84790 84790B 84870A 85500 85500B 85500F 85513 85515 85520 85530 85533 88607C
Part # Description Qty Price
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-95J02

LH10#,11#,125,RZH10#,11#,125

 1
84480 - SWITCH ASSY, MAIN
84480-26030

LH10#,11#,125,RZH10#,11#,125

 1
84660C - SWITCH, COOLER
84660-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-22140

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
84730B - BULB, HEATER BLOWER SWITCH
90981-11014

LH125..ARL;LH10#,11#,RZH10#,11#,125

14V 1.4W

 1
84730D - CAP, HEATER BLOWER SWITCH BULB
84998-10050

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-12250

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-20080

LH125..ARL;LH10#,11#,RZH10#,11#,125

 1

ILLUST NO. 7 OF 9(8908- )LH10#,11#,125,16#,17#,184,RZH10#,11#,125,135,153

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

diagram 28610 8271126120 84730R 84732A 85336 85530B 85959A 9011906171 9356614512
Part # Description Qty Price
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-54190

LH10#,11#,125

 1
85335-75010

RZH10#,11#,125

 1
Common parts
82711-26120
90119-06171
93566-14512

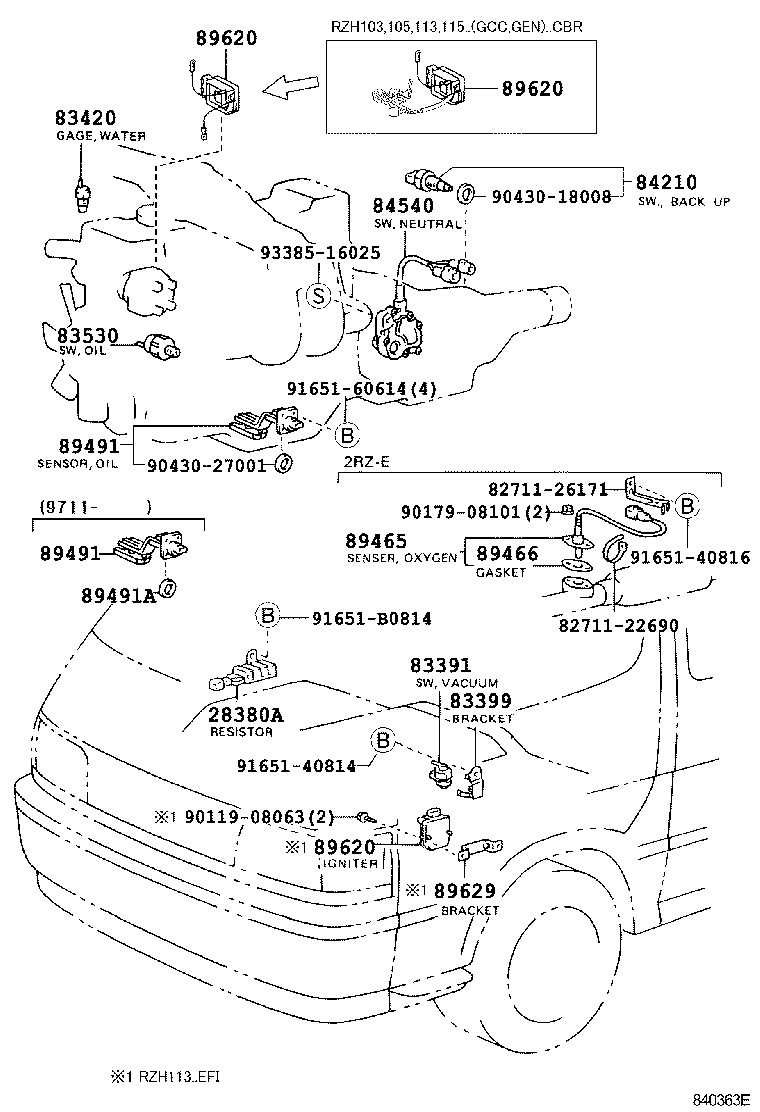

ILLUST NO. 1 OF 9(8908- )RZH10#,11#,125,135,15#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 28380A 8271122690 8271126171 83391 83399 83420 83530 84210 84540 89465 89466 89491 89491 89491A 89620 89620 89620 89629 9011908063 9017908101 9043018008 9043027001 9165140814 9165140816 9165160614 91651B0814 9338516025
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH10#,11#,125,RZH10#,11#,125

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14040

RZH10#,11#,125

 1
83530-30060

LH10#,11#,125

YAZAKI

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
Common parts
82711-22690
82711-26171
90119-08063
90179-08101
90430-18008
90430-27001
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16025

ILLUST NO. 3 OF 9(8908- )LHD

Click highlighted areas on diagram

COWL RELAY & SWITCHES

diagram 28300 28300 28317 28610A 28610A 81980 82223F 8271595J00 83390 84340 84340 84461A 84550 85930 85940B 85969 85980 85985 85991 86640 86650C 89701 9011906198 9165140612 9165140814 9165140816 9165160614 9165160614 9165160614 91651B0814 9338516012 9338516012 9354014012 9354014012 9412041000 9412041000
Part # Description Qty Price
81980 - FLASHER ASSY, TURN SIGNAL
81980-22110

LH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LH10#,11#,125

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84340-42010

LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,154,164,166,174,176,184,RZH102,103,112,113,125,135,15#

 1
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH10#,11#,125,RZH10#,11#,125

 1
84340-42010

LH172..STD;LH172..03S..GL;LH172..GL..DEFI;RZH115..CIS,GCC;RZH104..LHD..STD;RZH115..GEN..EFI;LH162,RZH114..4D..5F..STD;LH162,RZH105,114..(03S,06S,12S)..(CIS,GEN);LH10#,11#,154,164,166,174,176,184,RZH102,103,112,113,125,135,15#

 1
84461A - SWITCH, BRAKE RESERVOIR LEVEL WARNING
84461-26040

LH10#,11#,125,RZH10#,11#,125

 1
84550 - SWITCH ASSY, PARKING BRAKE
84550-20030

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
85940B - RELAY ASSY, REAR WIPER
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
85980 - RELAY ASSY, DOOR CONTROL
85980-95J06

LH102,104,105,11#,RZH10#,11#..LHD

 1
86650C - BUZZER ASSY, SEDIMENTER WARNING
86650-95J06

LH10#,11#,125

 1
Common parts
82715-95J00
90119-06198
91651-40612
91651-40814
91651-40816
91651-60614
91651-B0814
93385-16012
93540-14012
94120-41000

ILLUST NO. 8 OF 9(8908- )

Click highlighted areas on diagram

DOOR CONTROL

diagram 84234 84261B 84261C 84262B 84262C 84535A 84931A 85918A 85975 9010906296 9011906885 9011906885 9011906911 9011906911 9015960025 9015960413 9015960413 9017906274 9018905019 9018905131 9018905131 9353055020 9353055020
Part # Description Qty Price
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-95J02

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84261B - JUNCTION, SLIDE DOOR CONTROL,MALE
84261-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
84262B - JUNCTION, SLIDE DOOR CONTROL, FEMALE
84262-95J03

LH125..ARL;LH10#,11#,RZH10#,11#,125..4D

 1
Common parts
90109-06296
90119-06885
90119-06911
90159-60025
90159-60413
90179-06274
90189-05019
90189-05131
93530-55020

ILLUST NO. 9 OF 9(8908- )

Click highlighted areas on diagram

REAR FLOOR, BACK DOOR RELAY & SW.

diagram 83320 83361 84235 84238A 84265 84265 84266 84266 85940B 9011906390 9016150004 9016150004 9016150004 9016150004 9016150004 9018905063 9018905063 9018905063 9018905063 9018905063 9048015194 9048015194 9165160614 93319A4010
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-80153

LH10#,11#,125

 1
83320-80150

RZH10#,11#,125

 1
85940B - RELAY ASSY, REAR WIPER
85940-95J02

LH10#,11#,125,RZH10#,11#,125

 1
Common parts
90119-06390
90161-50004
90189-05063
90480-15194
91651-60614
93319-A4010

ILLUST NO. 1 OF 9(8908- )LH10#,11#,125,154,16#,17#,184

Click highlighted areas on diagram

ENGINE & TRANSMISSION

diagram 1987766010 28621 2862257010 2862354010 83420 83530 84210 84540 89420F 89421D 89422A 89437 89491 89491 89491A 9011606095 9017905032 9017906158 9043012221 9043018008 9043027001 9165160614 9331915008 9338516025 9461310601
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH10#,11#,125,RZH10#,11#,125

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-14040

RZH10#,11#,125

 1
83530-30060

LH10#,11#,125

YAZAKI

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-26040

RZH10#,11#,125

 1
89491-26010

LH10#,11#,125

 1
Common parts
19877-66010
28622-57010
28623-54010
90116-06095
90179-05032
90179-06158
90430-12221
90430-18008
90430-27001
91651-60614
93319-15008
93385-16025
94613-10601

ILLUST NO. 6 OF 9(8908- )

Click highlighted areas on diagram

FRONT DOOR SWITCHES

diagram 28300 28520 28520 28521 28521 28529 82620B 82622 82623 84233 84233 84550 84739A 84739B 84810 84810 8481926010 8481926010 8481926020 8481926020 84820 84820 84931B 84931B 88610M 89550 89551 8966726090 8966826090 9010906296 9010906296 9016430003 9016430003 9016440100 9165140614 9165160614 9165160614 9331514014 9331915010 9351016012 9351016012 9354016012 9354016012 9354054014 9359016014
Part # Description Qty Price
28520 - TIMER ASSY, PREHEATING
28520-54870

5L..LH154,172,174..LHD..4D..GEN

ECUADOR OR MIDDLE AMERICA 6 COUNTRIES SPEC

 1
28520 - TIMER ASSY, PREHEATING
28520-54870

5L..LH154,172,174..LHD..4D..GEN

ECUADOR OR MIDDLE AMERICA 6 COUNTRIES SPEC

 1
28521 - TIMER, PREHEATING
28521-54620

5L..LH154,172,174..LHD..4D..GEN

ECUADOR OR MIDDLE AMERICA 6 COUNTRIES SPEC

 1
28521 - TIMER, PREHEATING
28521-54620

5L..LH154,172,174..LHD..4D..GEN

ECUADOR OR MIDDLE AMERICA 6 COUNTRIES SPEC

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95J01

LH125..ARL;LH10#,11#,RZH10#,11#,125

 2
84550 - SWITCH ASSY, PARKING BRAKE
84550-20030

RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD

 1
88610M - SWITCH ASSY, COOLER CONTROL
88610-26010

LH154,RZH155..GEN

 1
Common parts
84819-26010
84819-26020
89667-26090
89668-26090
90109-06296
90164-30003
90164-40100
91651-40614
91651-60614
93315-14014
93319-15010
93510-16012
93540-16012
93540-54014
93590-16014

ILLUST NO. 7 OF 9(0008- )LH154,RZH155

Click highlighted areas on diagram

ROOF, FRONT FLOOR RELAY & SWITCHES

diagram 84730R 84732A 85336 85530 85530D 85530D 85530D 85535B
Part # Description Qty Price
85336 - SWITCH ASSY, RESERVE TANK LEVEL WARNING
85335-54190

LH10#,11#,125

 1
85335-75010

RZH10#,11#,125

 1
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-26090

LH154

 2
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-26090

LH154

 2
85530D - SOCKET ASSY, POWER OUTLET, NO.2
85530-26090

LH154

 2
