LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

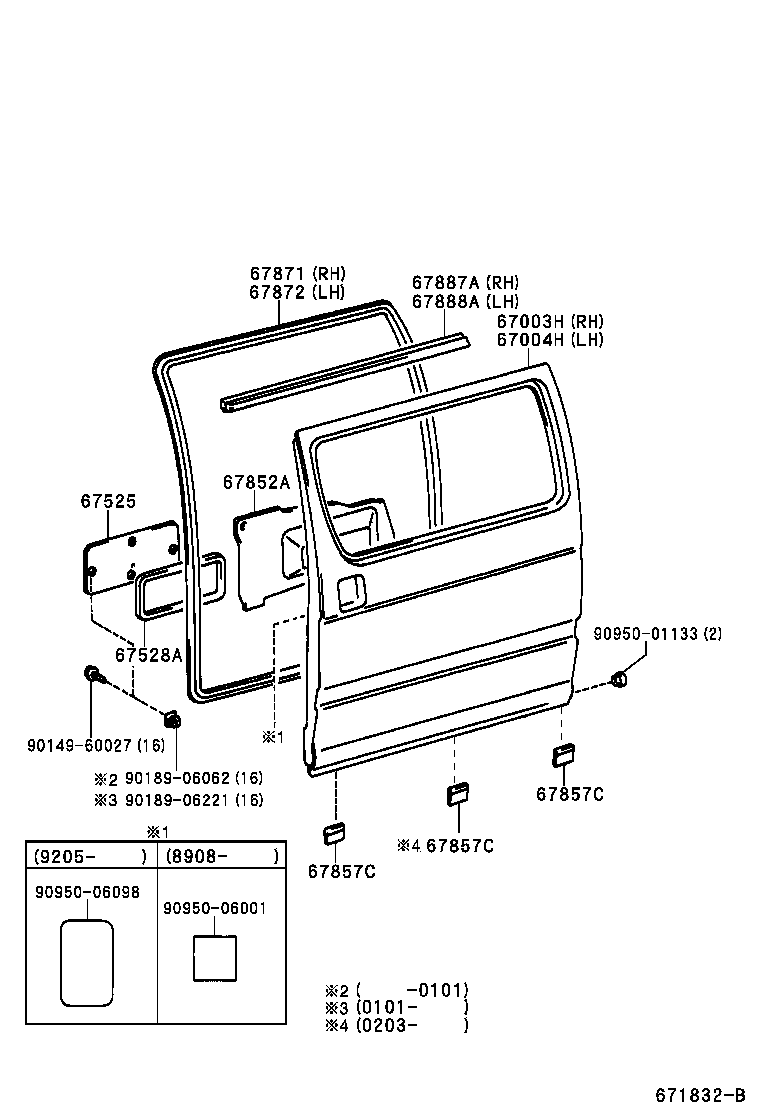

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 67003H 67004H 67525 67528A 67852A 67857C 67857C 67857C 67871 67872 67887A 67888A 9014960027 9018906062 9018906221 9095001133 9095006001 9095006098
Part # Description Qty Price
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-95J00

LH10#,11#,RZH102,104,11#..4D..GEN

 2
67525-95J00

LH10#,11#,125,RZH10#,11#,125

DUST PROOFING

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-95J00

LH10#,11#,RZH102,104,11#..4D..GEN

 2
67528-95J00

LH10#,11#,125,RZH10#,11#,125

DUST PROOFING

 1
Common parts
90149-60027
90189-06062
90189-06221
90950-01133
90950-06001
90950-06098

ILLUST NO. 1 OF 2(8908- )DX,GL,STD

Click highlighted areas on diagram

diagram 67603 67603 67604 67604 67604B 6777116080 67772F
Part # Description Qty Price
67772F - CAP, REAR DOOR TRIM RETAINER
67772-26010

LH154

TYPE A:REFER ILLUST.

 10
Common parts
67771-16080
