LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )LH154,RZH155

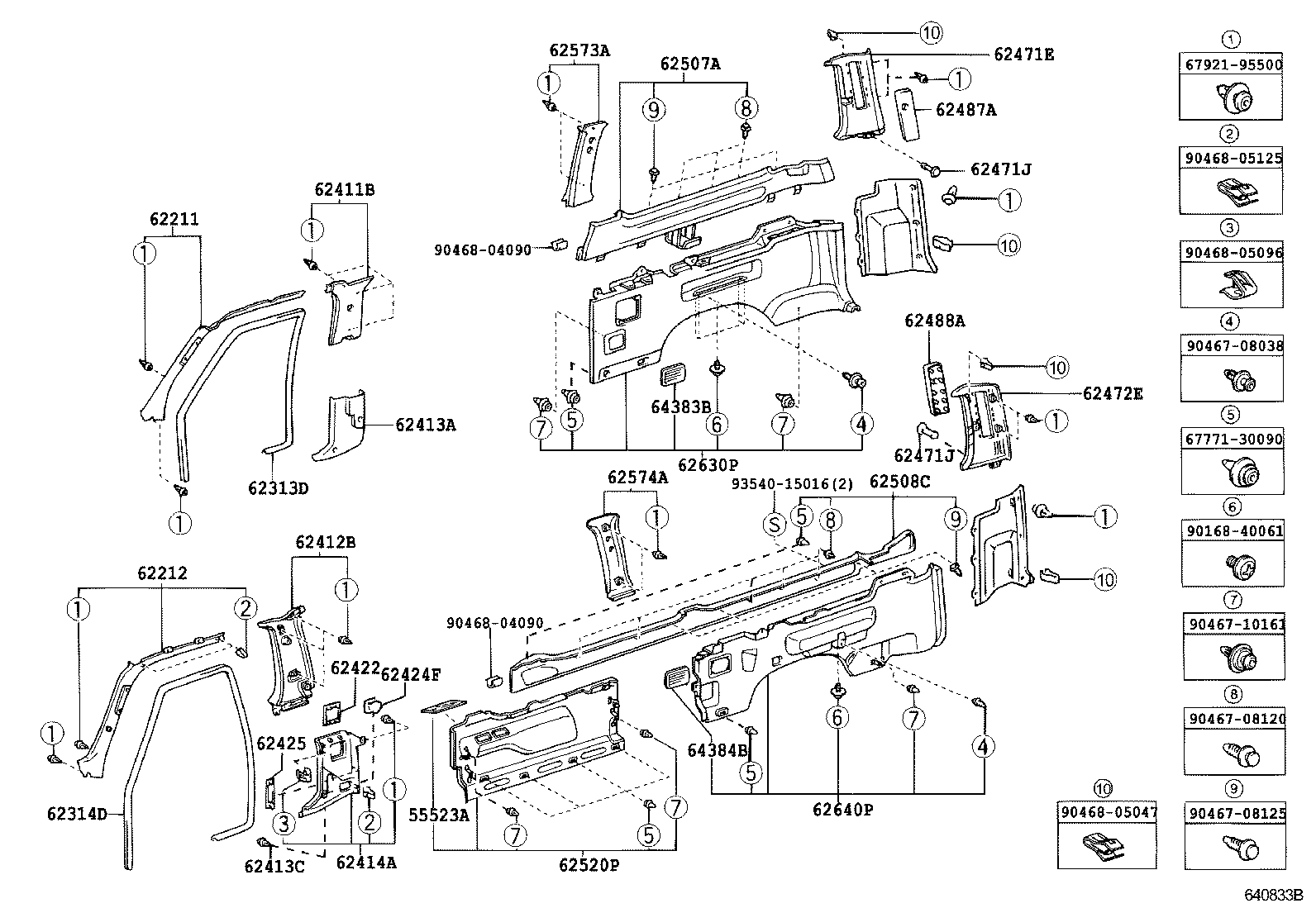

Click highlighted areas on diagram

diagram 55523A 62211 62212 62313D 62314D 62411B 62412B 62413A 62413C 62414A 62422 62424F 62425 62471E 62471J 62471J 62472E 62487A 62488A 62507A 62508C 62520P 62573A 62574A 62630P 62640P 64383B 64384B 6777130090 6792195500 9016840061 9046708038 9046708120 9046708125 9046710161 9046804090 9046804090 9046805047 9046805096 9046805125 9354015016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-95J0703

LH10#,11#,125,RZH10#,11#,125

GRAY,TRIM1#

 1
62211-26120B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-95J0703

LH10#,11#,125,RZH10#,11#,125

GRAY,TRIM1#

 1
62212-95J08B3

LH154,RZH155..11S,12S

LT.BLUISH GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-95J0103

LH10#,11#,125,RZH10#,11#,125

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-95J0103

LH10#,11#,125,RZH10#,11#,125

GRAY,TRIM1#

 1
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-26140B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-26120B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-26240B0

LH154..11S

BLUISH GRAY,TRIM1#

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-26230B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-26210B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62487A - COVER, ROOF SIDE INNER GARNISH, RH
62487-26010B0

LH154,RZH155..(11S,12S)..GEN

LT. BLUISH GRAY,TRIM1#

 1
62488A - COVER, ROOF SIDE INNER GARNISH, LH
62488-26010B0

LH154,RZH155..(11S,12S)..GEN

LT. BLUISH GRAY,TRIM1#

 1
62507A - PANEL SUB-ASSY, QUARTER TRIM, RH
62507-26200B0

LH154,RZH155..(11S,12S)..GEN

BL. GRAY,TRIM1#

 1
62508C - PANEL SUB-ASSY, QUARTER TRIM, LH
62508-26160B0

LH154,RZH155..(11S,12S)..GEN

BL. GRAY,TRIM1#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-26220B0

LH154..11S

BLUISH GRAY,TRIM1#

 1
62573A - GARNISH, QUARTER LOCK PILLAR, RH
62573-26240B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62574A - GARNISH, QUARTER LOCK PILLAR, LH
62574-26220B0

LH154,RZH155..11S,12S

LT. BLUISH GRAY,TRIM1#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-2F580B0

LH154,RZH155..11S,12S

BLUISH GRAY,TRIM1#

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-2F410B1

LH154,RZH155..11S,12S

BLUISH GRAY,TRIM1#

 1
64383B - GRILLE, REAR SPEAKER, RH
64383-26020B0

LH154,RZH155..11S,12S

BLUISH GRAY,TRIM1#

 1
64384B - GRILLE, REAR SPEAKER, LH
64384-26020B0

LH154,RZH155..11S,12S

BLUISH GRAY,TRIM1#

 1
Common parts
67771-30090
67921-95500
90168-40061
90467-08038
90467-08120
90467-08125
90467-10161
90468-04090
90468-05047
90468-05096
90468-05125
93540-15016
