LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8908- )SRF

Click highlighted areas on diagram

diagram 63071 63071 63102A 63102A 63105E 63105E 63105E 63105E 63111 63111 63122A 63141G 63141G 63142 63142 63142 63142 63231 63231 63669 63669 9014960027 9014960027 9014960027 9014960027 9014960027 9014960027 9014960027 9014960027 9018306012 9018306012 9018306020 9018306020 9018306020 9018306020 9018306028 9018306028 9018905019 9018905019
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26210

LH154,RZH155

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-26210

LH154,RZH155

 1
63122A - REINFORCEMENT, ROOF PANEL, FRONT
63122-95J01

LH10#,11#,RZH10#,11#..SRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J0308

LH10#,11#,RZH10#,11#..SRF

IVORY,TRIM1#

 2
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J0308

LH10#,11#,RZH10#,11#..SRF

IVORY,TRIM1#

 2
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J0308

LH10#,11#,RZH10#,11#..SRF

IVORY,TRIM1#

 2
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95J0308

LH10#,11#,RZH10#,11#..SRF

IVORY,TRIM1#

 2
63231 - BRACKET, ROOM LAMP
63231-26080

LH154,RZH155..GEN

 1
63231 - BRACKET, ROOM LAMP
63231-26080

LH154,RZH155..GEN

 1
Common parts
90149-60027
90183-06012
90183-06020
90183-06028
90189-05019

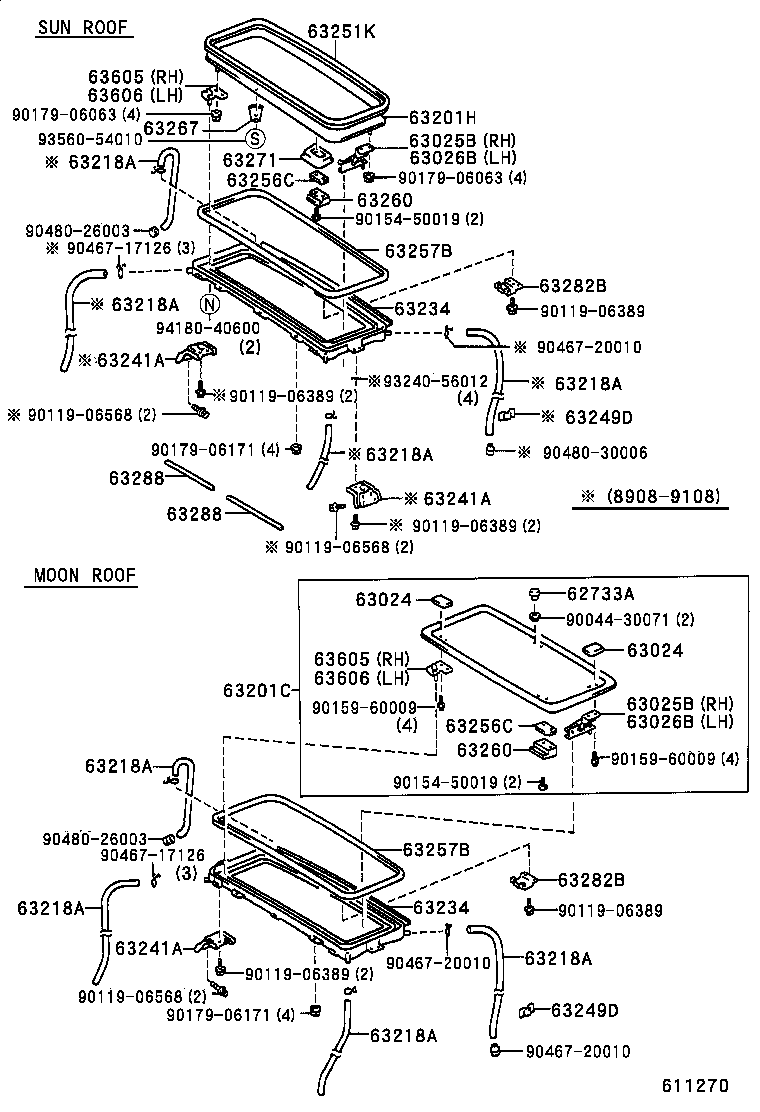

ILLUST NO. 2 OF 2(8908- )

Click highlighted areas on diagram

diagram 62733A 63024 63024 63025B 63025B 63026B 63026B 63201C 63201H 63218A 63218A 63218A 63218A 63218A 63218A 63218A 63218A 63234 63234 63241A 63241A 63241A 63249D 63249D 63251K 63256C 63256C 63257B 63257B 63260 63260 63267 63271 63282B 63282B 63288 63288 63605 63605 63606 63606 9004430071 9011906389 9011906389 9011906389 9011906389 9011906389 9011906568 9011906568 9011906568 9015450019 9015450019 9015960009 9015960009 9017906063 9017906063 9017906171 9017906171 9046717126 9046717126 9046720010 9046720010 9046720010 9048026003 9048026003 9048030006 9324056012 9356054010 9418040600
Part # Description Qty Price
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63249-95J05

LH10#,11#,RZH10#,11#..SRF

L=2050

 1
63249-95J04

LH10#,11#,RZH10#,11#..SRF

*H,L=1200

 2
63249-95J10

LH10#,11#,RZH10#,11#..SRF

L=1750

 1
63234 - PROTECTOR, SLIDE ROOF HOUSING
63234-95J02

LH10#,11#,RZH10#,11#..SRF

 1
63234 - PROTECTOR, SLIDE ROOF HOUSING
63234-95J02

LH10#,11#,RZH10#,11#..SRF

 1
63249D - SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE
63249-95700

LH10#,11#,RZH10#,11#..SRF

 1
63249D - SUPPORT, SLIDE ROOF RAIN CHANNEL HOSE
63249-95700

LH10#,11#,RZH10#,11#..SRF

 1
63257B - SEAL, SLIDING ROOF
63257-95J02

LH10#,11#,RZH10#,11#..SRF

 1
63257B - SEAL, SLIDING ROOF
63257-95J02

LH10#,11#,RZH10#,11#..SRF

 1
63260 - HANDLE ASSY, REMOVABLE ROOF LOCK
63260-95J03

LH10#,11#,RZH10#,11#..SRF

 1
63260 - HANDLE ASSY, REMOVABLE ROOF LOCK
63260-95J03

LH10#,11#,RZH10#,11#..SRF

 1
63282B - STRIKER, TILT ROOF LOCK
63282-95J01

LH10#,11#,RZH10#,11#..SRF

 1
63282B - STRIKER, TILT ROOF LOCK
63282-95J01

LH10#,11#,RZH10#,11#..SRF

 1
Common parts
90044-30071
90119-06389
90119-06568
90154-50019
90159-60009
90179-06063
90179-06171
90467-17126
90467-20010
90480-26003
90480-30006
93240-56012
93560-54010
94180-40600
