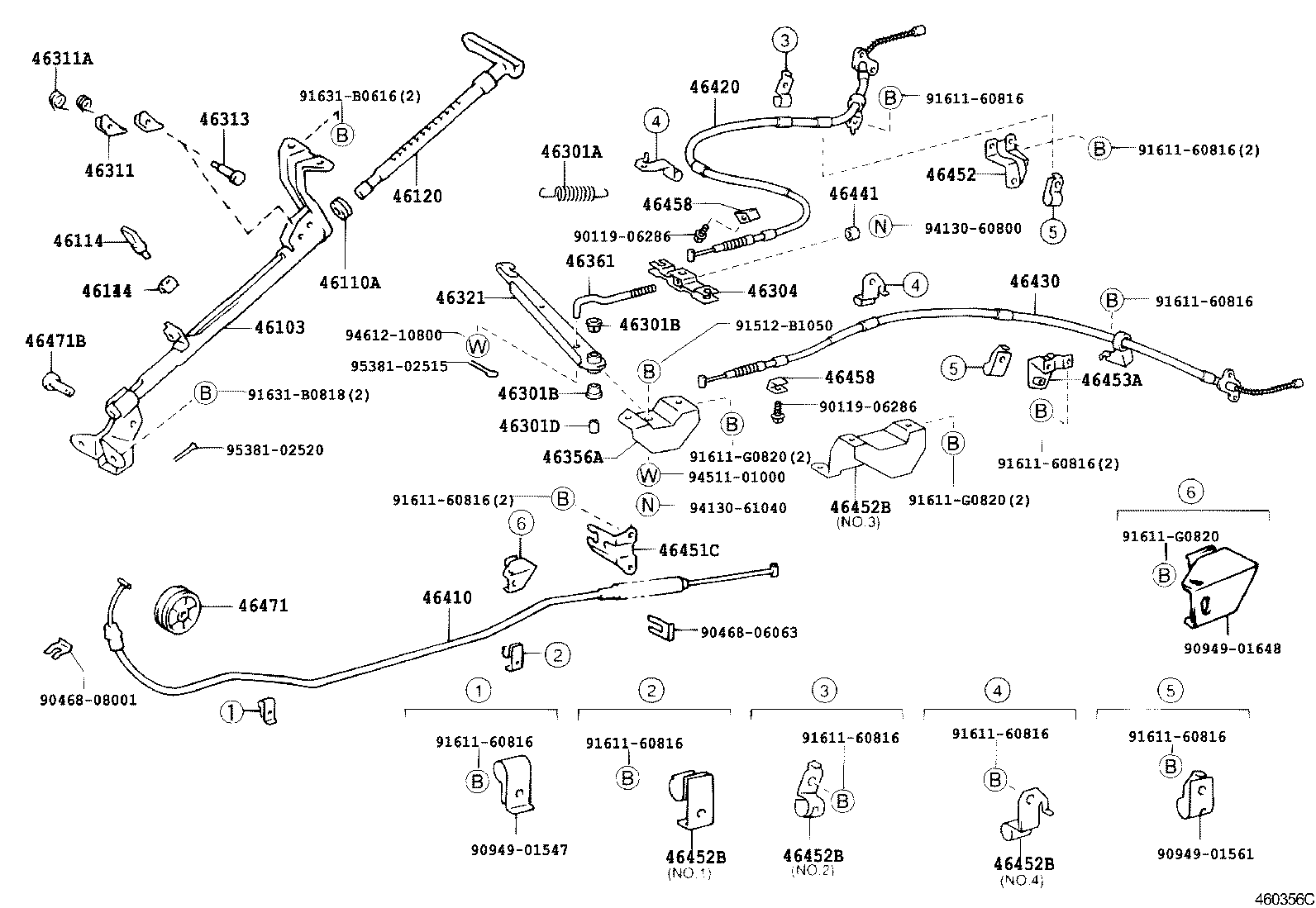

LH154L-BFMGS (2000)
Toyota Hiace Van,Commuter
(8908- )LH102,104,105,11#,164,166,17#,RZH10#,11#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26170 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-11195 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46120 - PLUNGER ASSY, PARKING BRAKE | ||||
| 46120-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-30020 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-19008 |
LH154,RZH155..GEN |
1 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46304B - BUSH(FOR PARKING BRAKE EQUALIZER) | ||||
| 90385-12029 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46304C - PIN(FOR PARKING BRAKE EQUALIZER) | ||||
| 90240-08028 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26130 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46321-26190 |
LH154,RZH155..GEN |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-26050 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-26050 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26320 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26600 |
LH154,RZH155..GEN |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
LH154,RZH155..GEN |
1 | ||
| 46441-30030 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
LH154,RZH155..GEN |
1 | ||
| 46441-30030 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46452-26100 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-26110 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26110 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 90949-01548 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46452-26200 |
LH154,RZH155..GEN NO.3 |
1 | ||
| 90949-01C49 |
LH154,RZH155..GEN NO.4 |
2 | ||
| 46452-26130 |
LH154,RZH155..GEN NO.2 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LH154,RZH155 |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| Common parts | ||||
| 90109-08102 | ||||
| 90119-06286 | ||||
| 90179-08204 | ||||
| 90206-08016 | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01547 | ||||
| 90949-01561 | ||||
| 90949-01648 | ||||
| 91512-B1050 | ||||
| 91611-60816 | ||||
| 91611-G0820 | ||||
| 91631-B0616 | ||||
| 91631-B0818 | ||||
| 91651-60616 | ||||
| 91651-60816 | ||||
| 94130-60600 | ||||
| 94130-61040 | ||||
| 94511-01000 | ||||
| 94531-01000 | ||||
| 95381-02520 | ||||
(0008- )LH154,RZH155
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-26170 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-11195 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46120 - PLUNGER ASSY, PARKING BRAKE | ||||
| 46120-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-30020 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46301A - SPRING, TENSION(FOR INTERMEDIATE LEVER) | ||||
| 90506-19008 |
LH154,RZH155..GEN |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-28010 |
LH154,RZH155..GEN |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46313 - PIN, PARKING BRAKE PAWL | ||||
| 46313-40010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-26130 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46321-26190 |
LH154,RZH155..GEN |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-26120 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-26070 |
LH154,RZH155..GEN |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-26320 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-26600 |
LH154,RZH155..GEN |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-26430 |
LH154,RZH155..GEN |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
LH154,RZH155..GEN |
1 | ||
| 46441-30030 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
2 | ||
| 46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 | ||||
| 46451-26110 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-26110 |
LH102,104,105,11#,RZH10#,11#..LHD |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 90949-01548 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46452-26200 |
LH154,RZH155..GEN NO.3 |
1 | ||
| 90949-01C49 |
LH154,RZH155..GEN NO.4 |
2 | ||
| 46452-26130 |
LH154,RZH155..GEN NO.2 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 90949-01548 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46452-26200 |
LH154,RZH155..GEN NO.3 |
1 | ||
| 90949-01C49 |
LH154,RZH155..GEN NO.4 |
2 | ||
| 46452-26130 |
LH154,RZH155..GEN NO.2 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 90949-01548 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46452-26200 |
LH154,RZH155..GEN NO.3 |
1 | ||
| 90949-01C49 |
LH154,RZH155..GEN NO.4 |
2 | ||
| 46452-26130 |
LH154,RZH155..GEN NO.2 |
1 | ||
| 46452B - BRACKET, CABLE SUPPORT, NO.2 | ||||
| 90949-01548 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD |
1 | ||
| 46452-26200 |
LH154,RZH155..GEN NO.3 |
1 | ||
| 90949-01C49 |
LH154,RZH155..GEN NO.4 |
2 | ||
| 46452-26130 |
LH154,RZH155..GEN NO.2 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LH154,RZH155 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
LH154,RZH155 |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
RZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD |
1 | ||
| Common parts | ||||
| 90119-06286 | ||||
| 90468-06063 | ||||
| 90468-08001 | ||||
| 90949-01547 | ||||
| 90949-01561 | ||||
| 90949-01648 | ||||
| 91512-B1050 | ||||
| 91611-60816 | ||||
| 91611-G0820 | ||||
| 91631-B0616 | ||||
| 91631-B0818 | ||||
| 94130-60800 | ||||
| 94130-61040 | ||||
| 94511-01000 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| 95381-02520 | ||||
