LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

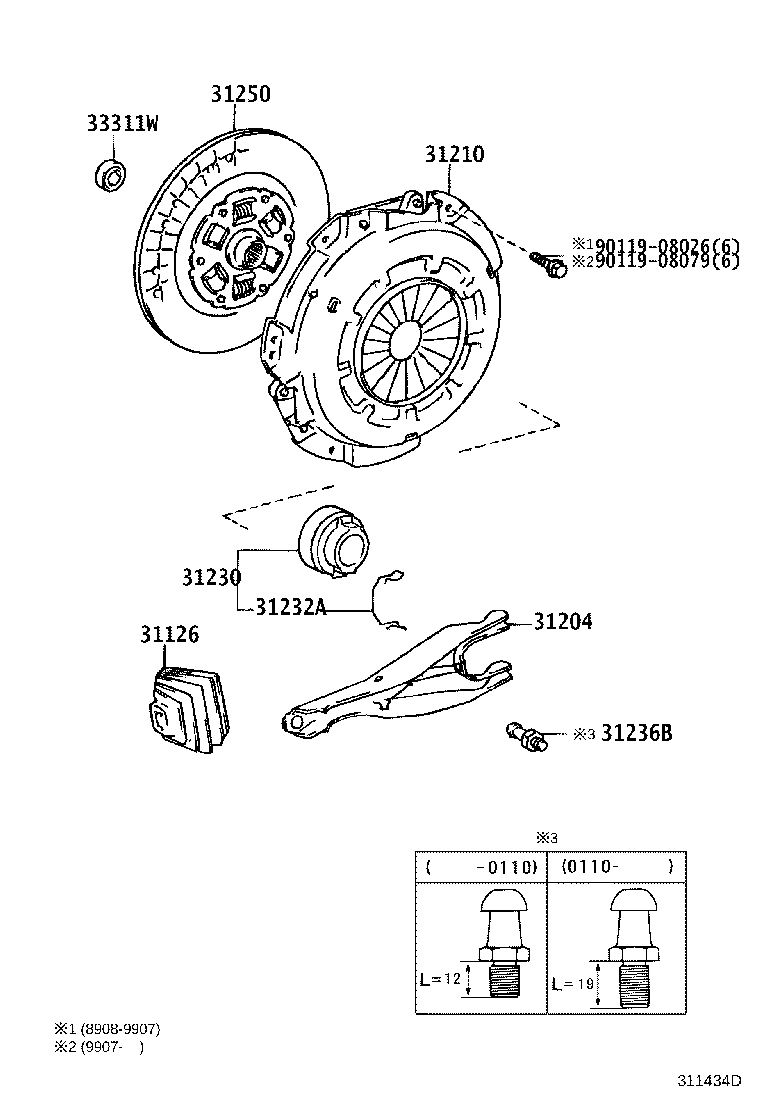

ILLUST NO. 1 OF 2(8908- )4F,5F

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31236B 31250 33311W 9011908026 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F

 1
31210 - COVER ASSY, CLUTCH
31210-35122

LH10#,11#,154,16#,17#,184..5F

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35090

RZH10#,11#,125,135,153..4F,5F

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35030

LH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..5F

TYPE B:REFER TO ILLUSTRATION

 1
31250 - DISC ASSY, CLUTCH
31250-35220

LH10#,11#..GEN

 1
31250-26182

LH10#,11#,154,16#,17#,184..5F

 1
31250-26160

RZH103..5F..(GL,SGL,STD);RZH102,104,105,11#,125,135,153..4F,5F

 1
31250-26200

RZH10#,11#,125,135,15#..5F

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH10#,11#,125,RZH10#,11#,125..4F,5F

 1
Common parts
90119-08026
90119-08079
