LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,3L,5L

Click highlighted areas on diagram

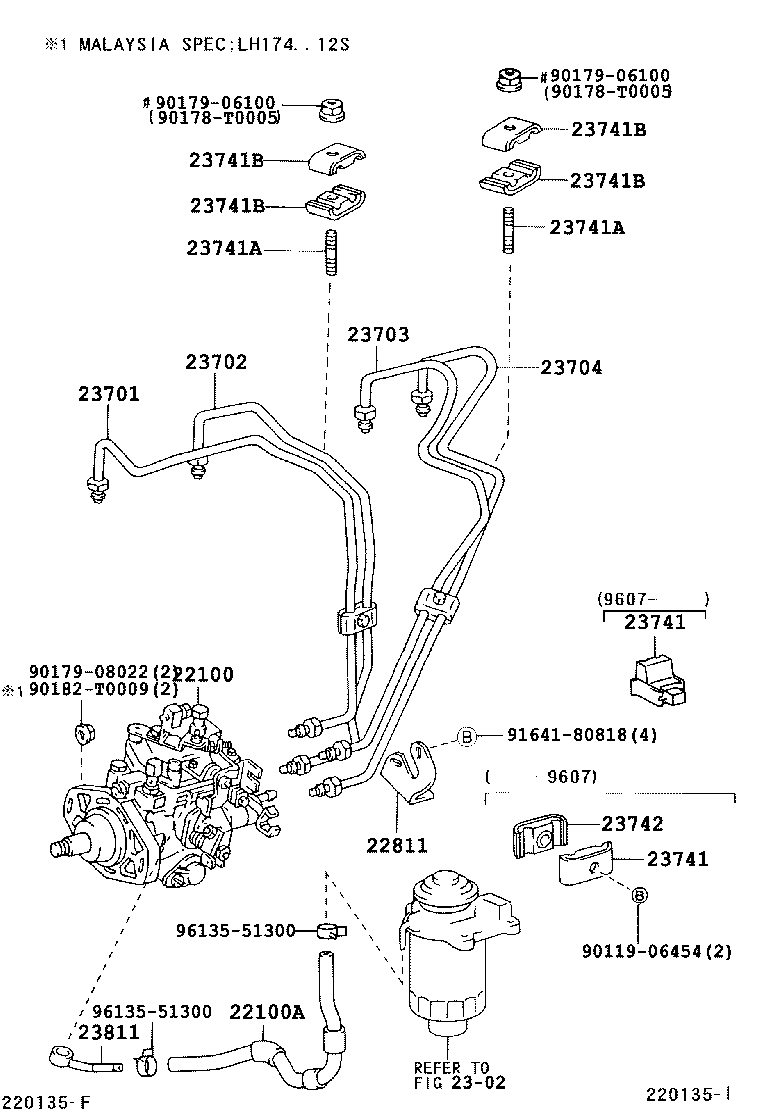

diagram 22100 22100A 22811 2302 23701 23702 23703 23704 23741 23741 23741A 23741A 23741B 23741B 23741B 23741B 23742 23811 9011906454 90178T0005 90178T0005 9017906100 9017906100 9017908022 90182T0009 9164180818 9613551300 9613551300
Part # Description Qty Price
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-54140

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-54140

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-54100

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-54100

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 1
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06095

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 2
23741B - CLAMP, INJECTION PIPE
23741-56010

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 4
23741B - CLAMP, INJECTION PIPE
23741-56010

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,166,176,184

 4
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-54172

5L..LH172..GL;5L..LH172..HRF;5L..LH172..4D..06S;5L..LH172..ARL,GCC;5L..LH172..5D..GEN;2L,5L..LH114,172..LHD..4D;2L,5L..LH112,154,174,184..(03S,06S,10S,11S,14S,15S)..(ARL,GCC,GEN)

 1
Common parts
90119-06454
90178-T0005
90179-06100
90179-08022
90182-T0009
91641-80818
96135-51300
Linked diagrams
2302
