LH154L-BFMGS (2000)

Toyota Hiace Van,Commuter

Production Aug 2000 - Jan 2005
Engine 5L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8908- )2L,3L,5L#

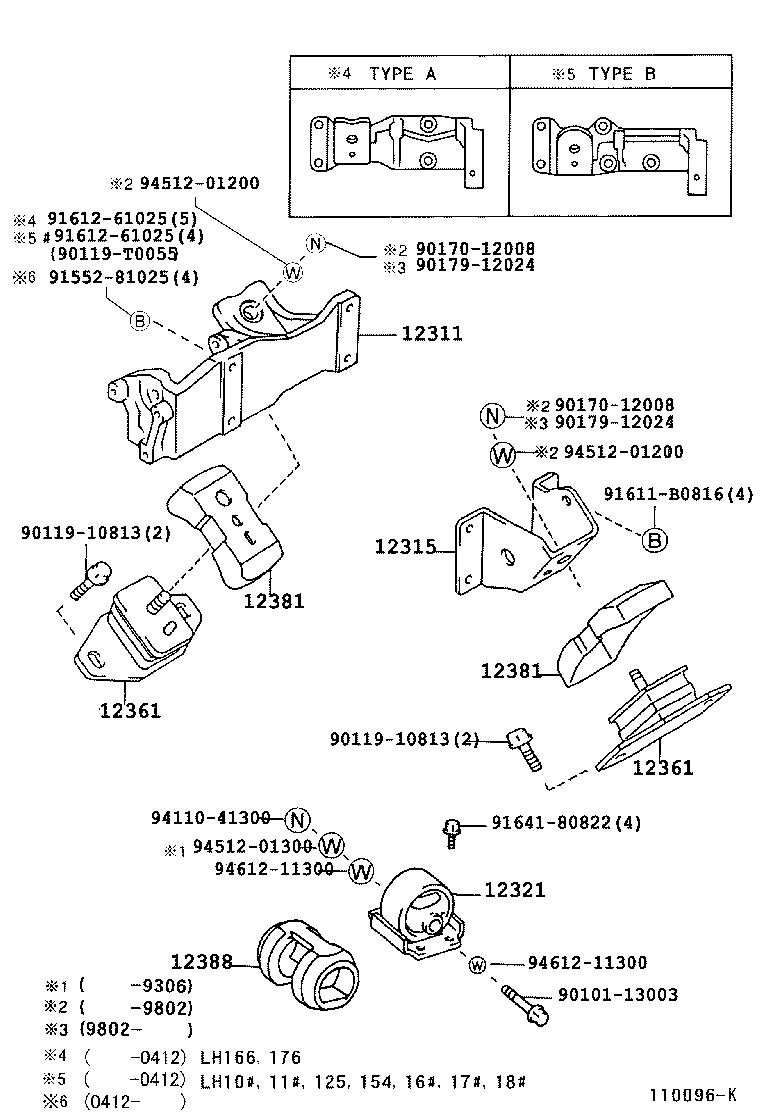

Click highlighted areas on diagram

diagram 12311 12315 12321 12361 12361 12381 12381 12388 9010113003 9011910813 9011910813 90119T0055 9017012008 9017012008 9017912024 9017912024 9155281025 91611B0816 9161261025 9161261025 9164180822 9411041300 9451201200 9451201200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-54140

5L..LH174..GL;5L..LH172..RHD;2L,3L,5L..LH10#,11#,125,184

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
90101-13003
90119-10813
90119-T0055
90170-12008
90179-12024
91552-81025
91611-B0816
91612-61025
91641-80822
94110-41300
94512-01200
94512-01300
94612-11300
