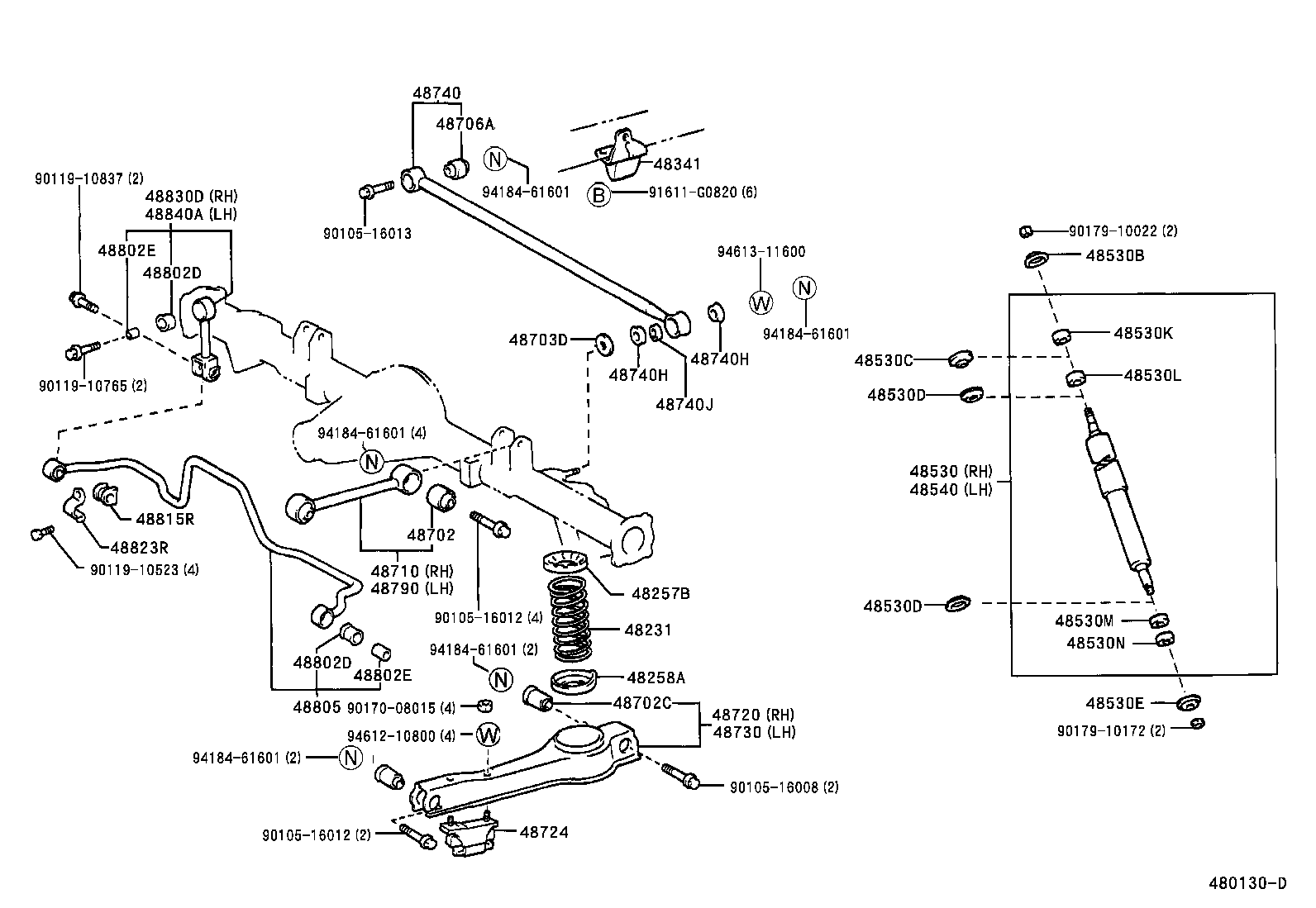

LH115L-BRMRS (1995)
Toyota Hiace Van,Commuter
(9611- )LH154,RZH135,15#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-26150 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;LH174,RZH102..03S,06S,09S,10S;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH103,105,113,115..(GCC,GEN)..CBR;RZH113..4D..(03S,06S,09S)..GEN..EFI;LH10#,11#,125,184,RZH104,112,114..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN) |
2 | ||
| 48341-26150 |
RZH112..5D;RZH112..03S;LH10#,11#,162,164,172,174,184,RZH10#,113,114,115..CIS,GCC,GEN |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-80399 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 48531-80399 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 48531-80545 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) MARK 48531-26370 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 90948-03012 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 90948-03004 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 90948-03015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03015 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03015 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 90948-03015 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03015 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03011 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 90948-03011 |
RZH112..5D;RZH112..03S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-80399 |
LH10#,11#,RZH10#,11#..GEN |
1 | ||
| 48531-80399 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
1 | ||
| 48531-80545 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) MARK 48531-26370 |
1 | ||
| Common parts | ||||
| 90105-16008 | ||||
| 90105-16012 | ||||
| 90105-16013 | ||||
| 90119-10523 | ||||
| 90119-10765 | ||||
| 90119-10837 | ||||
| 90170-08015 | ||||
| 90179-10022 | ||||
| 90179-10172 | ||||
| 91611-G0820 | ||||
| 94184-61601 | ||||
| 94612-10800 | ||||
| 94613-11600 | ||||
ILLUST NO. 2 OF 2(9508- )LH174,RZH113..03S,06S,10S,15S..CBR,DSL ; (9508- )LH10#,11#,125,16#,17
5-LEAF(TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-14007 |
LH10#,11#,RZH102,104,11#..GEN |
4 | ||
| 90389-14007 |
LH10#,11#,RZH102,104,11#..GEN |
4 | ||
| 90389-14007 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) |
4 | ||
| 90389-14007 |
LH172..03S..GL;RZH105,115..STD..CIS;RZH103..RHD..GEN..EFI;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH174,RZH102,112..SRF..(03S,06S,09S,10S);LH10#,11#,125,184,RZH103,104,105,113,114,115..(03S,06S,09S,12S,15S)..(CIS,GCC,GEN)..(CBR,DSL) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48201-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48212-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48212-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48212-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48212-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48202-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48202-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48202-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48202-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48203-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48203-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48204-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48204-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48204-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN |
2 | ||
| 48215-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215-26660 |
LH10#,11#,172,174,184,RZH10#,11#..CIS,GCC,GEN NEW ZEALAND SPEC |
2 | ||
| 48215-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48215-26660 |
LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48210-26660 |
LH10#,11#,RZH102,104,11#..GEN 5-LEAF |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-26720 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48247-26720 |
RZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48247-26280 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48252-26070 |
LH10#,11#,125,RZH10#,11#,125 |
6 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-26650 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48253-26650 |
LH125,RZH125;LH10#,11#,RZH102,104,11#..GEN |
2 | ||
| 48253-26650 |
RZH112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,184..(03S,15S)..GL;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH113,174,RZH102..(03S,06S,09S,10S)..(CIS,GCC,GEN);LH10#,112,114,115,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48253-26650 |
RZH112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,184..(03S,15S)..GL;RZH113..4D..STD..(ARL,GEN)..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;LH113,174,RZH102..(03S,06S,09S,10S)..(CIS,GCC,GEN);LH10#,112,114,115,125,RZH104,114,125..03S,06S,09S,12S,14S,15S |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48299-28010 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 48299-28010 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
