Toyota Hiace van,commuter LH113 OIL COOLER & TUBE (ATM)

LH113R-RBPRSQ (1989)

Toyota Hiace Van,Commuter

Production Aug 1989 - Aug 2000

Engine 3L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

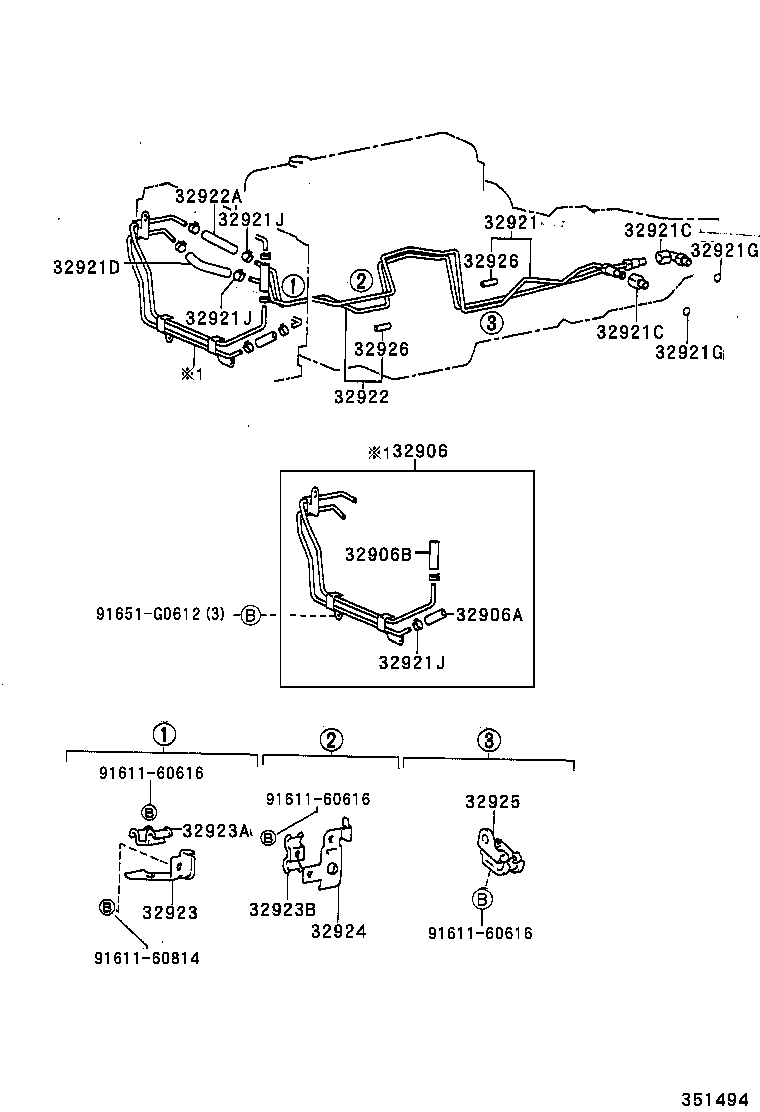

(9808- )LH103,113,125,162,172,184..4FC

Click highlighted areas on diagram

A45DL

Part #	Description	Period	Qty
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26090	RZH103,113,114..4FC	08/1989 - 10/1989	1
32906-26110	LH103,113..4FC	08/1989 - 10/1989	1
32907-26040	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32906-26150	LH103,113,RZH103,113..4FC	08/1993 - 08/1998	1
32907-26040	LH103,113,125..4FC	07/1999 - 08/2000	1
32906-26110	LH103,113,RZH103,113,114..4FC	10/1989 - 08/1993	1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-17151	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
90445-17151	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17156	LH103,113,RZH103,113..4FC	01/1998 - 08/1998	1
90445-17093	LH103,113,RZH103,113,114..4FC	08/1989 - 01/1998	1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100	LH103,113,RZH103,113,114..4FC	08/1989 - 08/1998	1
90445-17125	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17125	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26260	LH103,113,125..4FC	08/1998 - 07/1999	1
32921-26260	LH103,113,125..4FC	07/1999 - 08/2000	1
32921-26091	LH103,113..4FC	08/1989 - 06/1998	1
32921-26092	LH103,113..4FC	06/1998 - 08/1998	1
32921-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17102	LH103,113..4FC	08/1989 - 06/1998	1
32941-28190	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32942-26110	LH103,113..4FC	06/1998 - 08/1998	1
32941-26160	LH103,113,125..4FC	07/1999 - 08/2000	1
32941-26160	LH103,113,125..4FC	08/1998 - 07/1999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26091	LH103,113..4FC	08/1989 - 06/1998	1
32922-26092	LH103,113..4FC	06/1998 - 08/1998	1
32922-26250	LH103,113,125..4FC	08/1998 - 07/1999	1
32922-26250	LH103,113,125..4FC	07/1999 - 08/2000	1
32922-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17110	LH103,113..4FC	08/1989 - 06/1998	1
32942-26110	LH103,113,125..4FC	07/1999 - 08/2000	1
32942-26110	LH103,113,125..4FC	08/1998 - 07/1999	1
90445-17103	RZH103,113,125..4FC	10/1990 - 07/1999	1
90445-17107	RZH103,113,114..4FC	08/1989 - 10/1990	1
32941-26160	LH103,113..4FC	06/1998 - 08/1998	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32925-26091	LH103,113,125..4FC	08/1998 - 07/1999	1
32925-26090	LH103,113..4FC	06/1998 - 08/1998	1
32923-26050	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32923-26070	LH103,113..4FC	08/1989 - 06/1998	1
32925-26091	LH103,113,125..4FC	07/1999 - 08/2000	1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12079	RZH103,113,125..4FC	06/1998 - 07/1999	1
90462-12079	RZH103,113,114..4FC	08/1989 - 04/1998	1
90462-12079	LH103,113,RZH103,113..4FC	04/1998 - 06/1998	1
90949-01B25	LH103,113,125..4FC	06/1998 - 07/1999	1
90949-01B25	LH103,113,125..4FC	07/1999 - 08/2000	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
90462-12079	LH103,113,125..4FC	08/1989 - 07/1999	1
90462-12079	LH103,113,125..4FC	07/1999 - 08/2000	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-26050	LH103,113..4FC	08/1989 - 08/1998	1
32924-26120	LH103,113,125..4FC	08/1998 - 07/1999	1
32924-26120	LH103,113,125..4FC	07/1999 - 08/2000	1
32925 - CLAMP, OIL COOLER TUBE, NO.3
32909-26130	LH103,113,125..4FC	08/1998 - 07/1999	1
32909-26130	LH103,113,125..4FC	07/1999 - 08/2000	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
Common parts
91611-60616
91611-60814
91651-G0612

(8908- )RZH103,113,114,125..4FC

Click highlighted areas on diagram

A45DE,A45DL

Part #	Description	Period	Qty
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26090	RZH103,113,114..4FC	08/1989 - 10/1989	1
32906-26110	LH103,113..4FC	08/1989 - 10/1989	1
32907-26040	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32906-26150	LH103,113,RZH103,113..4FC	08/1993 - 08/1998	1
32907-26040	LH103,113,125..4FC	07/1999 - 08/2000	1
32906-26110	LH103,113,RZH103,113,114..4FC	10/1989 - 08/1993	1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-17151	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
90445-17151	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17156	LH103,113,RZH103,113..4FC	01/1998 - 08/1998	1
90445-17093	LH103,113,RZH103,113,114..4FC	08/1989 - 01/1998	1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100	LH103,113,RZH103,113,114..4FC	08/1989 - 08/1998	1
90445-17125	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17125	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26260	LH103,113,125..4FC	08/1998 - 07/1999	1
32921-26260	LH103,113,125..4FC	07/1999 - 08/2000	1
32921-26091	LH103,113..4FC	08/1989 - 06/1998	1
32921-26092	LH103,113..4FC	06/1998 - 08/1998	1
32921-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17102	LH103,113..4FC	08/1989 - 06/1998	1
32941-28190	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32942-26110	LH103,113..4FC	06/1998 - 08/1998	1
32941-26160	LH103,113,125..4FC	07/1999 - 08/2000	1
32941-26160	LH103,113,125..4FC	08/1998 - 07/1999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26091	LH103,113..4FC	08/1989 - 06/1998	1
32922-26092	LH103,113..4FC	06/1998 - 08/1998	1
32922-26250	LH103,113,125..4FC	08/1998 - 07/1999	1
32922-26250	LH103,113,125..4FC	07/1999 - 08/2000	1
32922-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17110	LH103,113..4FC	08/1989 - 06/1998	1
32942-26110	LH103,113,125..4FC	07/1999 - 08/2000	1
32942-26110	LH103,113,125..4FC	08/1998 - 07/1999	1
90445-17103	RZH103,113,125..4FC	10/1990 - 07/1999	1
90445-17107	RZH103,113,114..4FC	08/1989 - 10/1990	1
32941-26160	LH103,113..4FC	06/1998 - 08/1998	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32925-26091	LH103,113,125..4FC	08/1998 - 07/1999	1
32925-26090	LH103,113..4FC	06/1998 - 08/1998	1
32923-26050	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32923-26070	LH103,113..4FC	08/1989 - 06/1998	1
32925-26091	LH103,113,125..4FC	07/1999 - 08/2000	1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12079	RZH103,113,125..4FC	06/1998 - 07/1999	1
90462-12079	RZH103,113,114..4FC	08/1989 - 04/1998	1
90462-12079	LH103,113,RZH103,113..4FC	04/1998 - 06/1998	1
90949-01B25	LH103,113,125..4FC	06/1998 - 07/1999	1
90949-01B25	LH103,113,125..4FC	07/1999 - 08/2000	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26030	RZH103,113,114..4FC NO.1	08/1989 - 08/1995	1
32909-26040	RZH103,113,114..4FC NO.2	08/1989 - 08/1995	1
90462-12079	LH103,113..4FC	08/1989 - 08/1998	1
32909-26041	RZH103,113,125..4FC NO.2	08/1995 - 07/1999	1
32909-26031	RZH103,113,125..4FC NO.1	08/1995 - 07/1999	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26030	RZH103,113,114..4FC NO.1	08/1989 - 08/1995	1
32909-26040	RZH103,113,114..4FC NO.2	08/1989 - 08/1995	1
90462-12079	LH103,113..4FC	08/1989 - 08/1998	1
32909-26041	RZH103,113,125..4FC NO.2	08/1995 - 07/1999	1
32909-26031	RZH103,113,125..4FC NO.1	08/1995 - 07/1999	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
Common parts
91611-60616
91611-60812
91611-61014
91651-G0612

(8908-9808)LH103,113..4FC

Click highlighted areas on diagram

A45DL

Part #	Description	Period	Qty
32906 - TUBE SUB-ASSY, OIL COOLER
32906-26090	RZH103,113,114..4FC	08/1989 - 10/1989	1
32906-26110	LH103,113..4FC	08/1989 - 10/1989	1
32907-26040	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32906-26150	LH103,113,RZH103,113..4FC	08/1993 - 08/1998	1
32907-26040	LH103,113,125..4FC	07/1999 - 08/2000	1
32906-26110	LH103,113,RZH103,113,114..4FC	10/1989 - 08/1993	1
32906A - HOSE, OIL COOLER TUBE(FOR INLET)
90445-17151	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
90445-17151	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17156	LH103,113,RZH103,113..4FC	01/1998 - 08/1998	1
90445-17093	LH103,113,RZH103,113,114..4FC	08/1989 - 01/1998	1
32906B - HOSE, OIL COOLER TUBE(FOR OUTLET)
90445-17100	LH103,113,RZH103,113,114..4FC	08/1989 - 08/1998	1
90445-17125	LH103,113,125..4FC	07/1999 - 08/2000	1
90445-17125	LH103,113,125,RZH103,113,125..4FC	08/1998 - 07/1999	1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-26260	LH103,113,125..4FC	08/1998 - 07/1999	1
32921-26260	LH103,113,125..4FC	07/1999 - 08/2000	1
32921-26091	LH103,113..4FC	08/1989 - 06/1998	1
32921-26092	LH103,113..4FC	06/1998 - 08/1998	1
32921-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021	LH103,113,125,RZH103,113,114,125..4FC FRONT	08/1989 - 07/1999	1
90404-16021	LH103,113,125..4FC FRONT	07/1999 - 08/2000	1
90407-16010	LH103,113,125,RZH103,113,114,125..4FC REAR	08/1989 - 07/1999	1
90407-16010	LH103,113,125..4FC REAR	07/1999 - 08/2000	1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17102	LH103,113..4FC	08/1989 - 06/1998	1
32941-28190	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32942-26110	LH103,113..4FC	06/1998 - 08/1998	1
32941-26160	LH103,113,125..4FC	07/1999 - 08/2000	1
32941-26160	LH103,113,125..4FC	08/1998 - 07/1999	1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-16022	LH103,113,125..4FC	07/1999 - 08/2000	4
90467-16013	LH103,113,125,RZH103,113,114,125..4FC	08/1989 - 07/1999	4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-26091	LH103,113..4FC	08/1989 - 06/1998	1
32922-26092	LH103,113..4FC	06/1998 - 08/1998	1
32922-26250	LH103,113,125..4FC	08/1998 - 07/1999	1
32922-26250	LH103,113,125..4FC	07/1999 - 08/2000	1
32922-26081	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17110	LH103,113..4FC	08/1989 - 06/1998	1
32942-26110	LH103,113,125..4FC	07/1999 - 08/2000	1
32942-26110	LH103,113,125..4FC	08/1998 - 07/1999	1
90445-17103	RZH103,113,125..4FC	10/1990 - 07/1999	1
90445-17107	RZH103,113,114..4FC	08/1989 - 10/1990	1
32941-26160	LH103,113..4FC	06/1998 - 08/1998	1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32925-26091	LH103,113,125..4FC	08/1998 - 07/1999	1
32925-26090	LH103,113..4FC	06/1998 - 08/1998	1
32923-26050	RZH103,113,114,125..4FC	08/1989 - 07/1999	1
32923-26070	LH103,113..4FC	08/1989 - 06/1998	1
32925-26091	LH103,113,125..4FC	07/1999 - 08/2000	1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90462-12079	RZH103,113,125..4FC	06/1998 - 07/1999	1
90462-12079	RZH103,113,114..4FC	08/1989 - 04/1998	1
90462-12079	LH103,113,RZH103,113..4FC	04/1998 - 06/1998	1
90949-01B25	LH103,113,125..4FC	06/1998 - 07/1999	1
90949-01B25	LH103,113,125..4FC	07/1999 - 08/2000	1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
90462-12079	LH103,113,125..4FC	08/1989 - 07/1999	1
90462-12079	LH103,113,125..4FC	07/1999 - 08/2000	1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32909-26030	RZH103,113,114..4FC NO.1	08/1989 - 08/1995	1
32909-26040	RZH103,113,114..4FC NO.2	08/1989 - 08/1995	1
90462-12079	LH103,113..4FC	08/1989 - 08/1998	1
32909-26041	RZH103,113,125..4FC NO.2	08/1995 - 07/1999	1
32909-26031	RZH103,113,125..4FC NO.1	08/1995 - 07/1999	1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-26050	LH103,113..4FC	08/1989 - 08/1998	1
32924-26120	LH103,113,125..4FC	08/1998 - 07/1999	1
32924-26120	LH103,113,125..4FC	07/1999 - 08/2000	1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020	RZH103,113,114,125..4FC L=35,ID=10	08/1989 - 07/1999	4
32926-30020	LH103,113,125..4FC L=35,ID=10	08/1989 - 07/1999	6
32926-26010	RZH103,113,114,125..4FC L=60,ID=10	08/1989 - 07/1999	2
32926-30020	LH103,113,125..4FC L=35,ID=10	07/1999 - 08/2000	6
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-26010	LH103,113..4FC	08/1989 - 08/1998	1
Common parts
90467-16013
91611-60612
91611-60814
91651-40614

(8908- )RZH112,113

Click highlighted areas on diagram

A45DL

Part #	Description	Period	Qty	Price
Common parts
90467-16013
91611-60612
91611-60812
91611-60814
91651-40614

LH113R-RBPRSQ (1989)

(9808- )LH103,113,125,162,172,184..4FC

(8908- )RZH103,113,114,125..4FC

(8908-9808)LH103,113..4FC

(8908- )RZH112,113

Part Price Details
