LH112R-RBMES (1993)
Toyota Hiace Van,Commuter
(8908-9808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81105 - HOUSING SUB-ASSY, HEADLAMP, RH | ||||
| 81105-95J40 |
LH112..RHD..STD;LH10#,113,114,115,125,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 81106 - HOUSING SUB-ASSY, HEADLAMP, LH | ||||
| 81106-95J41 |
LH112..RHD..STD;LH10#,113,114,115,125,RZH102,103,104,112,113,114,125..RHD |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81110-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81110-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81110-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81110-26070 |
LH112..GL |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81110-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81110-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81110-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81110-26070 |
LH112..GL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
LH10#,11#,RZH10#,11#..GEN 12V 45/40W,WHITE |
2 | ||
| 90981-13055 |
LH112..GL;LH125..GEN 12V 60/55W,HALOGEN |
2 | ||
| 90981-13015 |
RZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,RZH113,114..GEN 12V 60/55W,*HAL *WH,SEMI-SEALED |
2 | ||
| 90981-13055 |
LH112..GL 12V 60/55W,HALOGEN |
2 | ||
| 90981-22004 |
LH112..RHD..SRF..03S 12V 60/55W,*HAL *WH,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
LH10#,11#,RZH10#,11#..GEN 12V 45/40W,WHITE |
2 | ||
| 90981-13055 |
LH112..GL;LH125..GEN 12V 60/55W,HALOGEN |
2 | ||
| 90981-13015 |
RZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,RZH113,114..GEN 12V 60/55W,*HAL *WH,SEMI-SEALED |
2 | ||
| 90981-13055 |
LH112..GL 12V 60/55W,HALOGEN |
2 | ||
| 90981-22004 |
LH112..RHD..SRF..03S 12V 60/55W,*HAL *WH,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04005 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 45/40W,*WSB |
2 | ||
| 90981-04011 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 60/55W,*HWS |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04005 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 45/40W,*WSB |
2 | ||
| 90981-04011 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 60/55W,*HWS |
2 | ||
| 81110S - SEALED BEAM UNIT, NO.1 | ||||
| 90981-04005 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 45/40W,*WSB |
2 | ||
| 90981-04011 |
LH10#,11#,RZH10#,11#..RHD..GEN 12V 60/55W,*HWS |
2 | ||
| 81121 - SPRING, HEADLAMP TENSION | ||||
| 81121-16020 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81150-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81150-26070 |
LH112..GL |
1 | ||
| 81150-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81150-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81150-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81150-26070 |
LH112..GL |
1 | ||
| 81150-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81150-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| Common parts | ||||
| 81136-12571 | ||||
| 90075-00006 | ||||
| 90159-60008 | ||||
| 90189-04014 | ||||
| 90189-06018 | ||||

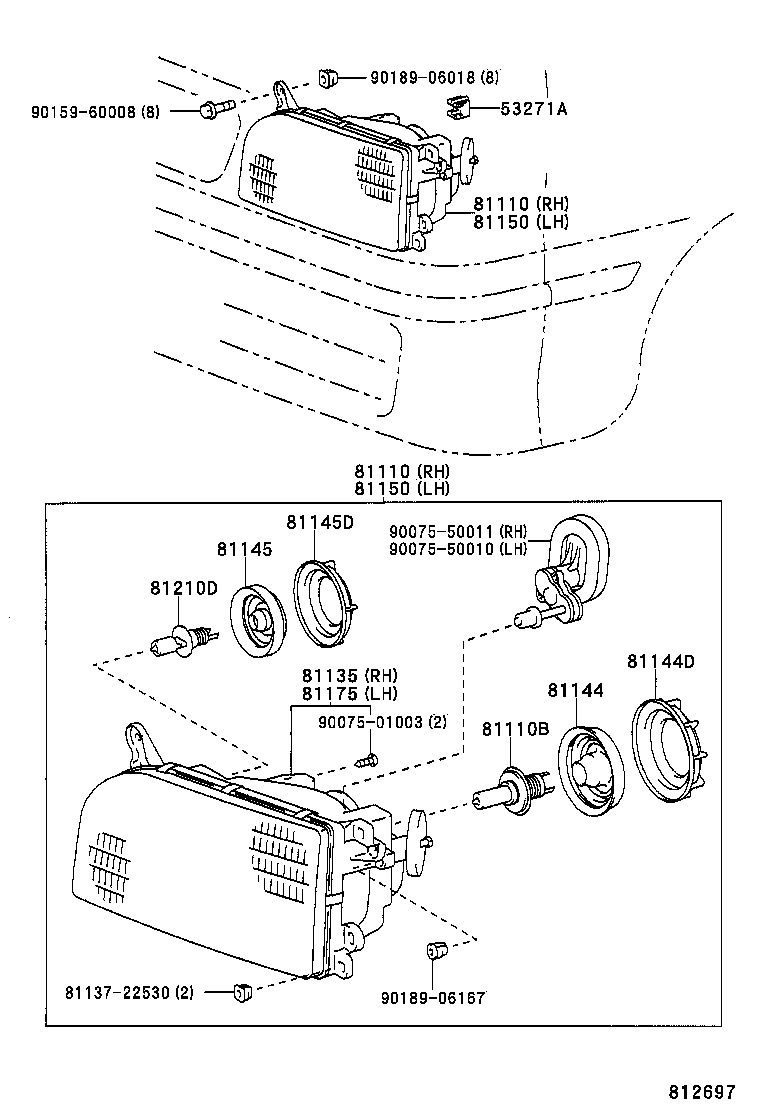

(9308-9608)GL ; (9411-9608)LH125
W(FOGLAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-26010 |
LH112..GL |
2 | ||
| 53271-26010 |
LH112..GL;LH125..GEN |
2 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81110-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81110-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81110-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81110-26070 |
LH112..GL |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81110-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81110-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81110-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81110-26070 |
LH112..GL |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13013 |
LH10#,11#,RZH10#,11#..GEN 12V 45/40W,WHITE |
2 | ||
| 90981-13055 |
LH112..GL;LH125..GEN 12V 60/55W,HALOGEN |
2 | ||
| 90981-13015 |
RZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,RZH113,114..GEN 12V 60/55W,*HAL *WH,SEMI-SEALED |
2 | ||
| 90981-13055 |
LH112..GL 12V 60/55W,HALOGEN |
2 | ||
| 90981-22004 |
LH112..RHD..SRF..03S 12V 60/55W,*HAL *WH,TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-26070 |
LH112..GL |
1 | ||
| 81130-95J45 |
LH112..RHD..SRF..03S |
1 | ||
| 81130-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-99084 |
LH112..GL |
2 | ||
| 81139-20730 |
LH112..RHD..SRF..03S |
2 | ||
| 90075-99084 |
LH112..GL;LH125..GEN |
2 | ||
| 81144D - CAP, HEADLAMP LOCKING | ||||
| 90075-99083 |
LH112..GL |
2 | ||
| 90075-99083 |
LH112..GL;LH125..GEN |
2 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-99072 |
LH112..GL;LH125..GEN |
2 | ||
| 90075-99072 |
LH112..GL |
2 | ||
| 81145D - CAP, HEADLAMP LOCKING NO.2 | ||||
| 90075-99073 |
LH112..GL;LH125..GEN |
2 | ||
| 90075-99073 |
LH112..GL |
2 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81150-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81150-26070 |
LH112..GL |
1 | ||
| 81150-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81150-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81150-95J38 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED,WHITE |
1 | ||
| 81150-26070 |
LH112..GL |
1 | ||
| 81150-95J45 |
LH112..RHD..SRF..03S HIGH GRADE PACKAGE |
1 | ||
| 81150-95J41 |
LH10#,11#,RZH10#,11#..RHD..GEN SEMI-SEALED HALOGEN,WHITE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-26070 |
LH112..GL |
1 | ||
| 81170-26070 |
LH112..GL;LH125..GEN |
1 | ||
| 81170-95J45 |
LH112..RHD..SRF..03S |
1 | ||
| 81210D - BULB, FOG LAMP | ||||
| 90981-13057 |
LH112..GL 12V 35W |
2 | ||
| 90981-13057 |
LH112..GL;LH125..GEN 12V 35W |
2 | ||
| Common parts | ||||
| 81137-22530 | ||||
| 90075-01003 | ||||
| 90075-50010 | ||||
| 90075-50011 | ||||
| 90159-60008 | ||||
| 90189-06018 | ||||
| 90189-06167 | ||||
