LH103R-SRMRS (1993)
Toyota Hiace Van,Commuter
(9808- )

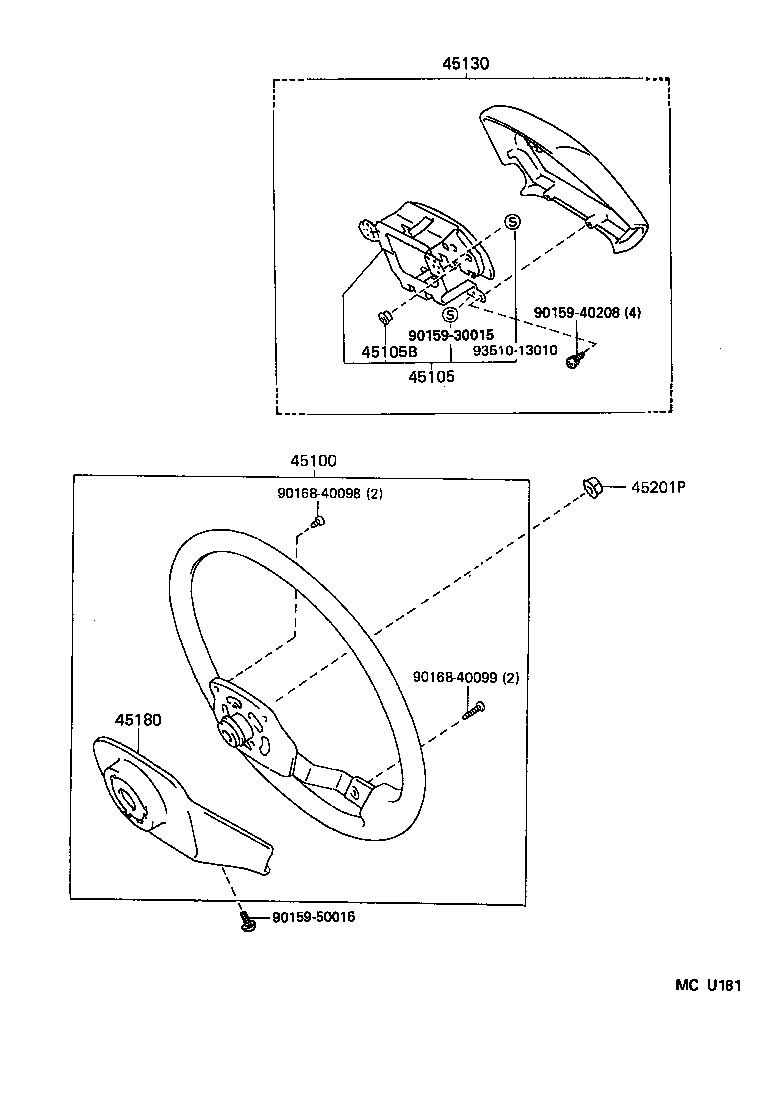

2-SPOKE(URETHANE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2615003 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-2614003 |
LH10#,11#,125,RZH10#,11#,125..STD 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125,135,153 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26230B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-26050 |
RZH103..SGL;RZH103..RHD..CBR;RZH113..LHD..EFI;LH112,RZH113..CBR,DSL;LH10#,113,114,115,125,RZH102,104,105,112,114,115,125..DX,STD W(URETHANE STEERING WHEEL) |
1 | ||
| 45105-12200 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
1 | ||
| 45105-26100 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-2616003 |
LH10#,11#,RZH102,104,11#..GEN W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45130-2614003 |
LH10#,11#,RZH10#,11#..GEN GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH125,RZH104..STD;LH10#,11#,RZH102,105,11#,125,135,153;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26260B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-22040 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) |
4 | ||
| 45155-22040 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) |
4 | ||
| 45155-22040 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) |
4 | ||
| 45155-12050 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
4 | ||
| 45155-12050 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
3 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-2602003 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,125,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26020B0 |
LH125..STD;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD);LH10#,11#,RZH102,104,105,11#,125,135,153 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26040B0 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90179-12086 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90159-50016 | ||||
| 90168-40103 | ||||
| 93560-14020 | ||||
(9808- )
2-SPOKE(URETHANE),W(*80)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2615003 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-2614003 |
LH10#,11#,125,RZH10#,11#,125..STD 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125,135,153 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26230B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-2616003 |
LH10#,11#,RZH102,104,11#..GEN W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45130-2614003 |
LH10#,11#,RZH10#,11#..GEN GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH125,RZH104..STD;LH10#,11#,RZH102,105,11#,125,135,153;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26260B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90179-12086 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90148-60011 | ||||
(9808- )
2-SPOKE(PP:POLYPROPYLENE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2615003 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-2614003 |
LH10#,11#,125,RZH10#,11#,125..STD 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125,135,153 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26230B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-26050 |
RZH103..SGL;RZH103..RHD..CBR;RZH113..LHD..EFI;LH112,RZH113..CBR,DSL;LH10#,113,114,115,125,RZH102,104,105,112,114,115,125..DX,STD W(URETHANE STEERING WHEEL) |
1 | ||
| 45105-12200 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
1 | ||
| 45105-26100 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-2616003 |
LH10#,11#,RZH102,104,11#..GEN W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45130-2614003 |
LH10#,11#,RZH10#,11#..GEN GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH125,RZH104..STD;LH10#,11#,RZH102,105,11#,125,135,153;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26260B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45155 - SPACER, HORN BUTTON CONTACT PLATE | ||||
| 45155-22040 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) |
4 | ||
| 45155-22040 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) |
4 | ||
| 45155-22040 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) |
4 | ||
| 45155-12050 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
4 | ||
| 45155-12050 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
3 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-2602003 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,125,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26020B0 |
LH125..STD;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD);LH10#,11#,RZH102,104,105,11#,125,135,153 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26040B0 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90179-12086 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90159-50016 | ||||
| 90167-40054 | ||||
| 90168-40103 | ||||
(8908-9808)
2-SPOKE(URETHANE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2615003 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-2614003 |
LH10#,11#,125,RZH10#,11#,125..STD 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125,135,153 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26230B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-26050 |
RZH103..SGL;RZH103..RHD..CBR;RZH113..LHD..EFI;LH112,RZH113..CBR,DSL;LH10#,113,114,115,125,RZH102,104,105,112,114,115,125..DX,STD W(URETHANE STEERING WHEEL) |
1 | ||
| 45105-12200 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
1 | ||
| 45105-26100 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-02001 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 45125 - MARK, STEERING WHEEL PAD | ||||
| 45125-26110 |
LH10#,11#,RZH102,104,11#..GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-2616003 |
LH10#,11#,RZH102,104,11#..GEN W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45130-2614003 |
LH10#,11#,RZH10#,11#..GEN GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH125,RZH104..STD;LH10#,11#,RZH102,105,11#,125,135,153;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26260B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-2602003 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,125,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26020B0 |
LH125..STD;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD);LH10#,11#,RZH102,104,105,11#,125,135,153 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26040B0 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90179-12086 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90159-40208 | ||||
| 90159-50016 | ||||
| 90167-41001 | ||||
| 90168-40098 | ||||
| 93315-14012 | ||||
| 93510-13010 | ||||
(9308-9808)
2-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-2615003 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-2614003 |
LH10#,11#,125,RZH10#,11#,125..STD 2SPOKE,POLYPROPYLENE,GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26140B0 |
LH10#,11#,125,RZH10#,11#..CIS,GCC,GEN 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26150B0 |
LH10#,11#,125,RZH10#,11#,125,135,153 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26230B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) 2SPOKE,POLYPROPYLENE,BLUISH GRAY,TRIM1# |
1 | ||
| 45100-26220B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 2-SPOKE,URETHANE,BLUISH GRAY,TRIM1# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-26050 |
RZH103..SGL;RZH103..RHD..CBR;RZH113..LHD..EFI;LH112,RZH113..CBR,DSL;LH10#,113,114,115,125,RZH102,104,105,112,114,115,125..DX,STD W(URETHANE STEERING WHEEL) |
1 | ||
| 45105-12200 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) |
1 | ||
| 45105-26100 |
RZH115..SGL;LH103,113,115,125,RZH102..STD;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL) |
1 | ||
| 45105B - SPACER(FOR HORN BUTTON CONTACT PLATE) | ||||
| 90561-02001 |
LH10#,11#,125,RZH10#,11#,125 |
2 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125..ARL,GCC,GEN W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,125,RZH10#,11#..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-2616003 |
LH10#,11#,RZH102,104,11#..GEN W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45130-2614003 |
LH10#,11#,RZH10#,11#..GEN GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26191B0 |
LH125,RZH104..STD;LH10#,11#,RZH102,105,11#,125,135,153;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH112,RZH113..(GL,STD)..(GCC,GEN);LH10#,113,114,115,RZH10#,112,114,115..(DX,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26140B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26260B0 |
RZH112..5D;LH172,RZH104,105,114..SG;RZH115..STD..(CIS,GCC)..EFI;LH172,RZH112,115..(03S,15S)..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,16#,174,176,RZH102,103,113..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45130-26240B0 |
RZH115..(CIS,GCC)..EFI;RZH112,115..LHD..(06S,12S);LH154,RZH112,115..(03S,11S,15S)..(CBR,DSL);LH10#,11#,125,16#,17#,184,RZH10#,113,114,125,135,155 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180 - COVER SUB-ASSY, STEERING WHEEL | ||||
| 45180-2602003 |
LH10#,11#,125,RZH10#,11#,125 W(URETHANE STEERING WHEEL),GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH10#,11#,125,RZH10#,11#,125..STD GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(DX,GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-2601003 |
LH114..HRF;LH114,115,RZH104,114..LHD;LH10#,112,113,125,RZH102,103,105,112,113,115..CIS,GCC,GEN GRAY,TRIM1# |
1 | ||
| 45180-26010B0 |
LH10#,11#,RZH10#,11#..(03S,06S,12S,15S)..(GL,STD)..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26020B0 |
LH125..STD;LH125,RZH103..(SMRF,SRF)..(GL,SGL,STD);LH10#,11#,RZH102,104,105,11#,125,135,153 W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
LH172..RHD;RZH115..STD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105,115..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,103,104,112,113,114,125,135,153..03S,06S,10S,12S,14S,15S W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26040B0 |
LH102,105,112..LHD..SG;LH103,113,115,RZH102..STD..(CIS,GCC,GEN) BLUISH GRAY,TRIM1# |
1 | ||
| 45180-26030B0 |
RZH115..SGL;LH103,113,115,125,RZH102,153..03S,06S,14S,15S;LH102,105,112,174,RZH103..LHD..(06S,09S,10S,12S) W(URETHANE STEERING WHEEL),BLUISH GRAY,TRIM1# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
RZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15# |
1 | ||
| 90179-12086 |
LH10#,11#,125,RZH10#,11#,125 |
1 | ||
| Common parts | ||||
| 90159-30015 | ||||
| 90159-40208 | ||||
| 90159-50016 | ||||
| 90168-40098 | ||||
| 90168-40099 | ||||
| 93510-13010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
