RH32RV-JRQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

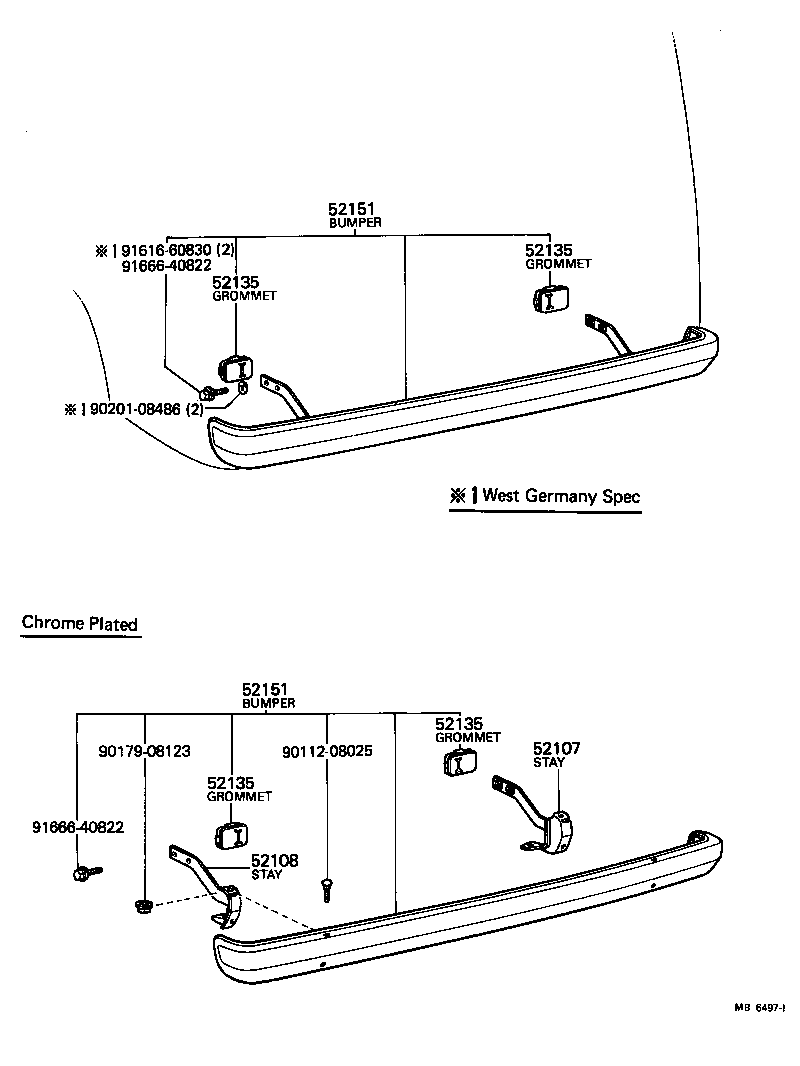

(7702-8012)LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

diagram 52107 52108 52135 52135 52135 52135 52151 52151 9011208025 9017908123 9020108486 9161660830 9166640822 9166640822
Part # Description Qty Price
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52151 - BUMPER ASSY, REAR
52102-95A90

RH2#,3#,42..BUS,V

 1
52102-29075

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151-95A91

RH2#,3#,42

CHROME PLATED

 1
52102-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151 - BUMPER ASSY, REAR
52102-95A90

RH2#,3#,42..BUS,V

 1
52102-29075

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151-95A91

RH2#,3#,42

CHROME PLATED

 1
52102-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
Common parts
90112-08025
90179-08123
90201-08486
91616-60830
91666-40822

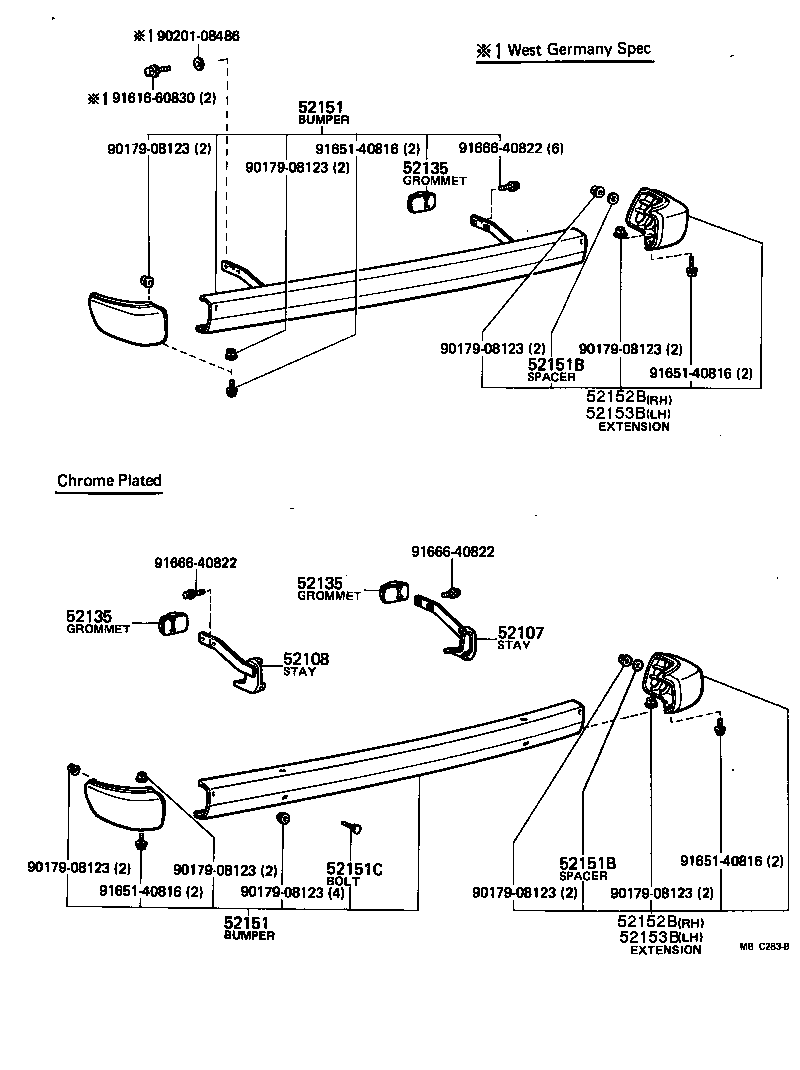

(8012- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

diagram 52107 52108 52135 52135 52135 52151 52151 52151B 52151B 52151C 52152B 52152B 52153B 52153B 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9017908123 9020108486 9161660830 9165140816 9165140816 9165140816 9165140816 9166640822 9166640822 9166640822
Part # Description Qty Price
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52135 - GROMMET, REAR BUMPER STAY
52191-95A00

LH20,30,RH20,22,3#,42

 2
52151 - BUMPER ASSY, REAR
52102-95A90

RH2#,3#,42..BUS,V

 1
52102-29075

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151-95A91

RH2#,3#,42

CHROME PLATED

 1
52102-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151 - BUMPER ASSY, REAR
52102-95A90

RH2#,3#,42..BUS,V

 1
52102-29075

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151-95A91

RH2#,3#,42

CHROME PLATED

 1
52102-29105

LH20,30,RH20,22,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH2#,3#,42..BUS,V

 1
52102-95A91

LH20,30,RH20,22,3#,42..ARL,GEN

 1
52151B - SPACER(FOR REAR BUMPER SET)
52137-95A01

LH20,30,RH20,22,3#,42

 2
52151B - SPACER(FOR REAR BUMPER SET)
52137-95A01

LH20,30,RH20,22,3#,42

 2
52152B - EXTENSION, REAR BUMPER, RH
52021-29025

LH20,30,RH20,22,3#,42

 1
52152B - EXTENSION, REAR BUMPER, RH
52021-29025

LH20,30,RH20,22,3#,42

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29025

LH20,30,RH20,22,3#,42

 1
52153B - EXTENSION, REAR BUMPER, LH
52022-29025

LH20,30,RH20,22,3#,42

 1
Common parts
90179-08123
90201-08486
91616-60830
91651-40816
91666-40822
