RH32RV-JRQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 18R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702-8012)LH11,20,30,RH22,25,32,42 ; (8012-)RH22,25,32,42

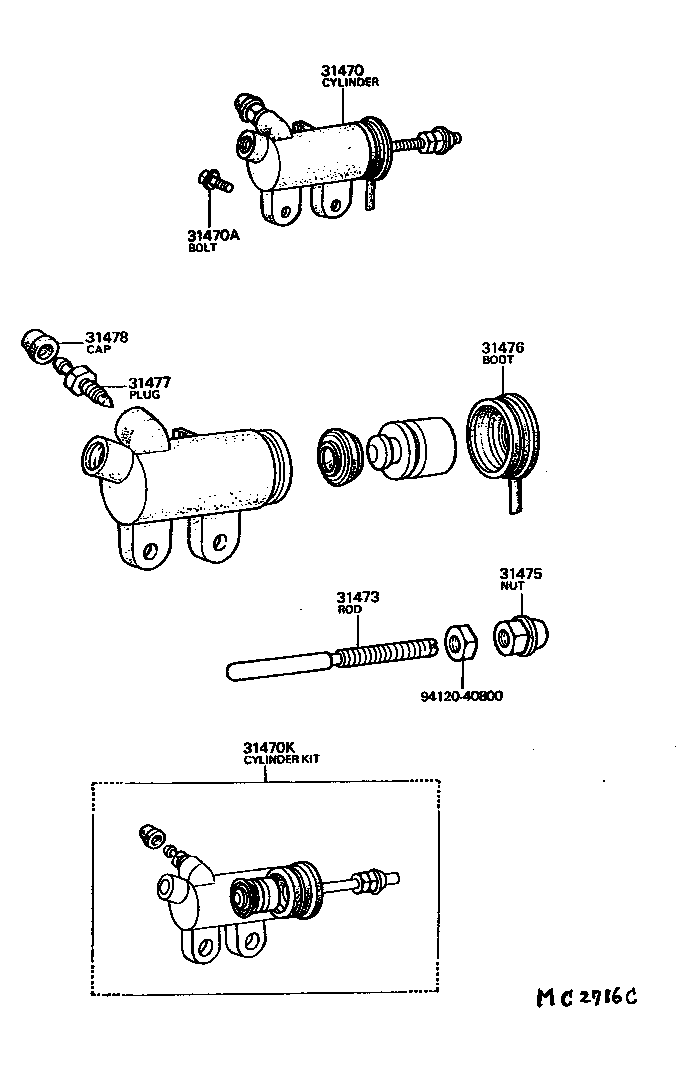

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31475 31476 31477 31478 9412040800
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-20091

RH22,25,32,42

 1
31470-26020

RH22,25,32,42

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

LH11,20,30,RH22,25,32,42

*8-1.25PX25-25

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-30054

LH11,20,30,RH22,25,32,42

 1
04313-25010

LH11,20,30,RH22,25,32,42

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-25010

LH11,20,30,RH22,25,32,42

 1
31473-30021

LH11,20,30,RH22,25,32,42

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31475-30020

LH11,20,30,RH22,25,32,42

 1
31475-30011

RH22,32,42

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-22010

LH11,20,30,RH22,25,32,42

 1
31476-20040

LH11,20,30,RH22,25,32,42

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

RH22,32,42

 1
47547-12010

LH11,20,30,RH11,2#,3#,42

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

LH11,20,30,RH11,2#,3#,42

 1
Common parts
94120-40800
