RH32RV-JRFE (1977)
Toyota Hiace
Production
Feb 1977
-
Dec 1980
Engine
18R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702- )18R

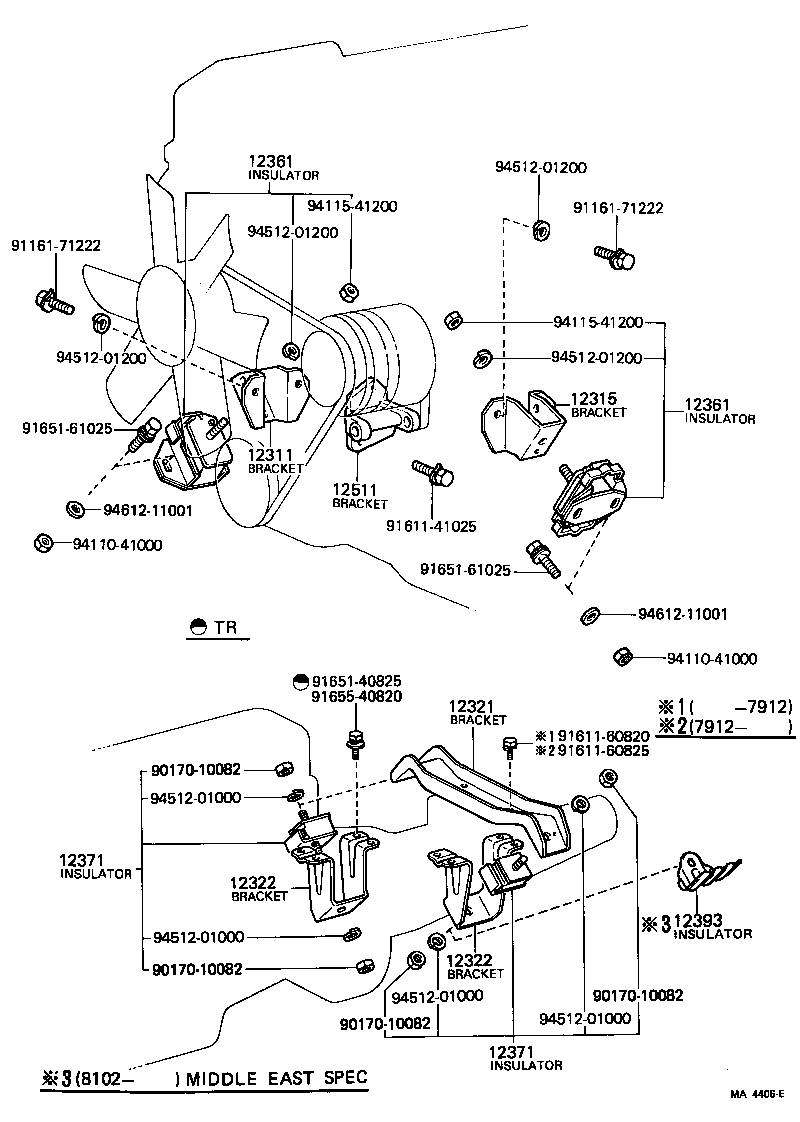

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-33011 |
18R..RH22,25,32,42 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-33011 |
18R..RH22,25,32,42 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-31020 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54010 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12322-31020 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12322-54010 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12322-31020 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39096 |
18R..RH22,32,42 RH |
1 | ||
| 12362-39036 |
18R..RH22,32,42 LH |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-39096 |
18R..RH22,32,42 RH |
1 | ||
| 12362-39036 |
18R..RH22,32,42 LH |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-39025 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-39025 |
12R#,18R..RH11,2#,3#,42 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-33011 |
18R..RH22,25,32,42 |
1 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91161-71222 | ||||
| 91611-41025 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91651-40825 | ||||
| 91651-61025 | ||||
| 91655-40820 | ||||
| 94110-41000 | ||||
| 94115-41200 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94612-11001 | ||||
