Toyota Hiace RH32 HEADLAMP CLEANER

RH32LV-JRFEW (1977)

Toyota Hiace

Production Jul 1977 - Nov 1982

Engine 18R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702-7901)RH32..V5D..EUR

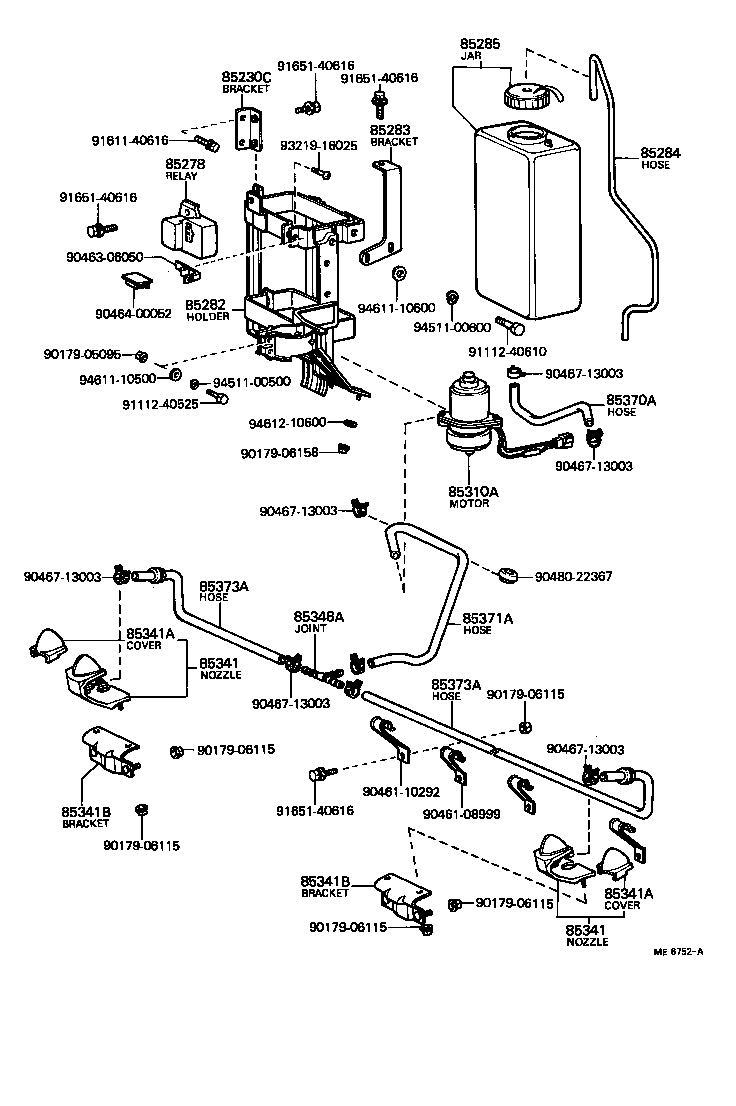

Click highlighted areas on diagram

Part #	Description	Period	Qty
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-95A03	RH32..V5D..EUR	06/1980 - 11/1982	1
85361-95A03	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-22010	RH32..V5D..EUR	07/1977 - 01/1979	1
85276-14010	RH32..V5D..EUR	06/1980 - 11/1982	1
85276-14010	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85282 - HOLDER ASSY, HEADLAMP CLEANER WASHER JAR
85361-95A06	RH32..V5D..EUR	06/1980 - 11/1982	1
85361-95A04	RH32..V5D..EUR	07/1977 - 01/1979	1
85361-95A06	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-95A05	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85361-95A05	RH32..V5D..EUR	06/1980 - 02/1981	1
85361-95A09	RH32..V5D..EUR	02/1981 - 11/1982	1
85284 - HOSE ASSY, HEADLAMP CLEANER WASHER
90446-07002	RH25,32..LHD..EUR	07/1977 - 06/1980	1
90446-07002	RH32..V5D..EUR	06/1980 - 11/1982	1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-12060	RH32..V5D..EUR	06/1980 - 11/1982	1
85330-12060	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-16010	RH32..V5D..EUR	06/1980 - 11/1982	1
85310-16010	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85310-12040	RH32..V5D..EUR	07/1977 - 01/1979	1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22041	RH32..V5D..EUR	07/1977 - 01/1979	2
85035-95A03	RH25,32..LHD..EUR	01/1979 - 06/1980	2
85035-95A03	RH32..V5D..EUR	06/1980 - 12/1980	2
85035-95A06	RH32..V5D..EUR	12/1980 - 11/1982	2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22041	RH32..V5D..EUR	07/1977 - 01/1979	2
85035-95A03	RH25,32..LHD..EUR	01/1979 - 06/1980	2
85035-95A03	RH32..V5D..EUR	06/1980 - 12/1980	2
85035-95A06	RH32..V5D..EUR	12/1980 - 11/1982	2
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85033-22020	RH32..V5D..EUR	02/1977 - 01/1979	2
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85033-22020	RH32..V5D..EUR	02/1977 - 01/1979	2
85341B - BRACKET, HEADLAMP CLEANER NOZZLE
85345-95A00	RH32..V5D..EUR	07/1977 - 01/1979	2
85341B - BRACKET, HEADLAMP CLEANER NOZZLE
85345-95A00	RH32..V5D..EUR	07/1977 - 01/1979	2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010	RH32..V5D..EUR	07/1977 - 01/1979	1
85352-20010	RH25,32..LHD..EUR NO.1	01/1979 - 06/1980	1
85031-12010	RH25,32..LHD..EUR NO.2	01/1979 - 06/1980	1
85352-20010	RH32..V5D..EUR NO.1	06/1980 - 11/1982	1
85031-12010	RH32..V5D..EUR NO.2	06/1980 - 11/1982	1
85370A - HOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
85343-95A04	RH32..V5D..EUR	06/1980 - 11/1982	1
85343-95A00	RH32..V5D..EUR	07/1977 - 01/1979	1
85343-95A04	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-95A01	RH32..LHD..EUR	07/1977 - 06/1980	1
85343-95A01	RH32..V5D..EUR	06/1980 - 11/1982	1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95A06	RH32..LHD..EUR L=90,RH	01/1979 - 06/1980	1
85343-95A02	RH32..V5D..EUR RH	07/1977 - 01/1979	1
85343-95A07	RH32..LHD..EUR *H,L=1040,LH	01/1979 - 06/1980	1
85343-95A03	RH32..V5D..EUR LH	07/1977 - 01/1979	1
85343-95A06	RH32..V5D..EUR L=90,RH	06/1980 - 11/1982	1
85343-95A07	RH32..V5D..EUR *H,L=1040,LH	06/1980 - 11/1982	1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95A06	RH32..LHD..EUR L=90,RH	01/1979 - 06/1980	1
85343-95A02	RH32..V5D..EUR RH	07/1977 - 01/1979	1
85343-95A07	RH32..LHD..EUR *H,L=1040,LH	01/1979 - 06/1980	1
85343-95A03	RH32..V5D..EUR LH	07/1977 - 01/1979	1
85343-95A06	RH32..V5D..EUR L=90,RH	06/1980 - 11/1982	1
85343-95A07	RH32..V5D..EUR *H,L=1040,LH	06/1980 - 11/1982	1
Common parts
90179-05095
90179-06115
90179-06158
90461-08999
90461-10292
90463-06050
90464-00052
90467-13003
90480-22367
91112-40525
91112-40610
91611-40616
91651-40616
93219-16025
94511-00500
94511-00600
94611-10500
94611-10600
94612-10600

(7901- )LHD..EUR

Click highlighted areas on diagram

Part #	Description	Period	Qty
85230C - BRACKET ASSY, HEADLAMP CLEANER
85361-95A03	RH32..V5D..EUR	06/1980 - 11/1982	1
85361-95A03	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85278 - RELAY ASSY, HEADLAMP CLEANER CONTROL
85276-22010	RH32..V5D..EUR	07/1977 - 01/1979	1
85276-14010	RH32..V5D..EUR	06/1980 - 11/1982	1
85276-14010	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85282 - HOLDER ASSY, HEADLAMP CLEANER WASHER JAR
85361-95A06	RH32..V5D..EUR	06/1980 - 11/1982	1
85361-95A04	RH32..V5D..EUR	07/1977 - 01/1979	1
85361-95A06	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85283 - BRACKET, HEADLAMP CLEANER WASHER
85361-95A05	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85361-95A05	RH32..V5D..EUR	06/1980 - 02/1981	1
85361-95A09	RH32..V5D..EUR	02/1981 - 11/1982	1
85284 - HOSE ASSY, HEADLAMP CLEANER WASHER
90446-07002	RH25,32..LHD..EUR	07/1977 - 06/1980	1
90446-07002	RH32..V5D..EUR	06/1980 - 11/1982	1
85285 - JAR, HEADLAMP CLEANER WASHER
85330-12060	RH32..V5D..EUR	06/1980 - 11/1982	1
85330-12060	RH25,32..LHD..EUR	07/1977 - 06/1980	1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-16010	RH32..V5D..EUR	06/1980 - 11/1982	1
85310-16010	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85310-12040	RH32..V5D..EUR	07/1977 - 01/1979	1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22041	RH32..V5D..EUR	07/1977 - 01/1979	2
85035-95A03	RH25,32..LHD..EUR	01/1979 - 06/1980	2
85035-95A03	RH32..V5D..EUR	06/1980 - 12/1980	2
85035-95A06	RH32..V5D..EUR	12/1980 - 11/1982	2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-22041	RH32..V5D..EUR	07/1977 - 01/1979	2
85035-95A03	RH25,32..LHD..EUR	01/1979 - 06/1980	2
85035-95A03	RH32..V5D..EUR	06/1980 - 12/1980	2
85035-95A06	RH32..V5D..EUR	12/1980 - 11/1982	2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010	RH32..V5D..EUR	07/1977 - 01/1979	1
85352-20010	RH25,32..LHD..EUR NO.1	01/1979 - 06/1980	1
85031-12010	RH25,32..LHD..EUR NO.2	01/1979 - 06/1980	1
85352-20010	RH32..V5D..EUR NO.1	06/1980 - 11/1982	1
85031-12010	RH32..V5D..EUR NO.2	06/1980 - 11/1982	1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010	RH32..V5D..EUR	07/1977 - 01/1979	1
85352-20010	RH25,32..LHD..EUR NO.1	01/1979 - 06/1980	1
85031-12010	RH25,32..LHD..EUR NO.2	01/1979 - 06/1980	1
85352-20010	RH32..V5D..EUR NO.1	06/1980 - 11/1982	1
85031-12010	RH32..V5D..EUR NO.2	06/1980 - 11/1982	1
85370A - HOSE ASSY, HEADLAMP CLEANER WASHER, NO.1
85343-95A04	RH32..V5D..EUR	06/1980 - 11/1982	1
85343-95A00	RH32..V5D..EUR	07/1977 - 01/1979	1
85343-95A04	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85343-95A01	RH32..LHD..EUR	07/1977 - 06/1980	1
85343-95A01	RH32..V5D..EUR	06/1980 - 11/1982	1
85371B - HOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
85343-95A05	RH32..V5D..EUR	06/1980 - 11/1982	1
85343-95A05	RH25,32..LHD..EUR	01/1979 - 06/1980	1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95A06	RH32..LHD..EUR L=90,RH	01/1979 - 06/1980	1
85343-95A02	RH32..V5D..EUR RH	07/1977 - 01/1979	1
85343-95A07	RH32..LHD..EUR *H,L=1040,LH	01/1979 - 06/1980	1
85343-95A03	RH32..V5D..EUR LH	07/1977 - 01/1979	1
85343-95A06	RH32..V5D..EUR L=90,RH	06/1980 - 11/1982	1
85343-95A07	RH32..V5D..EUR *H,L=1040,LH	06/1980 - 11/1982	1
85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
85343-95A06	RH32..LHD..EUR L=90,RH	01/1979 - 06/1980	1
85343-95A02	RH32..V5D..EUR RH	07/1977 - 01/1979	1
85343-95A07	RH32..LHD..EUR *H,L=1040,LH	01/1979 - 06/1980	1
85343-95A03	RH32..V5D..EUR LH	07/1977 - 01/1979	1
85343-95A06	RH32..V5D..EUR L=90,RH	06/1980 - 11/1982	1
85343-95A07	RH32..V5D..EUR *H,L=1040,LH	06/1980 - 11/1982	1
Common parts
90179-05095
90179-06115
90179-06158
90461-08999
90461-10292
90463-06050
90464-00052
90467-13003
90480-22367
91112-40525
91611-40612
91611-40616
91651-40616
91651-40816
93219-16025
93385-10525
94511-00500
94511-00600
94611-10500
94611-10600
94612-10600
