RH32LV-JREW (1979)
Toyota Hiace
(8012- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 91656-40818 | ||||
| Linked diagrams | ||||
| 5851 | ||||
(8102- )12R,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-34020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17061-34020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 90175-06026 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06309 |
12R#,18R..RH11,2#,3#,42 L=66,S=12&25 |
1 | ||
| 90116-06309 |
12R#,18R..RH11,2#,3#,42 L=66,S=12&25 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34221 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-34221 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-31050 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-31050 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-31020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17728-31020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 90386-03001 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17729-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17749-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RH22,32,42 |
1 | ||
| 90430-72114 |
18R..RH22,32,42 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34030 |
18R..RH22,32,42..BUS,V |
1 | ||
| 17861-34030 |
18R..RH22,32,42..BUS,V |
1 | ||
| 17861-34032 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17861-34032 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 90210-09026 | ||||
| 90464-00089 | ||||
| 91611-10460 | ||||
| 91651-40814 | ||||
(8102- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-34020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17061-34020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 90175-06026 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06309 |
12R#,18R..RH11,2#,3#,42 L=66,S=12&25 |
1 | ||
| 90116-06309 |
12R#,18R..RH11,2#,3#,42 L=66,S=12&25 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34221 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-34221 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-31050 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-31050 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-31020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17728-31020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 90386-03001 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17729-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17749-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-72114 |
18R..RH22,32,42 |
1 | ||
| 90430-72114 |
18R..RH22,32,42 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34030 |
18R..RH22,32,42..BUS,V |
1 | ||
| 17861-34030 |
18R..RH22,32,42..BUS,V |
1 | ||
| 17861-34032 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17861-34032 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 90210-09026 | ||||
| 90464-00089 | ||||
| 91611-10460 | ||||
| 91651-40814 | ||||

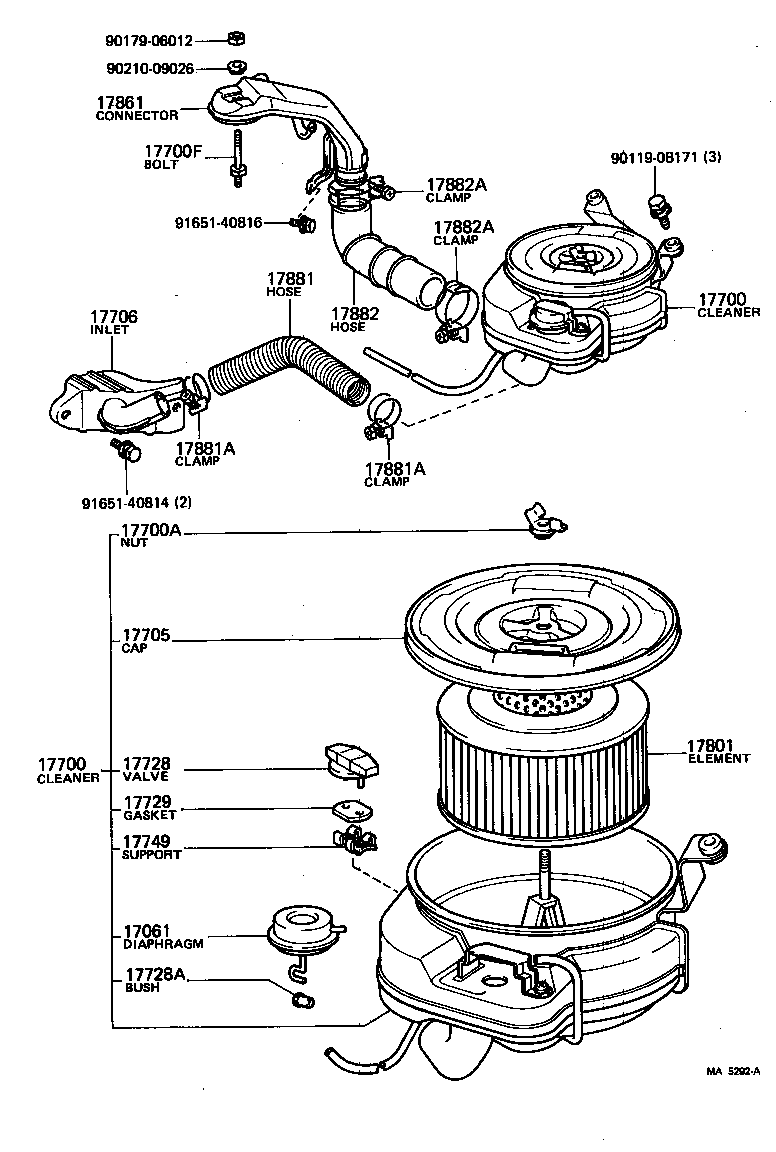

(8102- )18R..RH25,32..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17061 - DIAPHRAGM SUB-ASSY | ||||
| 17061-34020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17710-34301 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34290 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17710-31500 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17710-34291 |
18R..RH22,32,42..BUS,V W/O HOT AIR INTAKE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06026 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06309 |
12R#,18R..RH11,2#,3#,42 L=66,S=12&25 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-34221 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17705-31050 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17895-34070 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17728 - VALVE, THERMOSTATIC | ||||
| 17728-31020 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17728A - BUSH | ||||
| 90386-03001 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17729 - GASKET, THERMOSTAT VALVE | ||||
| 17729-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17749 - SUPPORT, THERMOSTAT VALVE | ||||
| 17749-34010 |
12R,18R..RH11,20,25,3#..EUR W/HOT AIR INTAKE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-23020 |
12R#,18R..RH11,2#,3#,42..BUS,TR,V |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-34030 |
18R..RH22,32,42..BUS,V |
1 | ||
| 17861-34032 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17882-31050 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
18R..RH25,32..EUR W/HOT AIR INTAKE |
2 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-34060 |
18R..RH22,25,32,42..ARL,EUR,GEN |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
18R..RH22,25,32,42 |
2 | ||
| 90460-69001 |
18R..RH22,25,32,42 |
2 | ||
| Common parts | ||||
| 90119-08171 | ||||
| 90179-06012 | ||||
| 90210-09026 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
