RH30RV-JRE (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11,2#,3#,42

Click highlighted areas on diagram

diagram 74411 74411 74411 74411 74413 74413 74413 74413 74414 74415 74471 74472 74472 74481 74481 74481 74481 9017906097 9017906097 9017906158 9017906158 9152140812 9152140812 9161160825 9161160825 9411040800 9411040800
Part # Description Qty Price
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
Common parts
90179-06097
90179-06158
91521-40812
91611-60825
94110-40800

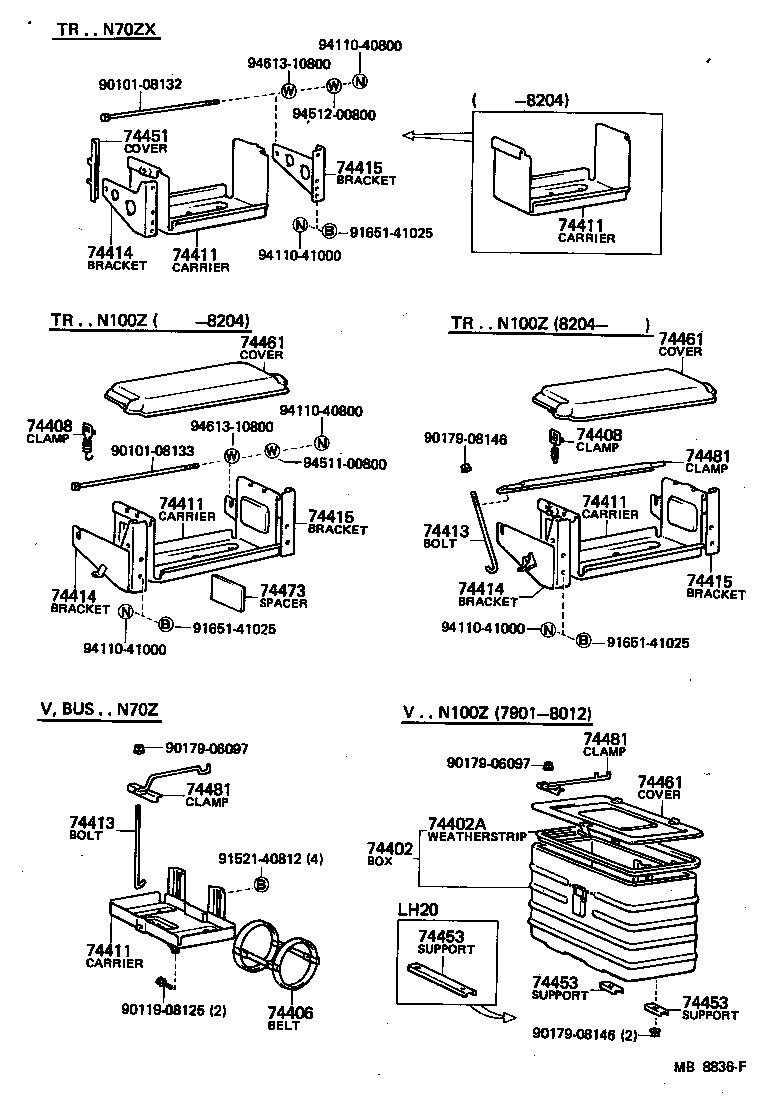

(7901- )LH11,20,30

Click highlighted areas on diagram

diagram 74402 74402A 74406 74408 74408 74411 74411 74411 74411 74411 74413 74413 74414 74414 74414 74415 74415 74415 74451 74453 74453 74453 74461 74461 74461 74473 74481 74481 74481 9010108132 9010108133 9011908125 9017906097 9017906097 9017908146 9017908148 9152140812 9165141025 9165141025 9165141025 9411040800 9411040800 9411041000 9411041000 9411041000 9451100800 9451200800 9461310800 9461310800
Part # Description Qty Price
74406 - BELT SUB-ASSY, BATTERY
74446-95A02

LH20,30

N70Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74411 - CARRIER, BATTERY
74410-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74410-95A02

LH20,30

N70Z

 1
74410-95A01

RH20,22,3#,42

N50,N50Z

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74413 - BOLT, BATTERY CLAMP
74451-30040

LH20,30,RH20,22,3#,42

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-95A01

RH20,22,3#,42

N50,N50Z

 1
74404-95A00

RH20,22,3#..(V,WG)..(GEN,SA)

NS40ZAL

 1
74404-95A01

LH20,30

N70Z

 1
Common parts
90101-08132
90101-08133
90119-08125
90179-06097
90179-08146
90179-08148
91521-40812
91651-41025
94110-40800
94110-41000
94511-00800
94512-00800
94613-10800
