8718 - HEATING & AIR CONDITIONING - COOLER PIPING

RH30RB-JRE (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980

Engine 12R

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88344-30011	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88344 - GLASS SUB-ASSY, SIGHT
88344-30011	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30450	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30450	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	5
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	5
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95A03	RH20,30..RHD..BUS..GEN	02/1977 - 12/1979	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95A03	RH20,30..RHD..BUS..GEN	02/1977 - 12/1979	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88712-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88712-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88711-95A04	RH2#,3#..RHD..BUS	04/1978 - 12/1979	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88711-95A01	RH2#,3#..RHD	02/1977 - 04/1978	1
88714A - HOSE, COOLER REFRIGERANT LIQUID, NO.2
88711-95A01	RH2#,3#..RHD	02/1977 - 04/1978	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95A01	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95A01	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95A02	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95A02	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-95A12	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716-95A03	RH2#,3#..RHD	02/1977 - 04/1978	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-95A12	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716-95A03	RH2#,3#..RHD	02/1977 - 04/1978	1
Common parts
88713-87304
88714-14010
88714-14020
88714-30290
88718-12130
88718-26020
88718-95A00
88718-95A01
88718-95A02
88718-95A03
88896-12030
90099-32094
90461-08205
90461-10117
90461-10923
93385-16016
93540-14008
93540-15010
94110-40600
94511-00600

(7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-7804)R

Click highlighted areas on diagram

Part #	Description	Period	Qty
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95A01	RH2#,3#..RHD	02/1977 - 04/1978	2
88712-95A07	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	2
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95A01	RH2#,3#..RHD	02/1977 - 04/1978	2
88712-95A07	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	2
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95A05	RH2#,3#..RHD	02/1977 - 04/1978	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-95A11	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716-95A06	RH2#,3#..RHD	02/1977 - 04/1978	1
88716R - COVER, PIPE OR HOSE, NO.1
88897-95A02	RH2#,3#..RHD	02/1977 - 04/1978	1
88716S - COVER, PIPE OR HOSE, NO.2
88897-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88716T - COVER, PIPE OR HOSE, NO.3
88898-95A01	RH2#,3#..RHD	02/1977 - 04/1978	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95A02	RH2#,3#..RHD LH	02/1977 - 04/1978	1
88717-95A03	RH2#,3#..RHD RH	02/1977 - 04/1978	1
88717-95A05	RH2#,3#..RHD..BUS..GEN RH	04/1978 - 12/1979	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95A02	RH2#,3#..RHD LH	02/1977 - 04/1978	1
88717-95A03	RH2#,3#..RHD RH	02/1977 - 04/1978	1
88717-95A05	RH2#,3#..RHD..BUS..GEN RH	04/1978 - 12/1979	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88717-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
Common parts
88713-87304
88718-14110
88718-95A02
88718-95A04
90099-00914
90099-00919
90099-32084
90099-32085
93540-14008
93540-15010

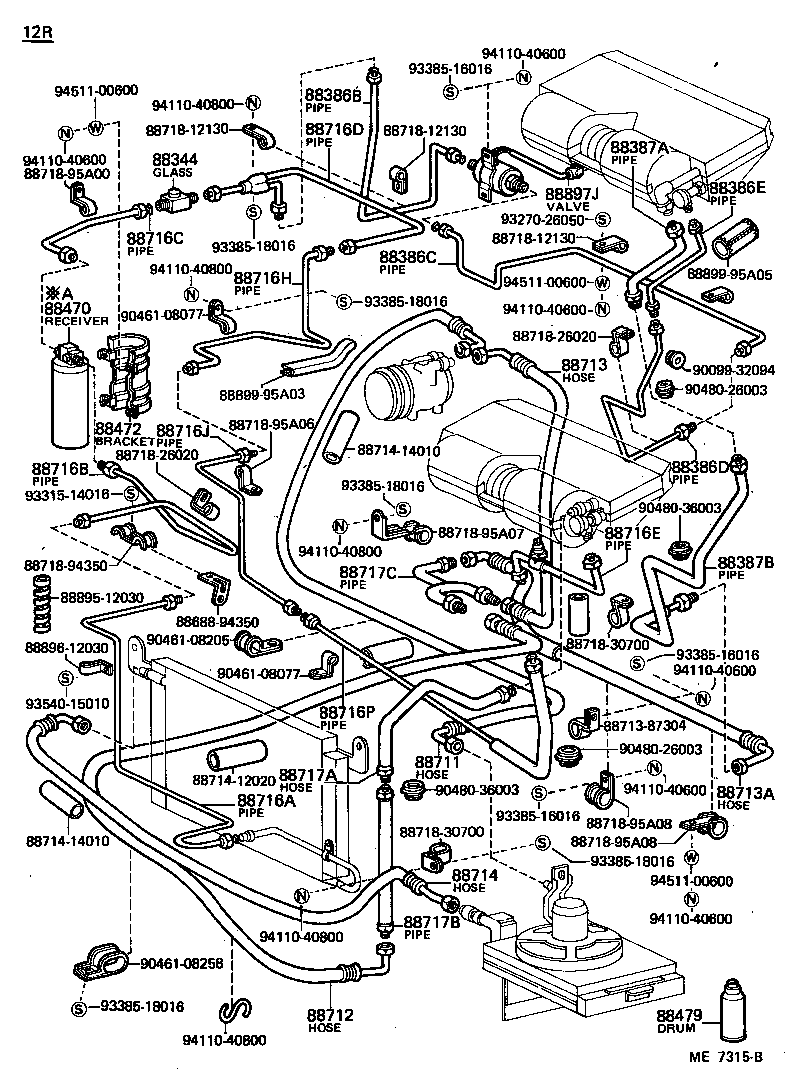

(7804-7912)RH20,30..RHD ; (7804-7912)LHD..12S..EUR ; (7804-7912)RH20,30..LHD..GEN,P

Click highlighted areas on diagram

Part #	Description	Period	Qty
88344 - GLASS SUB-ASSY, SIGHT
88344-30011	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88386B - PIPE, REAR COOLER REFRIGERANT LIQUID, B
88716-95A13	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88386C - PIPE, REAR COOLER REFRIGERANT LIQUID, C
88716-95A14	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88386D - PIPE, REAR COOLER REFRIGERANT LIQUID, D
88716-95A15	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88386E - PIPE, REAR COOLER REFRIGERANT LIQUID, E (TO COOLER UNIT
88716-95A16	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88387A - PIPE, RR COOLER REFRIGERANT SUCTION, A (FROM COOLER UNI
88717-95A07	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88387B - PIPE, REAR COOLER REFRIGERANT SUCTION, B
88717-95A08	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30450	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	5
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95A03	RH20,30..RHD..BUS..GEN	02/1977 - 12/1979	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88712-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95A01	RH2#,3#..RHD	02/1977 - 04/1978	2
88712-95A07	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	2
88713A - HOSE, COOLER REFRIGERANT SUCTION, NO.3
88712-95A08	RH2#,3#..RHD..BUS	04/1978 - 12/1979	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88711-95A04	RH2#,3#..RHD..BUS	04/1978 - 12/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-95A01	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-95A02	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-95A12	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716-95A03	RH2#,3#..RHD	02/1977 - 04/1978	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-95A05	RH2#,3#..RHD	02/1977 - 04/1978	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-95A11	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716-95A06	RH2#,3#..RHD	02/1977 - 04/1978	1
88716J - PIPE, COOLER REFRIGERANT LIQUID, J
88716-95A10	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88716P - PIPE, COOLER REFRIGERANT LIQUID, P
88716-95A09	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95A02	RH2#,3#..RHD LH	02/1977 - 04/1978	1
88717-95A03	RH2#,3#..RHD RH	02/1977 - 04/1978	1
88717-95A05	RH2#,3#..RHD..BUS..GEN RH	04/1978 - 12/1979	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-95A00	RH2#,3#..RHD	02/1977 - 04/1978	1
88717-95A06	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
88897J - VALVE, COOLER MAGNET
88897-95A05	RH2#,3#..RHD..BUS..GEN	04/1978 - 12/1979	1
Common parts
88688-94350
88713-87304
88714-12020
88714-14010
88718-12130
88718-26020
88718-30700
88718-94350
88718-95A00
88718-95A06
88718-95A07
88718-95A08
88895-12030
88896-12030
88899-95A03
88899-95A05
90099-32094
90461-08077
90461-08205
90461-08258
90480-26003
90480-36003
93270-26050
93315-14016
93385-16016
93385-18016
93540-15010
94110-40600
94110-40800
94511-00600

(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791

Click highlighted areas on diagram

Part #	Description	Period	Qty
88367 - SHROUD, COOLER BLOWER FAN
88891-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 10/1978	1
88453-95A01	RH2#,3#..RHD..BUS..GEN	10/1978 - 12/1979	1
88460 - CONDENSER ASSY, COOLER
88460-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460-95A01	RH2#,3#..RHD..BUS..GEN W/MOTOR FAN	02/1977 - 12/1979	1
88460 - CONDENSER ASSY, COOLER
88460-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460-95A01	RH2#,3#..RHD..BUS..GEN W/MOTOR FAN	02/1977 - 12/1979	1
88460A - COVER, COOLER CONDENSER
88896-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88898-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-95A01	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88461A - CORE, COOLER CONDENSER
88461-95A00	RH2#,3#..RHD..(ARL,GEN)	02/1977 - 12/1979	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 10/1978	1
88550-95A02	RH2#,3#..RHD..BUS..GEN	10/1978 - 12/1979	1
Common parts
88688-95A10
90099-04910
90099-12405
93315-15016
93385-18014
94612-11000

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780

Click highlighted areas on diagram

Part #	Description	Period	Qty
88367 - SHROUD, COOLER BLOWER FAN
88891-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 10/1978	1
88453-95A01	RH2#,3#..RHD..BUS..GEN	10/1978 - 12/1979	1
88460 - CONDENSER ASSY, COOLER
88460-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460-95A01	RH2#,3#..RHD..BUS..GEN W/MOTOR FAN	02/1977 - 12/1979	1
88460 - CONDENSER ASSY, COOLER
88460-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460-95A01	RH2#,3#..RHD..BUS..GEN W/MOTOR FAN	02/1977 - 12/1979	1
88460A - COVER, COOLER CONDENSER
88896-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88898-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-95A01	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88461A - CORE, COOLER CONDENSER
88461-95A00	RH2#,3#..RHD..(ARL,GEN)	02/1977 - 12/1979	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-95A00	RH2#,3#..RHD..BUS..GEN	02/1977 - 10/1978	1
88550-95A02	RH2#,3#..RHD..BUS..GEN	10/1978 - 12/1979	1
Common parts
88890-95A00
90099-04910
93315-15012
93385-18014
94110-40600
94511-00600
94521-00600
94612-11000

(7702- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88470 - RECEIVER & DRYER ASSY, COOLER
88470-30450	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1
88470B - BOLT, FUSE
90099-04579	RH2#,3#..RHD..BUS..GEN	02/1977 - 12/1979	1

RH30RB-JRE (1977)

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780

(7702-7804)RH22 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-7804)R

(7804-7912)RH20,30..RHD ; (7804-7912)LHD..12S..EUR ; (7804-7912)RH20,30..LHD..GEN,P

(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791

(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780

(7702- )

Part Price Details
