RH30RB-JRE (1977)

Toyota Hiace

Production Feb 1977 - Dec 1980
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )12R#

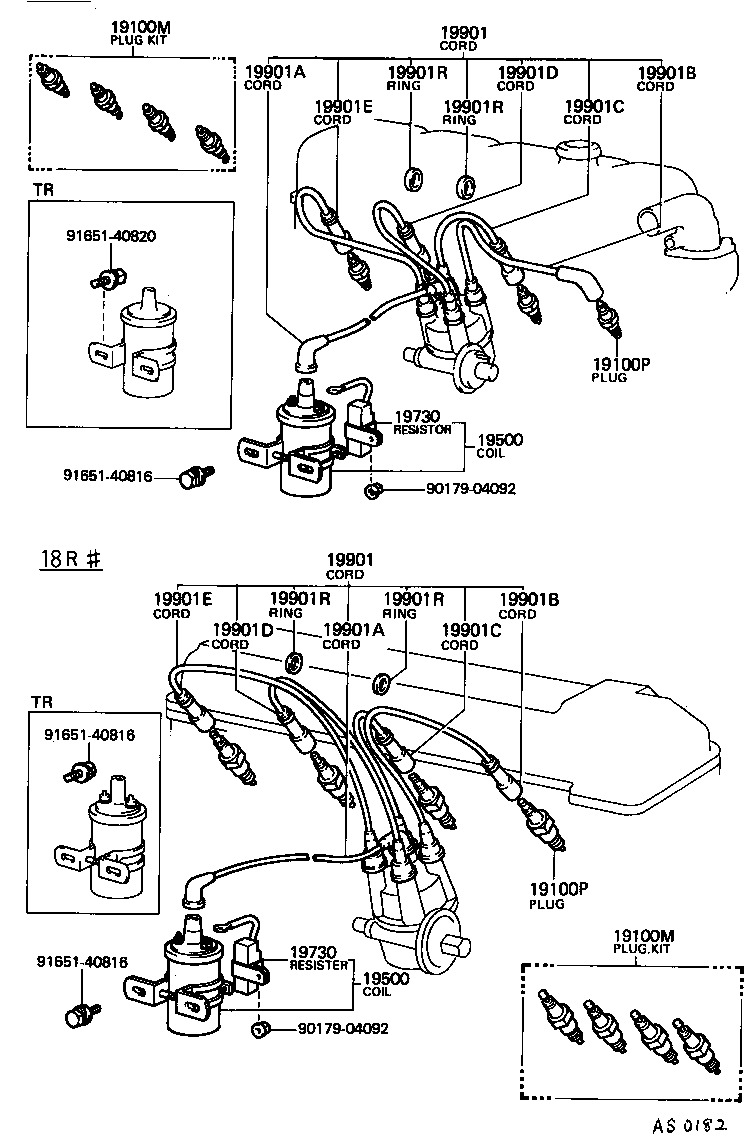

Click highlighted areas on diagram

diagram 19100M 19100M 19100P 19100P 19500 19500 19730 19730 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19901R 19901R 19901R 19901R 9017904092 9017904092 9165140816 9165140816 9165140816 9165140820
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34010

12R#..RH11,20,30..ARL,GEN,IDN,PHL

W16EP

 1
19100M - PLUG KIT, SPARK
04195-34010

12R#..RH11,20,30..ARL,GEN,IDN,PHL

W16EP

 1
19100P - PLUG, SPARK
90919-01051

12R..RH11,20,30..RHD

W16EPR OR W16EXR-U,W16EPR,HONG KONG SPEC

 4
90919-01027

12R#..RH11,20,30..ARL,GEN,IDN,PHL

W16EP OR W16EX-U,W16EP

 4
19100P - PLUG, SPARK
90919-01051

12R..RH11,20,30..RHD

W16EPR OR W16EXR-U,W16EPR,HONG KONG SPEC

 4
90919-01027

12R#..RH11,20,30..ARL,GEN,IDN,PHL

W16EP OR W16EX-U,W16EP

 4
19500 - COIL ASSY, IGNITION
90919-02079

12R#,18R..RH2#,3#,42

 1
90919-02079

12R#..RH20,30

 1
90919-02105

12R#..RH20,30

 1
19500 - COIL ASSY, IGNITION
90919-02079

12R#,18R..RH2#,3#,42

 1
90919-02079

12R#..RH20,30

 1
90919-02105

12R#..RH20,30

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

12R#,18R..RH2#,3#,42

 1
19730 - RESISTOR, IGNITION COIL
90919-04032

12R#,18R..RH2#,3#,42

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21107

12R#..RH11,20,30

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21107

12R#..RH11,20,30

 1
19901A - CORD, COIL RESISTIVE
90919-13044

12R#..RH11,20,30

 1
19901A - CORD, COIL RESISTIVE
90919-13044

12R#..RH11,20,30

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12082

12R#..RH11,20,30

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12082

12R#..RH11,20,30

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12145

12R#..RH11,20,30

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12145

12R#..RH11,20,30

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12145

12R#..RH11,20,30

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12145

12R#..RH11,20,30

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

12R#,18R..RH11,2#,3#,42

 1
90919-12146

12R#..RH11,20,30

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12146

12R#,18R..RH11,2#,3#,42

 1
90919-12146

12R#..RH11,20,30

 1
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RH11,2#,3#,42

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RH11,2#,3#,42

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RH11,2#,3#,42

 2
19901R - RING, RUBBER SPARK PLUG RESISTIVE CORD
90202-11067

12R#,18R..RH11,2#,3#,42

 2
Common parts
90179-04092
91651-40816
91651-40820
