RH30LV-JRFEW (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

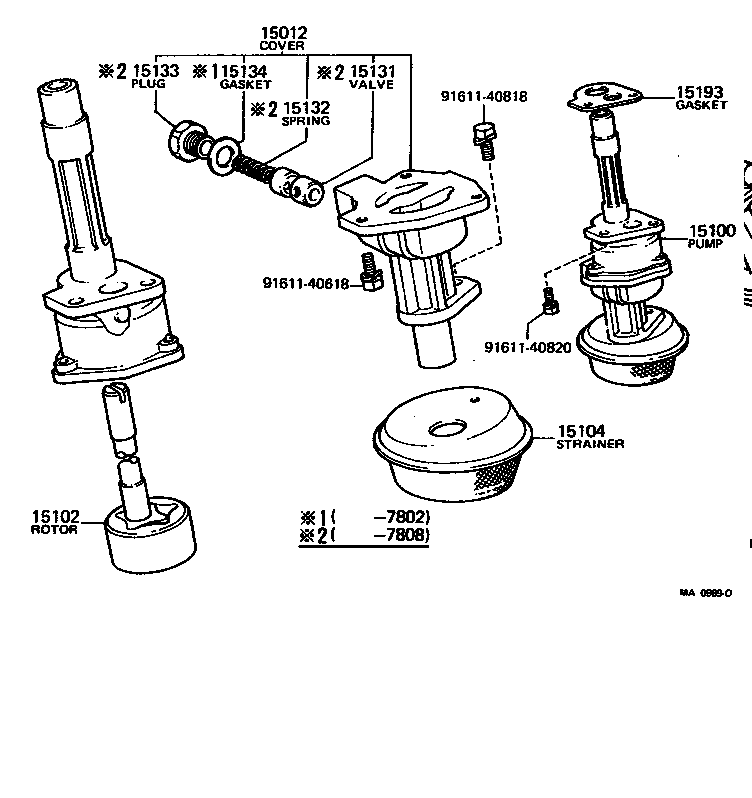

(7702- )18R ; (7808- )12R#

Click highlighted areas on diagram

diagram 15012 15100 15102 15104 15131 15132 15133 15134 15193 9161140618 9161140818 9161140820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-31040

12R#..RH11,20,30

 1
15100-31030

12R#..RH11,20,30

 1
15102 - ROTOR SET, OIL PUMP
15101-31011

12R#..RH11,20,30

 1
15101-31010

12R#..RH11,20,30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-54030

L..LH11,20,30

 1
15104-31030

12R#..RH11,20,30

 1
15104-54031

L..LH11,20,30

 1
15104-54032

L..LH11,20,30

 1
15131 - VALVE, OIL PUMP RELIEF
15131-40010

12R#..RH11,20,30

 1
15131-24010

12R#..RH11,20,30

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

12R#..RH11,20,30

 1
15132-40010

12R#,18R..RH11,2#,3#,42

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

12R,18R..RH11,2#,3#,42

 1
15133-41030

12R#..RH11,20,30

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

12R,18R..RH11,2#,3#,42

 1
Common parts
91611-40618
91611-40818
91611-40820

(7702-7808)12R#

Click highlighted areas on diagram

diagram 15100 15102 15104 15115 15131 15132 15133 15134 1518840010 15413 15413A 15413A 15413B 15413B 15413C 15413C 9034453008 9161140620 9161140620 9161140820
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-31040

12R#..RH11,20,30

 1
15100-31030

12R#..RH11,20,30

 1
15102 - ROTOR SET, OIL PUMP
15101-31011

12R#..RH11,20,30

 1
15101-31010

12R#..RH11,20,30

 1
15104 - STRAINER SUB-ASSY, OIL
15104-54030

L..LH11,20,30

 1
15104-31030

12R#..RH11,20,30

 1
15104-54031

L..LH11,20,30

 1
15104-54032

L..LH11,20,30

 1
15115 - COVER, OIL PUMP
15115-54010

L..LH11,20,30

 1
15012-31040

12R#..RH11,20,30

 1
15115-54011

L..LH11,20,30

 1
15012-31031

12R#..RH11,20,30

 1
15115-31030

12R..RH11,20,30

 1
15131 - VALVE, OIL PUMP RELIEF
15131-40010

12R#..RH11,20,30

 1
15131-24010

12R#..RH11,20,30

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-40010

12R#..RH11,20,30

 1
15132-40010

12R#,18R..RH11,2#,3#,42

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

12R,18R..RH11,2#,3#,42

 1
15133-41030

12R#..RH11,20,30

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

12R,18R..RH11,2#,3#,42

 1
15413 - PIPE, OIL PUMP OUTLET
15413-31010

12R#..RH11,20,30

 1
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

12R#..RH11,20,30

 2
15413A - UNION(FOR OIL PUMP OUTLET PIPE)
90404-16008

12R#..RH11,20,30

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

12R#..RH11,20,30

 2
15413B - SLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
90410-11005

12R#..RH11,20,30

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

12R#..RH11,20,30

 2
15413C - NUT, UNION(FOR OIL PUMP OUTLET PIPE)
90402-16042

12R#..RH11,20,30

 2
Common parts
15188-40010
90344-53008
91611-40620
91611-40820

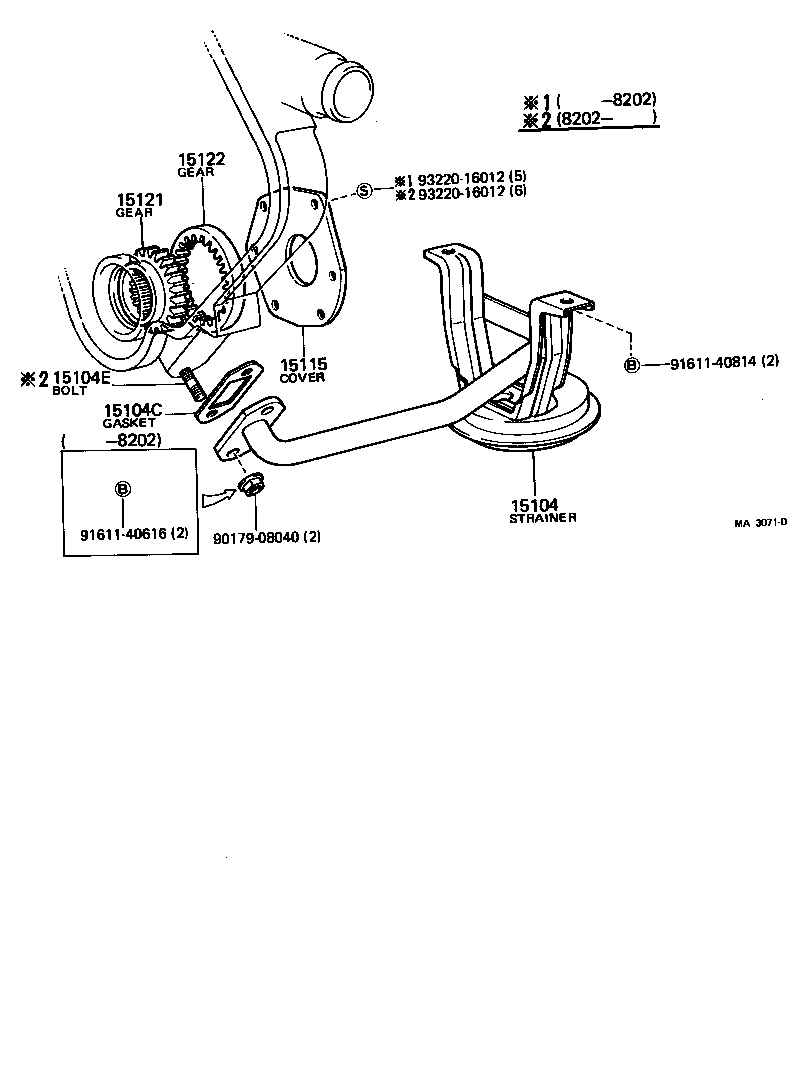

(7901- )L

Click highlighted areas on diagram

diagram 15104 15104C 15104E 15115 15121 15122 9017908040 9161140616 9161140814 9322016012 9322016012
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-54030

L..LH11,20,30

 1
15104-31030

12R#..RH11,20,30

 1
15104-54031

L..LH11,20,30

 1
15104-54032

L..LH11,20,30

 1
15104C - GASKET(FOR OIL STRAINER)
15149-54010

L..LH11,20,30

 1
15149-54011

L..LH11,20,30

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
92122-40816

L..LH11,20,30

 2
15115 - COVER, OIL PUMP
15115-54010

L..LH11,20,30

 1
15012-31040

12R#..RH11,20,30

 1
15115-54011

L..LH11,20,30

 1
15012-31031

12R#..RH11,20,30

 1
15115-31030

12R..RH11,20,30

 1
15121 - GEAR, OIL PUMP DRIVE
15121-54010

L..LH11,20,30

 1
15121-38020

L..LH11,20,30

 1
15122 - GEAR, OIL PUMP DRIVEN
15122-54010

L..LH11,20,30

 1
15122-38020

L..LH11,20,30

 1
Common parts
90179-08040
91611-40616
91611-40814
93220-16012
