RH30LV-JRFEM (1977)

Toyota Hiace

Production Nov 1977 - Apr 1979
Engine 12RM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR; (7702-7912)RH20..ARL,GEN ; (7912-

Click highlighted areas on diagram

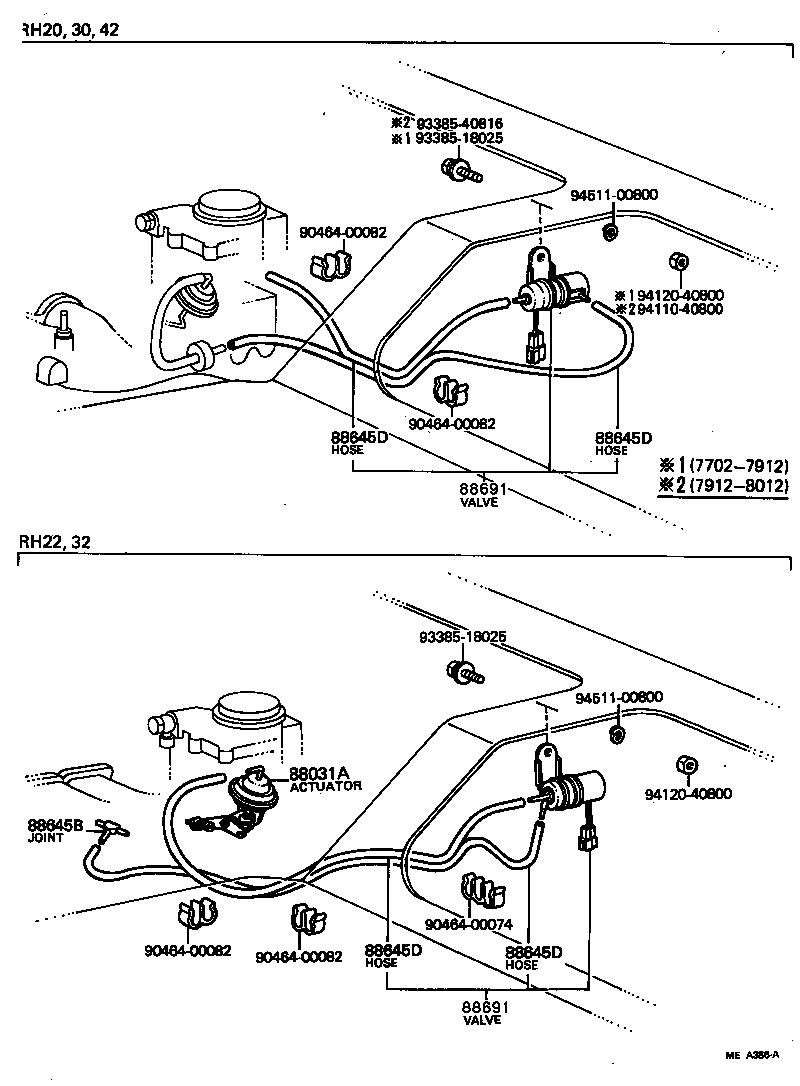

diagram 2182936120 87293E 88031 88031A 88031G 88603 88603 88603 88630E 88645B 88645D 88645D 88645D 88645D 88645D 88645D 88691 88691 88691 9046400082 9046400082 9046400082 9046400082 9338518025 9338518025 9338518025 9411040800 9412040800 9412040800 9412040800 9451100800 9451100800 9451100800
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-26010

RH30..06S

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

RH30..06S

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95A03

RH30..06S

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95A03

RH30..06S

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95A03

RH30..06S

 1
Common parts
21829-36120
90464-00082
93385-18025
94110-40800
94120-40800
94511-00800

(7702-7912)RH22,42 ; (7702-7912)RH20,3#..RHD ; (7702-7912)LHD..12S..EUR ; (7702-791

Click highlighted areas on diagram

diagram 88031A 88645B 88645D 88645D 88645D 88645D 88691 88691 9046400074 9046400082 9046400082 9046400082 9046400082 9338518025 9338518025 9338540816 9411040800 9412040800 9412040800 9451100800 9451100800
Part # Description Qty Price
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

RH30..06S

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88645D - HOSE (FOR IDLE UP DEVICE)
95411-10060

RH30..06S

*H,L=570,MARK=#0

 1
95411-19960

RH30..06S

*H,L=600,MARK=#*

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95A03

RH30..06S

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-95A03

RH30..06S

 1
Common parts
90464-00074
90464-00082
93385-18025
93385-40816
94110-40800
94120-40800
94511-00800
