RH30LV-JRFEM (1977)

Toyota Hiace

Production Nov 1977 - Apr 1979
Engine 12RM
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

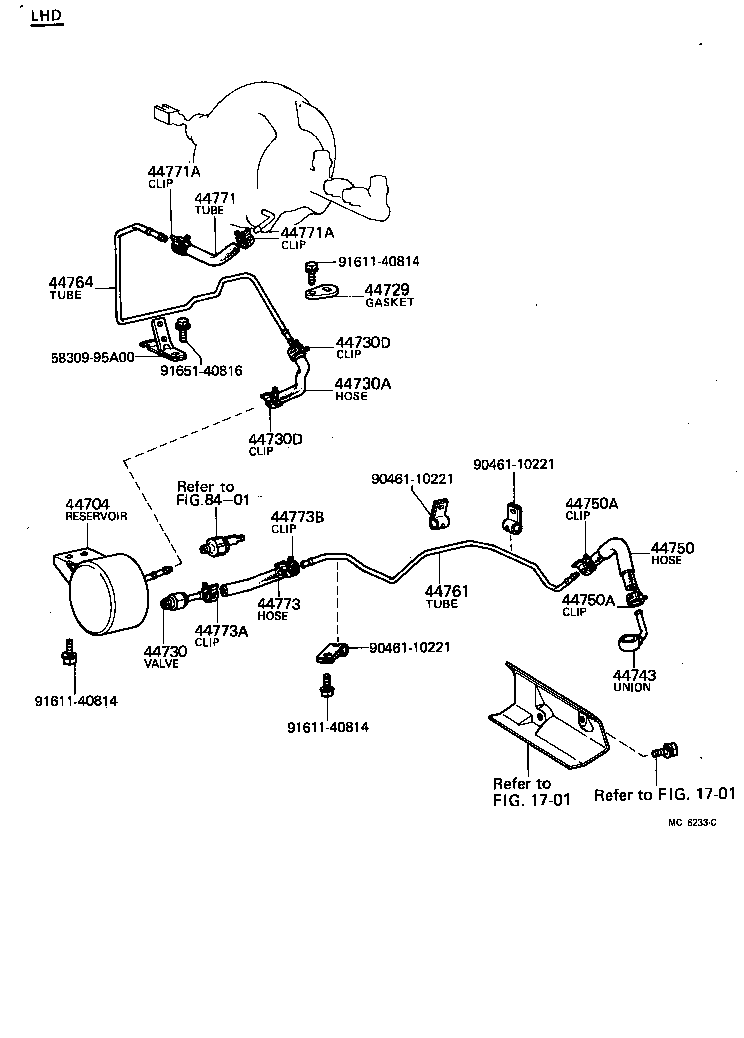

(7901- )LH11,20,30..LHD

Click highlighted areas on diagram

diagram 1701 1701 44704 44729 44730 44730A 44730D 44730D 44743 44750 44750A 44750A 44761 44764 44771 44771A 44771A 44773 44773A 44773B 5830995A00 8401 9046110221 9046110221 9046110221 9161140814 9161140814 9161140814 9165140816
Part # Description Qty Price
44729 - GASKET, VACUUM TUBE
44729-26010

LH11,20,30,RH11,2#,3#,42

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

RH11,2#,3#,42

 1
44730A - HOSE, VACUUM, NO.1
90445-17893

LH11,20,30,RH11,2#,3#,42

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-26040

RH11,2#,3#,42

 1
44764 - TUBE, BOOSTER VACUUM
44764-26030

LH11,20,30,RH11,2#,3#..LHD

 1
44773 - HOSE, VACUUM, NO.2
90445-17895

RH11,20,30

 1
Common parts
58309-95A00
90461-10221
91611-40814
91651-40816
Linked diagrams
1701
8401

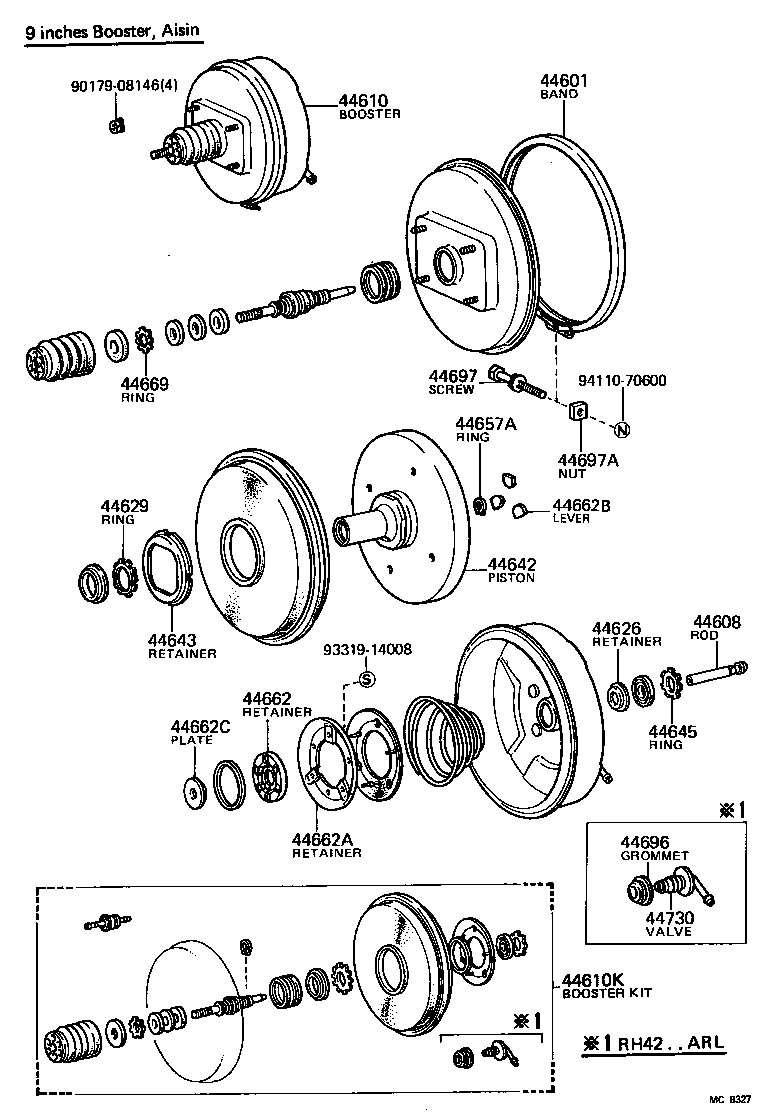

(7901- )LH11,20,30..EUR ; (8107- )LH11,20..LHD..03S,06S..GEN ; (8112- )

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44669 44696 44697 44697A 44730 9017908146 9331914008 9411070600
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-30050

RH11,20,22,3#,42..(BUS,TR,V)..(ARL,EUR,GEN,PHL)

6,7.5IN BOOSTER

 1
44610 - BOOSTER ASSY, BRAKE
44610-26060

RH11,20,22,3#,42..BUS,TR,V

7.5IN BOOSTER

 1
44610-26080

RH11,20,22,3#,42..BUS,TR,V

6IN BOOSTER

 1
44610K - BOOSTER KIT, BRAKE
04443-26020

RH11,20,22,3#,42..BUS,TR,V

6IN BOOSTER

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

LH11,20,30,RH11,20,22,3#,42..BUS,TR,V

AISIN

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

LH11,20,30,RH11,20,22,3#,42..ARL,EUR,GEN,PHL

7.5IN BOOSTER

 1
44642-14190

LH20,30,RH11,20,22,3#,42..BUS,TR,V

6IN BOOSTER

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

LH11,20,30,RH11,20,22,3#,42..BUS,TR,V

AISIN

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44628-60010

LH11,20,30,RH11,20,22,3#,42..BUS,TR,V

AISIN

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

LH11,20,30,RH11,20,22,3#,42..BUS,TR,V

AISIN

 1
44662 - RETAINER, REACTION, NO.1
44662-14190

RH11,20,22,3#,42..BUS,TR,V

6IN BOOSTER

 1
44662B - LEVER, REACTION
44661-14190

RH11,20,22,3#,42..(BUS,TR,V)..(ARL,EUR,GEN,PHL)

AISIN

 3
44662C - PLATE, REACTION, NO.1
44653-12070

RH11,20,22,3#,42..BUS,TR,V

6IN BOOSTER

 1
44653-20100

RH11,20,22,3#,42..ARL,EUR,GEN,PHL

7.5IN BOOSTER

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

LH11,20,30,RH11,20,22,3#,42..BUS,TR,V

AISIN

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20010

RH11,2#,3#,42

 1
Common parts
90179-08146
93319-14008
94110-70600
