RH30LV-JRF (1977)
Toyota Hiace

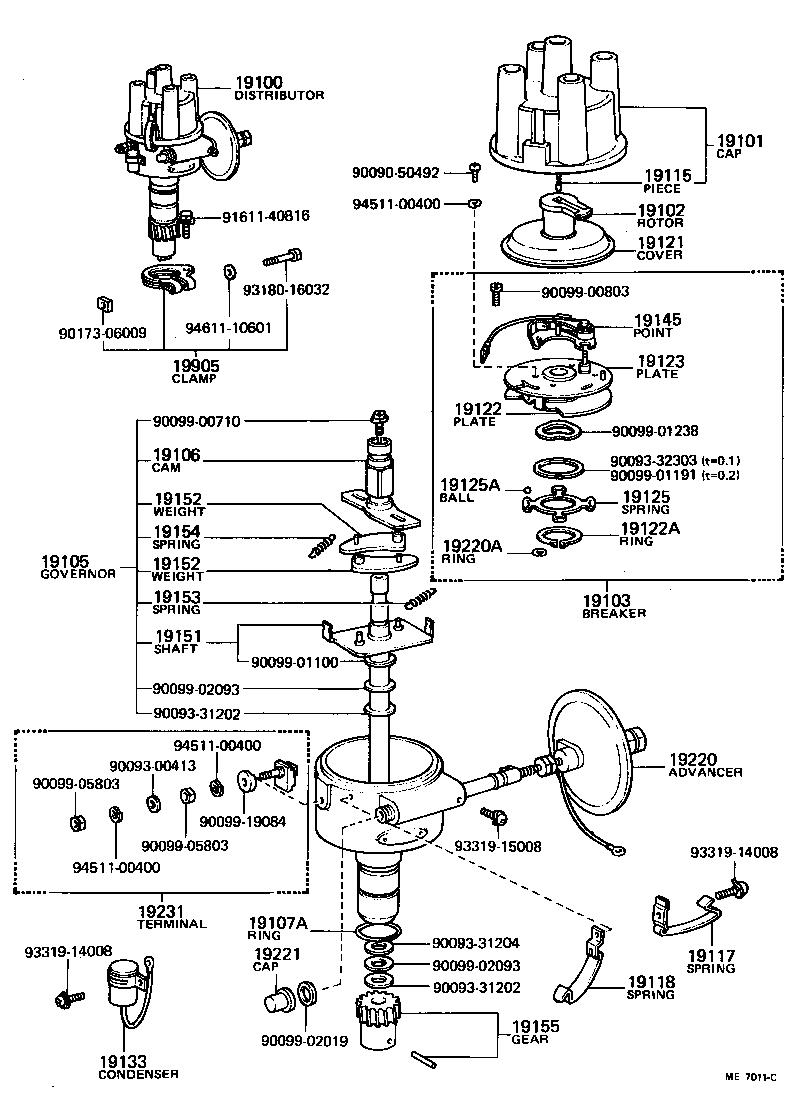

(7702-7912)12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-31021 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19100-31021 |
12R#..RH11,20,30..GEN,IDN,PHL |
1 | ||
| 19100-31100 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-31013 |
12R#..RH11,20,30 |
1 | ||
| 19101-25070 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19101-25070 |
12R..RH11,20,30 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-22010 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19102-22012 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 19102-33012 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-22011 |
12R#..RH11,20,30 |
1 | ||
| 19103-33013 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19103-33013 |
12R..RH11,20,30 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19105-31030 |
12R..RH11,20,30 |
1 | ||
| 19105-31021 |
12R#..RH11,20,30 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19106-31030 |
12R..RH11,20,30 |
1 | ||
| 19106-31010 |
12R#..RH11,20,30 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19117 - SPRING, DISTRIBUTOR CAP, A | ||||
| 19117-30030 |
12R#..RH11,20,30 |
1 | ||
| 19118 - SPRING, DISTRIBUTOR CAP, B | ||||
| 19118-30030 |
12R#..RH11,20,30 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
12R..RH11,20,30 |
1 | ||
| 19121-10010 |
12R#..RH11,20,30 |
1 | ||
| 19121-38030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
12R#..RH11,20,30 |
1 | ||
| 19122-33013 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19122-33013 |
12R..RH11,20,30 |
1 | ||
| 19122A - RING, SNAP(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 90099-07081 |
12R#..RH11,20,30 |
1 | ||
| 19123 - PLATE, DISTRIBUTOR BREAKER | ||||
| 19123-41011 |
12R#..RH11,20,30 |
1 | ||
| 19125 - SPRING(FOR DISTRIBUTOR STATIONARY PLATE) | ||||
| 19125-30010 |
12R#..RH11,20,30 |
1 | ||
| 19125A - BALL, DISTRIBUTOR STATIONARY PLATE | ||||
| 90099-12003 |
12R#..RH11,20,30 |
4 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52060 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 90099-52059 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-22031 |
12R#..RH11,20,30 |
1 | ||
| 19151-24081 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19151-24081 |
12R..RH11,20,30 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RH11,20,30 |
2 | ||
| 19152-45060 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19152-45060 |
12R..RH11,20,30 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RH11,20,30 |
2 | ||
| 19152-45060 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19152-45060 |
12R..RH11,20,30 |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-31021 |
12R#..RH11,20,30 |
1 | ||
| 19153-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19153-31030 |
12R..RH11,20,30 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19154-31030 |
12R..RH11,20,30 |
1 | ||
| 19154-31021 |
12R#..RH11,20,30 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-31020 |
12R#..RH11,20,30 |
1 | ||
| 19195-31031 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19195-31031 |
12R..RH11,20,30 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-31020 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19220-31020 |
12R#..RH11,20,30 |
1 | ||
| 19220-31020 |
12R#..RH11,20,30..GEN,IDN,PHL |
1 | ||
| 19220-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19220A - RING, SNAP(FOR DISTRIBUTOR VACUUM ADVANCER) | ||||
| 90099-07104 |
12R#..RH11,20,30 |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19221-30030 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19221-30030 |
12R#,18R..RH11,20,22,3#,42..ARL,GEN,IDN,PHL,SA |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-22010 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19231-22010 |
12R#..RH11,20,30 |
1 | ||
| 19231-24140 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19231-24140 |
12R..RH11,20,30 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19905-40010 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90090-50492 | ||||
| 90093-00413 | ||||
| 90093-31202 | ||||
| 90093-31204 | ||||
| 90093-32303 | ||||
| 90099-00710 | ||||
| 90099-00803 | ||||
| 90099-01100 | ||||
| 90099-01191 | ||||
| 90099-01238 | ||||
| 90099-02019 | ||||
| 90099-02093 | ||||
| 90099-05803 | ||||
| 90099-19084 | ||||
| 90173-06009 | ||||
| 91611-40816 | ||||
| 93180-16032 | ||||
| 93319-14008 | ||||
| 93319-15008 | ||||
| 94511-00400 | ||||
| 94611-10601 | ||||

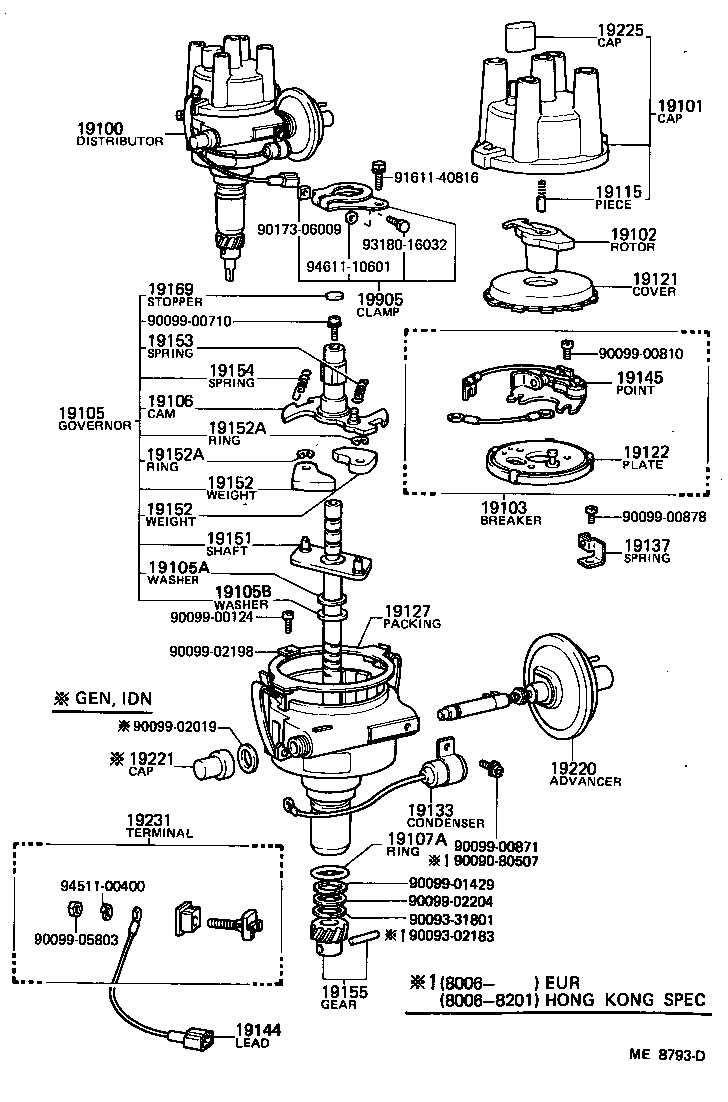

(7912- )12R..GEN,IDN ; (8001- )12R..RH11,20..ARL ; (8006- )12R..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19100-31021 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19100-31021 |
12R#..RH11,20,30..GEN,IDN,PHL |
1 | ||
| 19100-31100 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-31013 |
12R#..RH11,20,30 |
1 | ||
| 19101-25070 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19101-25070 |
12R..RH11,20,30 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-22010 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19102-22012 |
12R..RH11,20,30..ARL,GEN,IDN |
1 | ||
| 19102-33012 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19103 - BREAKER SUB-ASSY, DISTRIBUTOR | ||||
| 19103-22011 |
12R#..RH11,20,30 |
1 | ||
| 19103-33013 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19103-33013 |
12R..RH11,20,30 |
1 | ||
| 19105 - GOVERNOR SUB-ASSY | ||||
| 19105-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19105-31030 |
12R..RH11,20,30 |
1 | ||
| 19105-31021 |
12R#..RH11,20,30 |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01385 |
12R..RH11,20,30..GEN,IDN T=2.5 |
1 | ||
| 90099-01385 |
12R..RH11,20,30 T=2.5 |
1 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01429 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 90099-01429 |
12R..RH11,20,30 |
1 | ||
| 19106 - CAM SUB-ASSY, DISTRIBUTOR | ||||
| 19106-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19106-31030 |
12R..RH11,20,30 |
1 | ||
| 19106-31010 |
12R#..RH11,20,30 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-50010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-38030 |
12R..RH11,20,30 |
1 | ||
| 19121-10010 |
12R#..RH11,20,30 |
1 | ||
| 19121-38030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19122 - PLATE, STATIONARY, DISTRIBUTOR | ||||
| 19122-29021 |
12R#..RH11,20,30 |
1 | ||
| 19122-33013 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19122-33013 |
12R..RH11,20,30 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-88251 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19127-88251 |
12R..RH11,20,30 |
1 | ||
| 19133 - CONDENSER, DISTRIBUTOR | ||||
| 90099-52060 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 90099-52059 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19137 - SPRING SUB-ASSY, DAMPER | ||||
| 19137-33012 |
12R..RH11,20,30 |
1 | ||
| 19137-33012 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-34180 |
12R..RH11,20,30 |
1 | ||
| 19145 - POINT, DISTRIBUTOR | ||||
| 19145-26060 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19151 - SHAFT, GOVERNOR | ||||
| 19151-22031 |
12R#..RH11,20,30 |
1 | ||
| 19151-24081 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19151-24081 |
12R..RH11,20,30 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RH11,20,30 |
2 | ||
| 19152-45060 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19152-45060 |
12R..RH11,20,30 |
2 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-87104 |
12R#..RH11,20,30 |
2 | ||
| 19152-45060 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19152-45060 |
12R..RH11,20,30 |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07104 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07104 |
12R..RH11,20,30..GEN,IDN |
2 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-31021 |
12R#..RH11,20,30 |
1 | ||
| 19153-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19153-31030 |
12R..RH11,20,30 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19154-31030 |
12R..RH11,20,30 |
1 | ||
| 19154-31021 |
12R#..RH11,20,30 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-31020 |
12R#..RH11,20,30 |
1 | ||
| 19195-31031 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19195-31031 |
12R..RH11,20,30 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-32010 |
12R..RH11,20,30 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-31020 |
12R#..RH11,20,30..ARL,GEN,IDN,PHL |
1 | ||
| 19220-31020 |
12R#..RH11,20,30 |
1 | ||
| 19220-31020 |
12R#..RH11,20,30..GEN,IDN,PHL |
1 | ||
| 19220-31030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19221 - CAP, ADJUSTER, DISTRIBUTOR | ||||
| 19221-30030 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19221-30030 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 19221-30030 |
12R#,18R..RH11,20,22,3#,42..ARL,GEN,IDN,PHL,SA |
1 | ||
| 19225 - CAP, RUBBER | ||||
| 19225-25070 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19225-25070 |
12R..RH11,20,30 |
1 | ||
| 19231 - TERMINAL, DISTRIBUTOR | ||||
| 19231-22010 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19231-22010 |
12R#..RH11,20,30 |
1 | ||
| 19231-24140 |
12R..RH11,20,30..GEN,IDN |
1 | ||
| 19231-24140 |
12R..RH11,20,30 |
1 | ||
| 19905 - CLAMP SUB-ASSY, DISTRIBUTOR | ||||
| 19905-40010 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 90090-80507 | ||||
| 90093-02183 | ||||
| 90093-31801 | ||||
| 90099-00124 | ||||
| 90099-00710 | ||||
| 90099-00810 | ||||
| 90099-00871 | ||||
| 90099-00878 | ||||
| 90099-01429 | ||||
| 90099-02019 | ||||
| 90099-02198 | ||||
| 90099-02204 | ||||
| 90099-05803 | ||||
| 90173-06009 | ||||
| 91611-40816 | ||||
| 93180-16032 | ||||
| 94511-00400 | ||||
| 94611-10601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
