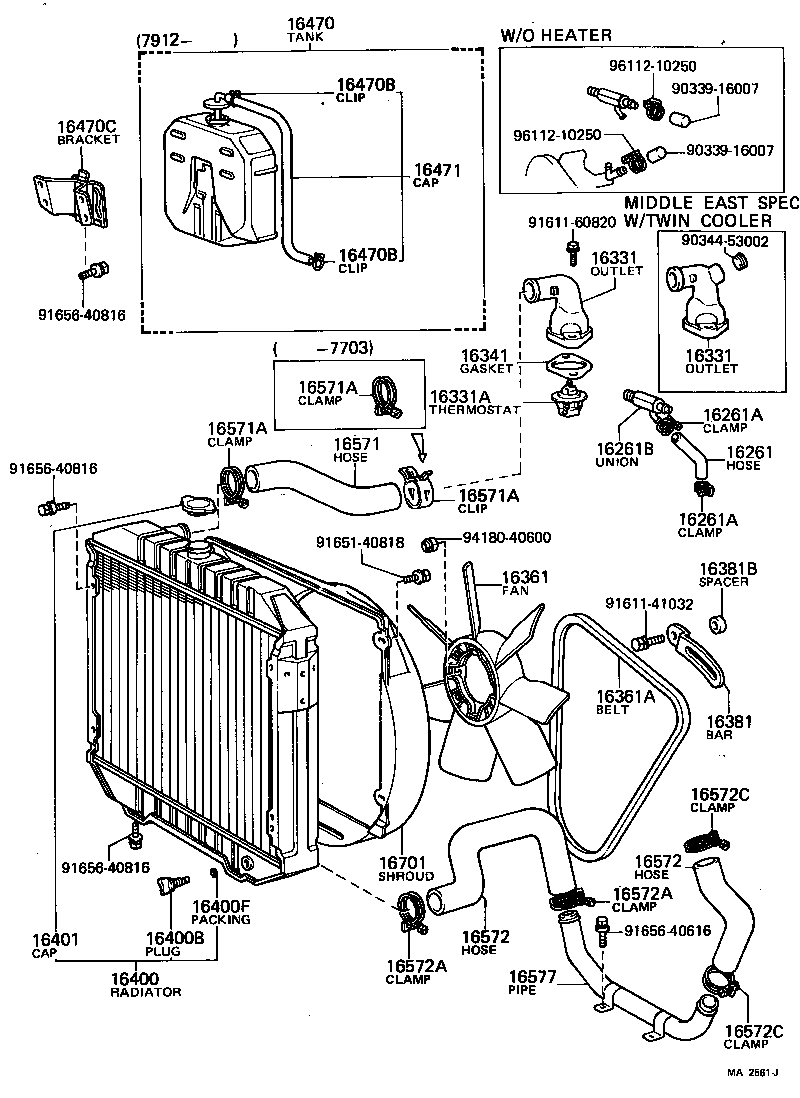

RH22RV-JRE (1977)
Toyota Hiace
(7702- )18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90910-05106 |
18R..RH22,25,32,42 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10160 |
18R..RH22,25,32,42 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10160 |
18R..RH22,25,32,42 |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-17005 |
18R..RH22,25,32,42 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-36012 |
18R..RH22,32,42 |
1 | ||
| 16331-36012 |
18R..RH22,25,32,42..EUR,GEN,SA |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-36012 |
18R..RH22,32,42 |
1 | ||
| 16331-36012 |
18R..RH22,25,32,42..EUR,GEN,SA |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03040 |
18R..RH22,25,32,42 *WAX 88-100,*(K) |
1 | ||
| 90916-03036 |
18R..RH22,25,32,42 *WAX 88-100,*(F) |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-38011 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 16341-49010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16341-38010 |
12R,18R..RH11,2#,3#,42 |
1 | ||
| 16341-38010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16361 - FAN | ||||
| 16361-38010 |
18R..RH22,32,42..ARL,GEN,SA 7 BLADES |
1 | ||
| 16361-38010 |
18R..RH22,32,42..GEN,SA 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99521-10839 |
18R..RH22,32,42 L=839 |
1 | ||
| 99321-00840 |
18R..RH22,25,32,42 L=840 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-34030 |
18R..RH22,25,32,42 |
1 | ||
| 16381B - SPACER, FAN BELT ADJUSTING BAR | ||||
| 90560-10005 |
18R..RH22,25,32,42 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-34230 |
18R..RH22,32,42 |
1 | ||
| 16400-34320 |
18R..RH22,32,42 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24051 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24051 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-23070 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 16401-41021 |
12R,18R..RH11,20,22,3#,42 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-95A07 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16470-95A01 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,18R..RH11,20,22,3#,42 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
12R,18R..RH11,20,22,3#,42 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-95A00 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16402-95A00 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-95A02 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16405-95A03 |
12R,18R..RH20,22,3#,42 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-36041 |
18R..RH22,25,32,42 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
18R..RH22,25,32,42 WATER OUTLET SIDE |
1 | ||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
2 | ||
| 96111-10440 |
18R..RH22,25,32,42 RADIATOR SIDE |
1 | ||
| 96111-10430 |
18R..RH22,32,42 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
18R..RH22,25,32,42 WATER OUTLET SIDE |
1 | ||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
2 | ||
| 96111-10440 |
18R..RH22,25,32,42 RADIATOR SIDE |
1 | ||
| 96111-10430 |
18R..RH22,32,42 RADIATOR SIDE |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
18R..RH22,25,32,42 WATER OUTLET SIDE |
1 | ||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
2 | ||
| 96111-10440 |
18R..RH22,25,32,42 RADIATOR SIDE |
1 | ||
| 96111-10430 |
18R..RH22,32,42 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-36031 |
18R..RH22,25,32,42 ENGINE SIDE |
1 | ||
| 16572-36030 |
18R..RH22,32,42 ENGINE SIDE |
1 | ||
| 16573-34011 |
18R..RH22,25,32,42 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-36031 |
18R..RH22,25,32,42 ENGINE SIDE |
1 | ||
| 16572-36030 |
18R..RH22,32,42 ENGINE SIDE |
1 | ||
| 16573-34011 |
18R..RH22,25,32,42 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
18R..RH22,25,32,42 ID=48 |
1 | ||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
1 | ||
| 96111-10460 |
18R..RH22,25,32,42 ID=46 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10480 |
18R..RH22,25,32,42 ID=48 |
1 | ||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
1 | ||
| 96111-10460 |
18R..RH22,25,32,42 ID=46 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
2 | ||
| 96111-10460 |
18R..RH22,25,32,42 ID=46 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10450 |
18R..RH22,32,42 ID=45 |
2 | ||
| 96111-10460 |
18R..RH22,25,32,42 ID=46 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-36012 |
18R..RH22,25,32,42 |
1 | ||
| 16577-36011 |
18R..RH22,32,42 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-36050 |
18R..RH22,25,32,42 |
1 | ||
| Common parts | ||||
| 90339-16007 | ||||
| 90344-53002 | ||||
| 91611-41032 | ||||
| 91611-60820 | ||||
| 91651-40818 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||
| 94180-40600 | ||||
| 96112-10250 | ||||
