RH20RV-JRQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )4H

Click highlighted areas on diagram

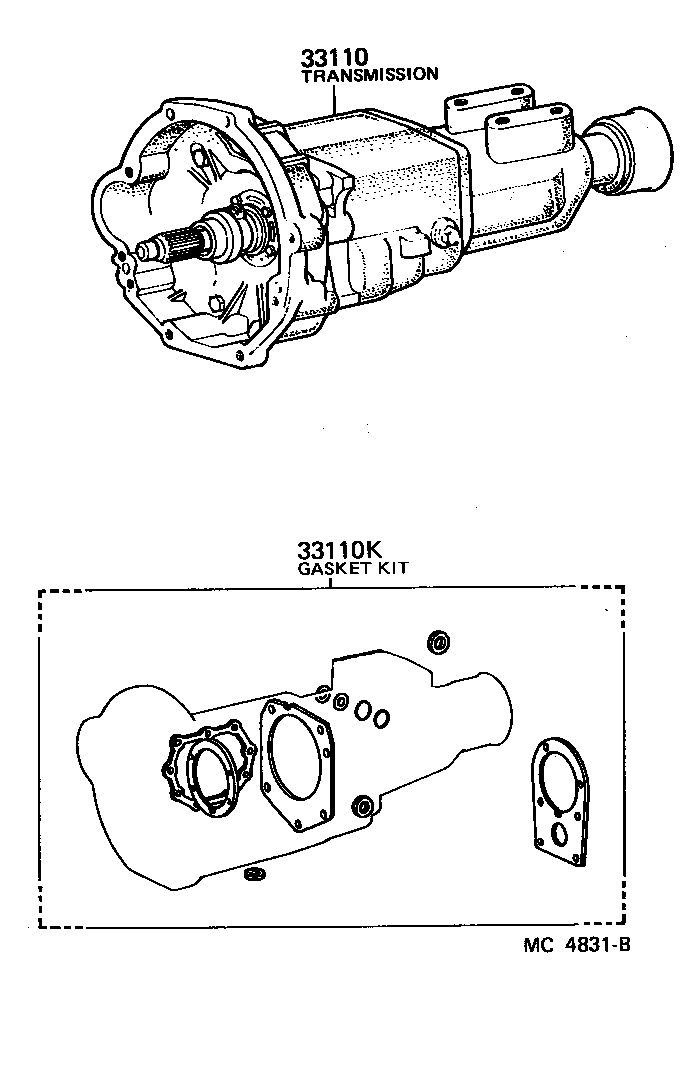

diagram 33110 33110K
Part # Description Qty Price
33110 - TRANSMISSION ASSY, MANUAL
33110-26380

LH11,20

SMG R=20:6

 1
33110-26381

LH11,20

SMG R=20:6

 1
33110-26320

RH11,20,30..ARL,GEN,IDN,PHL

SMG R=16:4

 1
33030-26110

LH11,20,30..4H

SMG R=20:6

 1
33110-26560

LH11,20,30..4H

SMG R=20:6

 1
33110-26360

RH11,20..ARL

SMG R=16:4,*NSW

 1
33030-26150

RH11,20..ARL

SMG R=16:4*,*NSW

 1
33030-26140

RH11,20,30..ARL,GEN

SMG R=16:4

 1
33110K - GASKET KIT, MANUAL TRANSMISSION OVERHAUL
04331-26010

LH11,20,30,RH11,2#,3#,42..4H

 1
