RH20RV-JRQ (1977)
Toyota Hiace

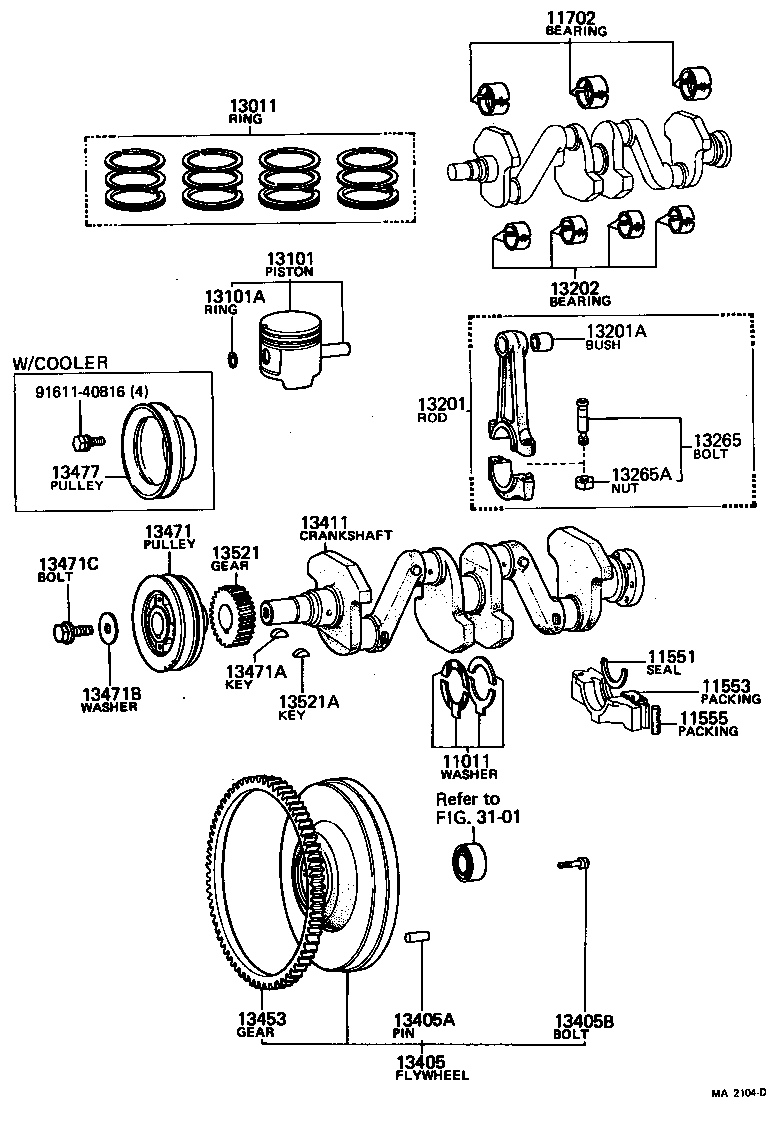

(7702- )12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-31020 |
12R#..RH11,20,30 O/S 0.250 |
1 | ||
| 11014-31020 |
12R#..RH11,20,30 O/S 0.500 |
1 | ||
| 11012-31020 |
12R#..RH11,20,30 O/S 0.125 |
1 | ||
| 11011-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 11011-54010 |
L..LH11,20,30 STD,STD |
1 | ||
| 11012-54010 |
L..LH11,20,30 O/S 0.125,O/S 0.125 |
1 | ||
| 11013-54010 |
L..LH11,20,30 O/S 0.250,O/S 0.250 |
1 | ||
| 11011-31030 |
12R#..RH11,20,30 STD |
1 | ||
| 11551 - SEAL, CRANKSHAFT OIL, REAR | ||||
| 11551-31010 |
12R#..RH11,20,30 |
2 | ||
| 11553 - PACKING, BEARING CAP | ||||
| 11553-31010 |
12R#..RH11,20,30 |
2 | ||
| 11555 - PACKING, BEARING CAP SIDE, NO.1 | ||||
| 11555-23010 |
12R#..RH11,20,30 |
2 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-31020 |
12R#..RH11,20,30 U/S 0.05 |
1 | ||
| 11704-31020 |
12R#..RH11,20,30 U/S 0.25 |
1 | ||
| 11702-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 11704-54010 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 11705-31020 |
12R#..RH11,20,30 U/S 0.50 |
1 | ||
| 11703-54010 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 11705-54010 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 11702-54010 |
L..LH11,20,30 STD |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54041 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13011-54020 |
L..LH11,20,30 STD |
1 | ||
| 13013-54020 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13014-31061 |
12R#..RH11,20,30 O/S 0.75 |
1 | ||
| 13011-54040 |
L..LH11,20,30 STD |
1 | ||
| 13013-54040 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13013-31061 |
12R#..RH11,20,30 O/S 0.50 |
1 | ||
| 13015-31061 |
12R#..RH11,20,30 O/S 1.00 |
1 | ||
| 13011-31061 |
12R#..RH11,20,30 STD |
1 | ||
| 13011-54041 |
L..LH11,20,30 STD |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13105-31021 |
12R#..RH11,20,30 O/S 1.00 |
4 | ||
| 13104-31021 |
12R#..RH11,20,30 O/S 0.75 |
4 | ||
| 13103-31021 |
12R#..RH11,20,30 O/S 0.50 |
4 | ||
| 13101-31022 |
12R#..RH11,20,30 STD |
4 | ||
| 13101-31021 |
12R#..RH11,20,30 STD |
4 | ||
| 13101-54020 |
L..LH11,20,30 STD |
4 | ||
| 13101-54010 |
L..LH11,20,30 STD |
4 | ||
| 13101-31021 |
12R..RH11,20,30 STD |
4 | ||
| 13103-54010 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-54020 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-54021 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-31022 |
12R#..RH11,20,30 O/S 0.50 |
4 | ||
| 13104-31021 |
12R..RH11,20,30 O/S 0.75 |
4 | ||
| 13105-31022 |
12R#..RH11,20,30 O/S 1.00 |
4 | ||
| 13104-31022 |
12R#..RH11,20,30 O/S 0.75 |
4 | ||
| 13105-31021 |
12R..RH11,20,30 O/S 1.00 |
4 | ||
| 13103-31021 |
12R..RH11,20,30 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LH11,20,30 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-23051 |
12R#..RH11,20,30 |
8 | ||
| 90521-29003 |
L..LH11,20,30 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-54010 |
L..LH11,20,30 |
4 | ||
| 13201-59015 |
L..LH11,20,30 |
4 | ||
| 13201-31010 |
12R#..RH11,20,30 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73027 |
12R#..RH11,20,30 |
4 | ||
| 90999-73083 |
L..LH11,20,30 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-54010 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 13205-54011 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13204-54010 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13205-54010 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13203-54011 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 13202-54010 |
L..LH11,20,30 STD |
1 | ||
| 13204-54011 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13205-54012 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13202-54011 |
L..LH11,20,30 STD |
1 | ||
| 13202-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 13203-31020 |
12R#..RH11,20,30 U/S 0.05 |
1 | ||
| 13204-31020 |
12R#..RH11,20,30 U/S 0.25 |
1 | ||
| 13205-31020 |
12R#..RH11,20,30 U/S 0.50 |
1 | ||
| 13204-54012 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39015 |
12R#..RH11,20,30 |
8 | ||
| 13265-59025 |
L..LH11,20,30 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
12R#..RH11,20,30 |
8 | ||
| 90170-10005 |
L..LH11,20,30 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L..LH11,20,30 N=101 |
1 | ||
| 13405-39066 |
12R..RH11,20,30 N=125 |
1 | ||
| 13405-39065 |
12R..RH11,20,30 N=125 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
12R#,18R..RH11,2#,3#,42 L=23,OD=8,L=23,OD=8 |
3 | ||
| 90250-08054 |
L..LH11,20,30 L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01010 |
12R#..RH11,20,30 |
6 | ||
| 90913-01012 |
12R#..RH11,20,30 |
6 | ||
| 90105-12011 |
L..LH11,20,30 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54012 |
L..LH11,20,30 |
1 | ||
| 13411-31011 |
12R#..RH11,20,30 |
1 | ||
| 13401-54010 |
L..LH11,20,30 |
1 | ||
| 13401-54011 |
L..LH11,20,30 |
1 | ||
| 13411-31902 |
12R#..RH11,20,30 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-30010 |
12R#..RH11,20,30 N=125 |
1 | ||
| 13453-54010 |
L..LH11,20,30 N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-31023 |
12R#..RH11,20,30 |
1 | ||
| 13407-31025 |
12R#..RH11,20,30 |
1 | ||
| 13471-54011 |
L..LH11,20,30 |
1 | ||
| 13407-31024 |
12R#..RH11,20,30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L..LH11,20,30 |
1 | ||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13059 |
12R#..RH11,20,30 |
1 | ||
| 90201-14007 |
L..LH11,20,30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
12R#..RH11,20,30 |
1 | ||
| 91511-61435 |
L..LH11,20,30 |
1 | ||
| 90119-14005 |
L..LH11,20,30 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 13477-31010 |
12R..RH11,20,30 W/COOLER |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-31011 |
12R#..RH11,20,30 N=25 |
1 | ||
| 13521-31020 |
12R..RH11,20,30 N=25 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 95161-20622 |
L..LH11,20,30 |
1 | ||
| Common parts | ||||
| 91611-40816 | ||||
| Linked diagrams | ||||
| 3101 | ||||

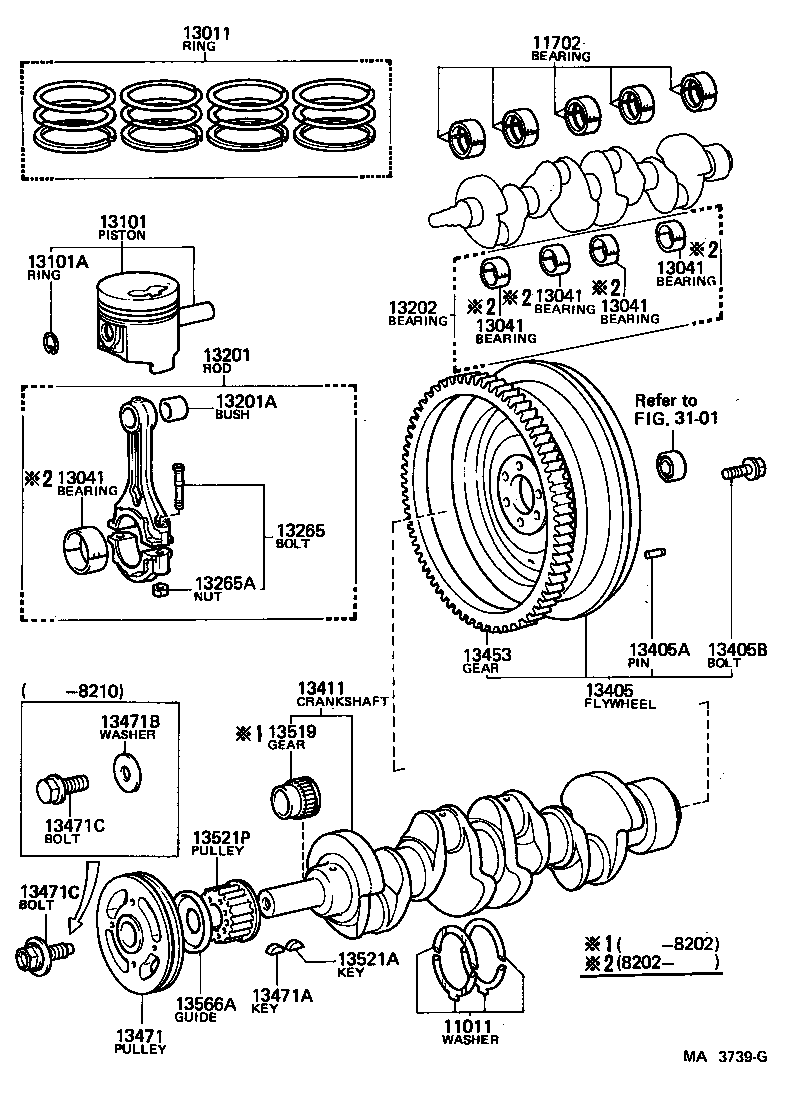

(7901- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11013-31020 |
12R#..RH11,20,30 O/S 0.250 |
1 | ||
| 11014-31020 |
12R#..RH11,20,30 O/S 0.500 |
1 | ||
| 11012-31020 |
12R#..RH11,20,30 O/S 0.125 |
1 | ||
| 11011-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 11011-54010 |
L..LH11,20,30 STD,STD |
1 | ||
| 11012-54010 |
L..LH11,20,30 O/S 0.125,O/S 0.125 |
1 | ||
| 11013-54010 |
L..LH11,20,30 O/S 0.250,O/S 0.250 |
1 | ||
| 11011-31030 |
12R#..RH11,20,30 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11703-31020 |
12R#..RH11,20,30 U/S 0.05 |
1 | ||
| 11704-31020 |
12R#..RH11,20,30 U/S 0.25 |
1 | ||
| 11702-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 11704-54010 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 11705-31020 |
12R#..RH11,20,30 U/S 0.50 |
1 | ||
| 11703-54010 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 11705-54010 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 11702-54010 |
L..LH11,20,30 STD |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-54041 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13011-54020 |
L..LH11,20,30 STD |
1 | ||
| 13013-54020 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13014-31061 |
12R#..RH11,20,30 O/S 0.75 |
1 | ||
| 13011-54040 |
L..LH11,20,30 STD |
1 | ||
| 13013-54040 |
L..LH11,20,30 O/S 0.50 |
1 | ||
| 13013-31061 |
12R#..RH11,20,30 O/S 0.50 |
1 | ||
| 13015-31061 |
12R#..RH11,20,30 O/S 1.00 |
1 | ||
| 13011-31061 |
12R#..RH11,20,30 STD |
1 | ||
| 13011-54041 |
L..LH11,20,30 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH11,20,30 STD,MARK"2",MARK 2 |
4 | ||
| 13041-5401201 |
L..LH11,20,30 STD,MARK"1",MARK 1 |
4 | ||
| 13041-5401203 |
L..LH11,20,30 STD,MARK"3",MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH11,20,30 STD,MARK"2",MARK 2 |
4 | ||
| 13041-5401201 |
L..LH11,20,30 STD,MARK"1",MARK 1 |
4 | ||
| 13041-5401203 |
L..LH11,20,30 STD,MARK"3",MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH11,20,30 STD,MARK"2",MARK 2 |
4 | ||
| 13041-5401201 |
L..LH11,20,30 STD,MARK"1",MARK 1 |
4 | ||
| 13041-5401203 |
L..LH11,20,30 STD,MARK"3",MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH11,20,30 STD,MARK"2",MARK 2 |
4 | ||
| 13041-5401201 |
L..LH11,20,30 STD,MARK"1",MARK 1 |
4 | ||
| 13041-5401203 |
L..LH11,20,30 STD,MARK"3",MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401202 |
L..LH11,20,30 STD,MARK"2",MARK 2 |
4 | ||
| 13041-5401201 |
L..LH11,20,30 STD,MARK"1",MARK 1 |
4 | ||
| 13041-5401203 |
L..LH11,20,30 STD,MARK"3",MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13105-31021 |
12R#..RH11,20,30 O/S 1.00 |
4 | ||
| 13104-31021 |
12R#..RH11,20,30 O/S 0.75 |
4 | ||
| 13103-31021 |
12R#..RH11,20,30 O/S 0.50 |
4 | ||
| 13101-31022 |
12R#..RH11,20,30 STD |
4 | ||
| 13101-31021 |
12R#..RH11,20,30 STD |
4 | ||
| 13101-54020 |
L..LH11,20,30 STD |
4 | ||
| 13101-54010 |
L..LH11,20,30 STD |
4 | ||
| 13101-31021 |
12R..RH11,20,30 STD |
4 | ||
| 13103-54010 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-54020 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-54021 |
L..LH11,20,30 O/S 0.50 |
4 | ||
| 13103-31022 |
12R#..RH11,20,30 O/S 0.50 |
4 | ||
| 13104-31021 |
12R..RH11,20,30 O/S 0.75 |
4 | ||
| 13105-31022 |
12R#..RH11,20,30 O/S 1.00 |
4 | ||
| 13104-31022 |
12R#..RH11,20,30 O/S 0.75 |
4 | ||
| 13105-31021 |
12R..RH11,20,30 O/S 1.00 |
4 | ||
| 13103-31021 |
12R..RH11,20,30 O/S 0.50 |
4 | ||
| 13101-54021 |
L..LH11,20,30 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-23051 |
12R#..RH11,20,30 |
8 | ||
| 90521-29003 |
L..LH11,20,30 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-54010 |
L..LH11,20,30 |
4 | ||
| 13201-59015 |
L..LH11,20,30 |
4 | ||
| 13201-31010 |
12R#..RH11,20,30 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73027 |
12R#..RH11,20,30 |
4 | ||
| 90999-73083 |
L..LH11,20,30 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13203-54010 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 13205-54011 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13204-54010 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13205-54010 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13203-54011 |
L..LH11,20,30 U/S 0.05 |
1 | ||
| 13202-54010 |
L..LH11,20,30 STD |
1 | ||
| 13204-54011 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13205-54012 |
L..LH11,20,30 U/S 0.50 |
1 | ||
| 13202-54011 |
L..LH11,20,30 STD |
1 | ||
| 13202-31020 |
12R#..RH11,20,30 STD |
1 | ||
| 13203-31020 |
12R#..RH11,20,30 U/S 0.05 |
1 | ||
| 13204-31020 |
12R#..RH11,20,30 U/S 0.25 |
1 | ||
| 13205-31020 |
12R#..RH11,20,30 U/S 0.50 |
1 | ||
| 13204-54012 |
L..LH11,20,30 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-39015 |
12R#..RH11,20,30 |
8 | ||
| 13265-59025 |
L..LH11,20,30 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09195 |
12R#..RH11,20,30 |
8 | ||
| 90170-10005 |
L..LH11,20,30 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-59035 |
L..LH11,20,30 N=101 |
1 | ||
| 13405-39066 |
12R..RH11,20,30 N=125 |
1 | ||
| 13405-39065 |
12R..RH11,20,30 N=125 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
12R#,18R..RH11,2#,3#,42 L=23,OD=8,L=23,OD=8 |
3 | ||
| 90250-08054 |
L..LH11,20,30 L=23,OD=8,L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01010 |
12R#..RH11,20,30 |
6 | ||
| 90913-01012 |
12R#..RH11,20,30 |
6 | ||
| 90105-12011 |
L..LH11,20,30 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54012 |
L..LH11,20,30 |
1 | ||
| 13411-31011 |
12R#..RH11,20,30 |
1 | ||
| 13401-54010 |
L..LH11,20,30 |
1 | ||
| 13401-54011 |
L..LH11,20,30 |
1 | ||
| 13411-31902 |
12R#..RH11,20,30 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-30010 |
12R#..RH11,20,30 N=125 |
1 | ||
| 13453-54010 |
L..LH11,20,30 N=101 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13407-31023 |
12R#..RH11,20,30 |
1 | ||
| 13407-31025 |
12R#..RH11,20,30 |
1 | ||
| 13471-54011 |
L..LH11,20,30 |
1 | ||
| 13407-31024 |
12R#..RH11,20,30 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
L..LH11,20,30 |
1 | ||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 13471B - WASHER, PLATE(FOR CRANKSHAFT PULLEY SET) | ||||
| 90209-13059 |
12R#..RH11,20,30 |
1 | ||
| 90201-14007 |
L..LH11,20,30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
12R#..RH11,20,30 |
1 | ||
| 91511-61435 |
L..LH11,20,30 |
1 | ||
| 90119-14005 |
L..LH11,20,30 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12050 |
12R#..RH11,20,30 |
1 | ||
| 91511-61435 |
L..LH11,20,30 |
1 | ||
| 90119-14005 |
L..LH11,20,30 |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-54011 |
L..LH11,20,30 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-10519 |
12R#..RH11,20,30 |
1 | ||
| 95161-20622 |
L..LH11,20,30 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54010 |
L..LH11,20,30 N=21 |
1 | ||
| 13521-54020 |
L..LH11,20,30 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
L..LH11,20,30 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
