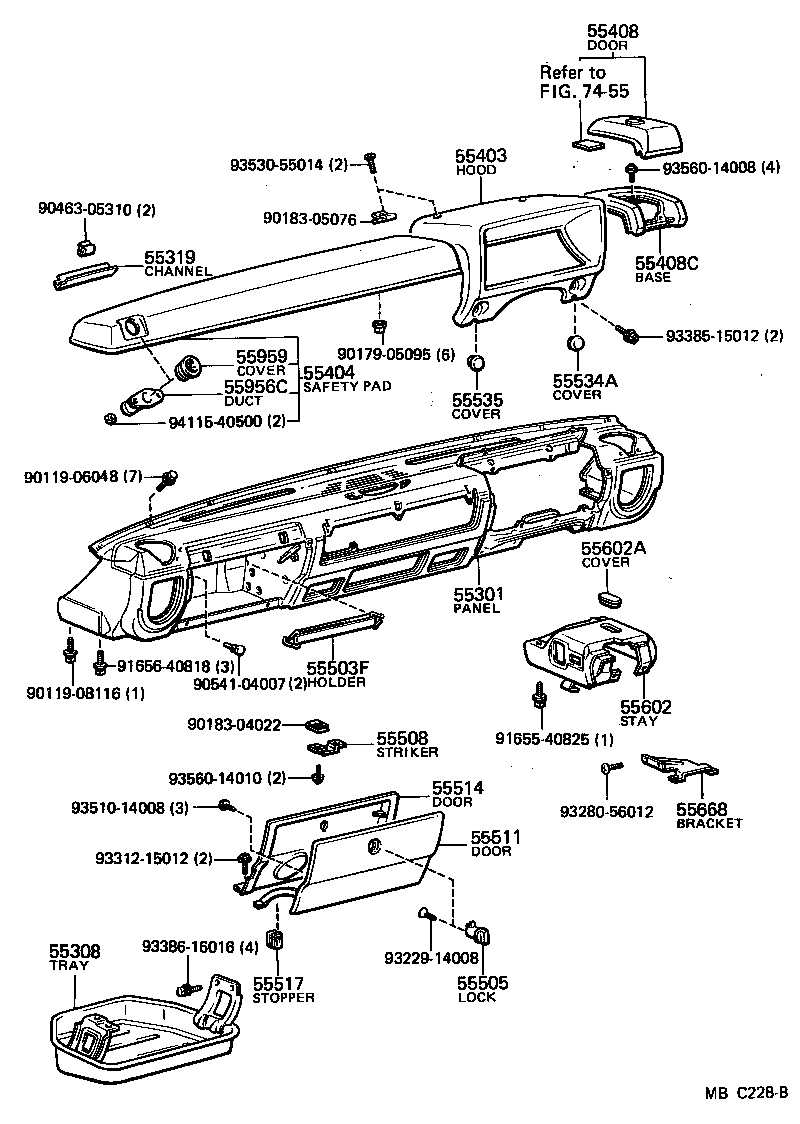

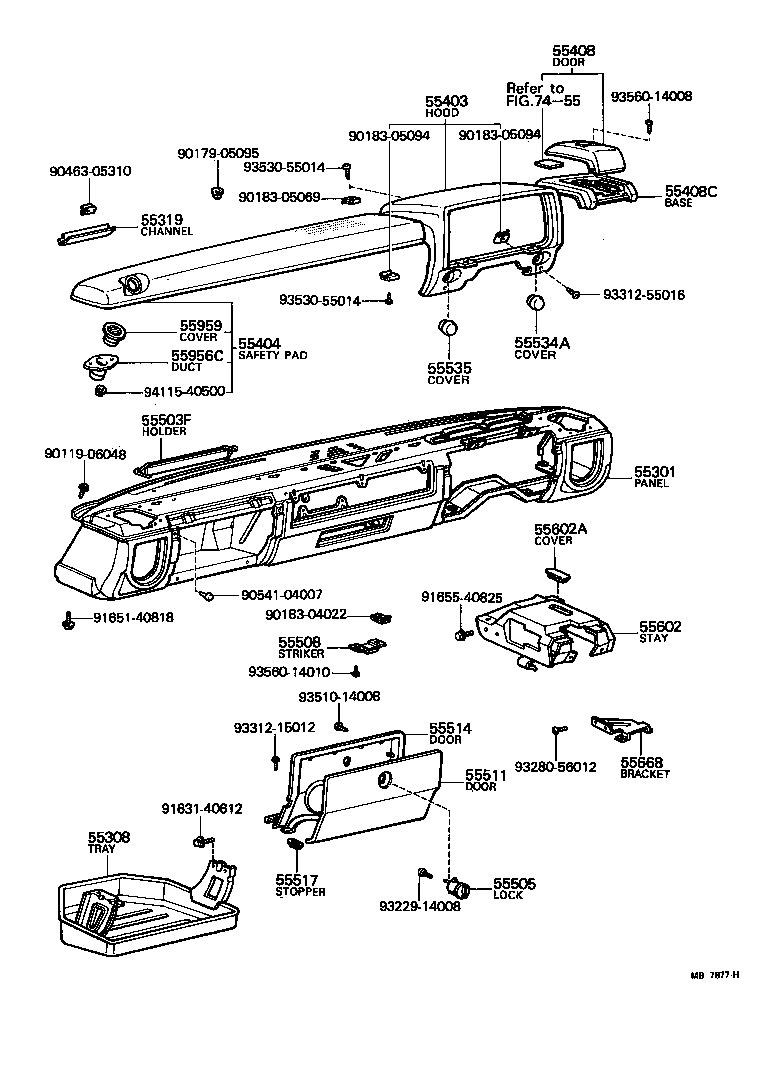

RH20RV-JRFQ (1977)
Toyota Hiace
(7702-7912)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-95A03 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55310-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55301-95A12 |
LH20,30,RH11,20,22,32,42..ARL W/DISC BRAKE |
1 | ||
| 55301-95A09 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 74650-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 74650-95A0406 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 74650-95A0606 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) BROWN |
1 | ||
| 55319 - CHANNEL, WATER GUIDE | ||||
| 55319-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-95A0206 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| 55403-95A0206 |
RH11,20,22,3#,42 BROWN |
1 | ||
| 55421-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55403-95A05 |
LH11,20,30 W/ACCELERATOR WIRE |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-95A00 |
RH11,2#,3#,42..RHD |
1 | ||
| 55404-95A02 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55404-95A0706 |
LH11,20,30,RH11,20,22,3#,42..RHD W/SIDE DEFROSTER,BROWN |
1 | ||
| 55404-95A05 |
LH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,SA) |
1 | ||
| 55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE | ||||
| 55405-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55405-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR | ||||
| 55431-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55431-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55503F - HOLDER, CARD(FOR GLOVE COMPARTMENT) | ||||
| 55505-95700 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55520-14011 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55316-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55502-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55502-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55512-95A0206 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55512-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55537-95A00 |
LH11,20,30,RH11,2#,3#..TR,V,WG |
1 | ||
| 90950-01214 |
LH11,20,30,RH11,2#,3#..TR,V,WG |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 90950-01274 |
LH11,20,30 |
1 | ||
| 55538-95A00 |
LH11,20,30 |
1 | ||
| 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 55602-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55602-95A09 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55602A - COVER,STEERING COLUMN UPPER STAY | ||||
| 55678-95A0106 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| 68895-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55678-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55668 - BRACKET, CONNECTOR SUPPORT | ||||
| 82203-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55964-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55652-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55652-95A0206 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| Common parts | ||||
| 90119-06048 | ||||
| 90179-05095 | ||||
| 90183-04022 | ||||
| 90183-05069 | ||||
| 90183-05094 | ||||
| 90463-05310 | ||||
| 90541-04007 | ||||
| 91631-40612 | ||||
| 91651-40818 | ||||
| 91655-40825 | ||||
| 93229-14008 | ||||
| 93280-56012 | ||||
| 93312-15012 | ||||
| 93312-55016 | ||||
| 93510-14008 | ||||
| 93530-55014 | ||||
| 93560-14008 | ||||
| 93560-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 7455 | ||||

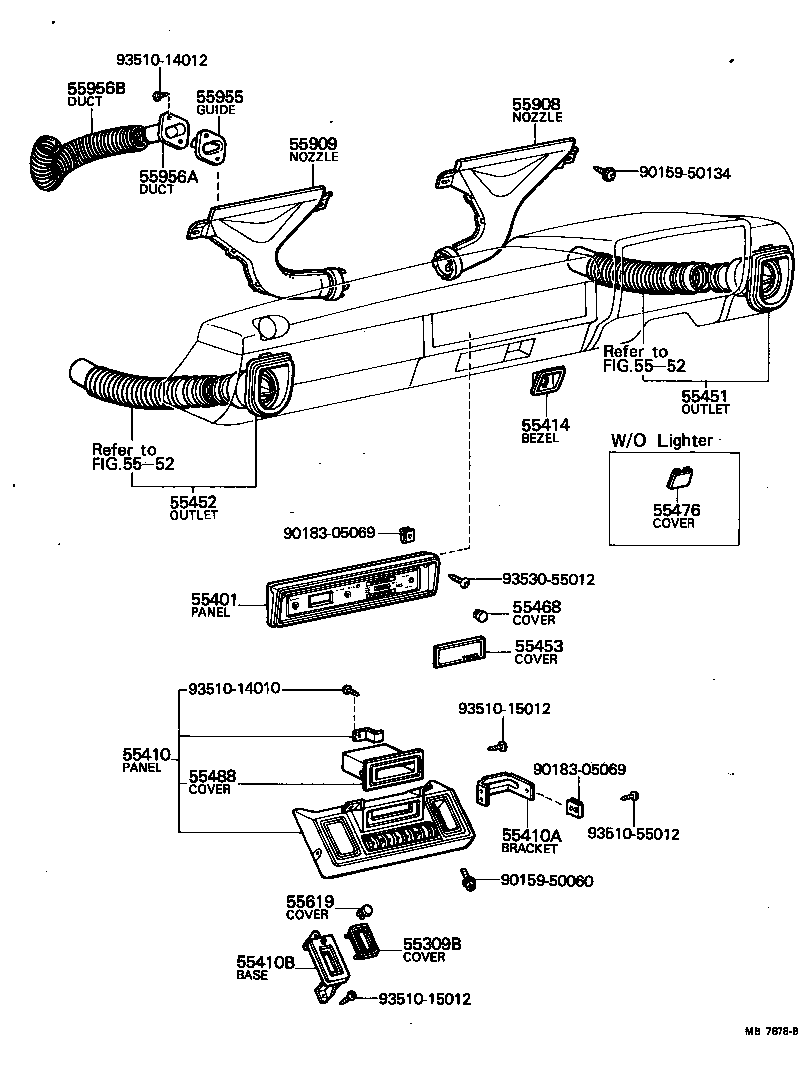

(7702-7912)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55309B - COVER, BASE SWITCH HOLE, NO.2 | ||||
| 55385-20011 |
RH2#,3#,42 W/RR HEATER |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-95A02 |
RH11,2#,3#,42..RHD W/O HEATER |
1 | ||
| 55401-95A00 |
LH11,20,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55401-95A05 |
LH11,20,30,RH11,2#,3#,42..RHD W/RADIO |
1 | ||
| 55401-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(BUS,TR,V) W/HEATER |
1 | ||
| 55411-95A05 |
LH11,20,30,RH11,20,22,3#,42..RHD W/HEATER OR BOOST BENTILATOR |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55460-95A01 |
LH11,20,RH2#,3#,42..RHD..(ARL,EUR) W/RR DEFOGGER |
1 | ||
| 55407-95A00 |
LH11,20,30,RH11,20,22,3#..RHD W/RR DEFOGGER |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55410B - BASE, SWITCH | ||||
| 55468-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55414-95A02 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55451 - OUTLET, AIR OUTER, RH | ||||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55452 - OUTLET, AIR OUTER, LH | ||||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-20041 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55522-12050 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55468 - COVER, HEATER SWITCH HOLE | ||||
| 90950-01198 |
RH11,2#,3#,42 W/O HEATER |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55474-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55476-2201001 |
LH11,20,30,RH11,20,22,3#,42 BLACK |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55462-20071 |
LH20,RH2#,3#..V..(ARL,EUR) |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-1401001 |
LH20,30,RH2#,3#,42 W/RR WINDOW DEFOGGER,BLACK |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95A00 |
LH11,20,30,RH11,2#,3#,42 W/HEATER |
1 | ||
| 55960-95A01 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55963-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55971-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55971-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55908-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 90159-50060 | ||||
| 90159-50134 | ||||
| 90183-05069 | ||||
| 93510-14010 | ||||
| 93510-14012 | ||||
| 93510-15012 | ||||
| 93510-55012 | ||||
| 93530-55012 | ||||
| Linked diagrams | ||||
| 5552 | ||||

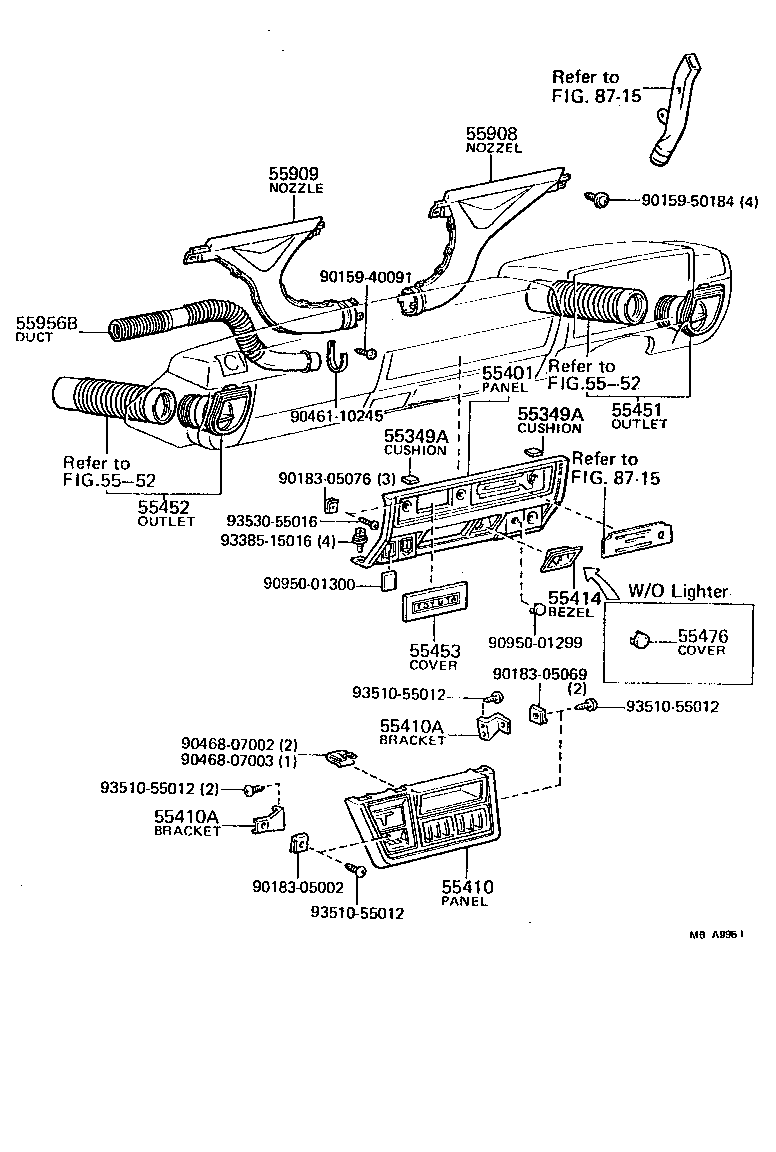

(7912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55349-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-95A02 |
RH11,2#,3#,42..RHD W/O HEATER |
1 | ||
| 55401-95A02 |
RH11,2#,3#,42..RHD W/O HEATER |
1 | ||
| 55401-95A02 |
RH11,2#,3#,42..RHD W/O HEATER |
1 | ||
| 55401-95A02 |
RH11,2#,3#,42..RHD W/O HEATER |
1 | ||
| 55401-95A00 |
LH11,20,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55401-95A05 |
LH11,20,30,RH11,2#,3#,42..RHD W/RADIO |
1 | ||
| 55401-95A05 |
LH11,20,30,RH11,2#,3#,42..RHD W/RADIO |
1 | ||
| 55401-95A05 |
LH11,20,30,RH11,2#,3#,42..RHD W/RADIO |
1 | ||
| 55401-95A05 |
LH11,20,30,RH11,2#,3#,42..RHD W/RADIO |
1 | ||
| 55401-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(BUS,TR,V) W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(BUS,TR,V) W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(BUS,TR,V) W/HEATER |
1 | ||
| 55401-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD..(BUS,TR,V) W/HEATER |
1 | ||
| 55411-95A05 |
LH11,20,30,RH11,20,22,3#,42..RHD W/HEATER OR BOOST BENTILATOR |
1 | ||
| 55411-95A05 |
LH11,20,30,RH11,20,22,3#,42..RHD W/HEATER OR BOOST BENTILATOR |
1 | ||
| 55411-95A05 |
LH11,20,30,RH11,20,22,3#,42..RHD W/HEATER OR BOOST BENTILATOR |
1 | ||
| 55411-95A05 |
LH11,20,30,RH11,20,22,3#,42..RHD W/HEATER OR BOOST BENTILATOR |
1 | ||
| 55410 - PANEL ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55460-95A01 |
LH11,20,RH2#,3#,42..RHD..(ARL,EUR) W/RR DEFOGGER |
1 | ||
| 55460-95A01 |
LH11,20,RH2#,3#,42..RHD..(ARL,EUR) W/RR DEFOGGER |
1 | ||
| 55460-95A01 |
LH11,20,RH2#,3#,42..RHD..(ARL,EUR) W/RR DEFOGGER |
1 | ||
| 55460-95A01 |
LH11,20,RH2#,3#,42..RHD..(ARL,EUR) W/RR DEFOGGER |
1 | ||
| 55407-95A00 |
LH11,20,30,RH11,20,22,3#..RHD W/RR DEFOGGER |
1 | ||
| 55407-95A00 |
LH11,20,30,RH11,20,22,3#..RHD W/RR DEFOGGER |
1 | ||
| 55407-95A00 |
LH11,20,30,RH11,20,22,3#..RHD W/RR DEFOGGER |
1 | ||
| 55407-95A00 |
LH11,20,30,RH11,20,22,3#..RHD W/RR DEFOGGER |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55410A - BRACKET, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55462-95A01 |
LH20,RH2#,3#..V..(ARL,EUR) RH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A00 |
LH20,RH2#,3#..V..(ARL,EUR) LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55463-95A02 |
LH11,20,30,RH11,20,22,3#..RHD LH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55462-95A03 |
LH11,20,30,RH11,20,22,3#..RHD RH |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55414-95A02 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A02 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A02 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A02 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55414-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55451 - OUTLET, AIR OUTER, RH | ||||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55452 - OUTLET, AIR OUTER, LH | ||||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55409-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 55409-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 55409-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 55409-95A03 |
LH11,20,30,RH11,2#,3#,42..ARL,EUR,GEN,SA |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-20041 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55463-20041 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55463-20041 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55463-20041 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55522-12050 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55522-12050 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55522-12050 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55522-12050 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55476 - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55474-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55474-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55474-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55474-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55476-2201001 |
LH11,20,30,RH11,20,22,3#,42 BLACK |
1 | ||
| 55476-2201001 |
LH11,20,30,RH11,20,22,3#,42 BLACK |
1 | ||
| 55476-2201001 |
LH11,20,30,RH11,20,22,3#,42 BLACK |
1 | ||
| 55476-2201001 |
LH11,20,30,RH11,20,22,3#,42 BLACK |
1 | ||
| 55908 - NOZZLE SUB-ASSY, DEFROSTER, RH | ||||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55950-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD W/HEATER |
1 | ||
| 55909 - NOZZLE SUB-ASSY, DEFROSTER, LH | ||||
| 55960-95A00 |
LH11,20,30,RH11,2#,3#,42 W/HEATER |
1 | ||
| 55960-95A00 |
LH11,20,30,RH11,2#,3#,42 W/HEATER |
1 | ||
| 55960-95A00 |
LH11,20,30,RH11,2#,3#,42 W/HEATER |
1 | ||
| 55960-95A00 |
LH11,20,30,RH11,2#,3#,42 W/HEATER |
1 | ||
| 55960-95A01 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55960-95A01 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55960-95A01 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55960-95A01 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55971-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55971-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55971-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55971-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55971-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55971-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55971-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55971-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55908-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55908-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55908-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55908-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 90159-40091 | ||||
| 90159-50184 | ||||
| 90183-05002 | ||||
| 90183-05069 | ||||
| 90183-05076 | ||||
| 90461-10245 | ||||
| 90468-07002 | ||||
| 90468-07003 | ||||
| 90950-01299 | ||||
| 90950-01300 | ||||
| 93385-15016 | ||||
| 93510-55012 | ||||
| 93530-55016 | ||||
| Linked diagrams | ||||
| 5552 | ||||
| 8715 | ||||
(7912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-95A03 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55310-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55301-95A12 |
LH20,30,RH11,20,22,32,42..ARL W/DISC BRAKE |
1 | ||
| 55301-95A09 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 74650-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 74650-95A0406 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 74650-95A0606 |
LH11,20,30,RH11,20,22,3#,42..RHD..(ARL,EUR,GEN,SA) BROWN |
1 | ||
| 55319 - CHANNEL, WATER GUIDE | ||||
| 55319-95A00 |
LH11,20,30,RH11,2#,3#,42 |
2 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-95A0206 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| 55403-95A0206 |
RH11,20,22,3#,42 BROWN |
1 | ||
| 55421-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55403-95A05 |
LH11,20,30 W/ACCELERATOR WIRE |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-95A00 |
RH11,2#,3#,42..RHD |
1 | ||
| 55404-95A02 |
LH11,20,30,RH11,2#,3#,42..RHD W/SIDE DEFROSTER |
1 | ||
| 55404-95A0706 |
LH11,20,30,RH11,20,22,3#,42..RHD W/SIDE DEFROSTER,BROWN |
1 | ||
| 55404-95A05 |
LH20,30,RH11,20,22,3#,42..RHD..(ARL,GEN,SA) |
1 | ||
| 55408 - DOOR SUB-ASSY, RESERVOIR TANK SERVICE HOLE | ||||
| 55405-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55405-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55408C - BASE, RESERVOIR TANK SERVICE HOLE DOOR | ||||
| 55431-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55431-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55503F - HOLDER, CARD(FOR GLOVE COMPARTMENT) | ||||
| 55505-95700 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55520-14011 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55508 - STRIKER SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55316-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55511 - DOOR, GLOVE COMPARTMENT | ||||
| 55502-95A0306 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55502-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55514 - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55512-95A0206 |
LH11,20,30,RH11,20,22,3#,42..RHD BROWN |
1 | ||
| 55512-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55534A - COVER, ILLUMINATION LAMP HOLE | ||||
| 55537-95A00 |
LH11,20,30,RH11,2#,3#..TR,V,WG |
1 | ||
| 90950-01214 |
LH11,20,30,RH11,2#,3#..TR,V,WG |
1 | ||
| 55535 - COVER, WARNING LAMP HOLE | ||||
| 90950-01274 |
LH11,20,30 |
1 | ||
| 55538-95A00 |
LH11,20,30 |
1 | ||
| 55602 - STAY SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 55602-95A00 |
LH11,20,30,RH11,2#,3#,42..RHD |
1 | ||
| 55602-95A09 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55602A - COVER,STEERING COLUMN UPPER STAY | ||||
| 55678-95A0106 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| 68895-95A00 |
RH11,2#,3#,42 |
1 | ||
| 55678-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55668 - BRACKET, CONNECTOR SUPPORT | ||||
| 82203-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55956C - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55964-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1 | ||||
| 55652-95A00 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 55652-95A0206 |
LH11,20,30,RH11,2#,3#,42 BROWN |
1 | ||
| Common parts | ||||
| 90119-06048 | ||||
| 90119-08116 | ||||
| 90179-05095 | ||||
| 90183-04022 | ||||
| 90183-05076 | ||||
| 90463-05310 | ||||
| 90541-04007 | ||||
| 91655-40825 | ||||
| 91656-40818 | ||||
| 93229-14008 | ||||
| 93280-56012 | ||||
| 93312-15012 | ||||
| 93385-15012 | ||||
| 93386-16016 | ||||
| 93510-14008 | ||||
| 93530-55014 | ||||
| 93560-14008 | ||||
| 93560-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 7455 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
