RH20RV-JRFQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7908-8004)18R..RH32..V5D..EUR ; (7908-8004)18R..RH22,32,42..ARL,GEN,SA ; (7912-800

Click highlighted areas on diagram

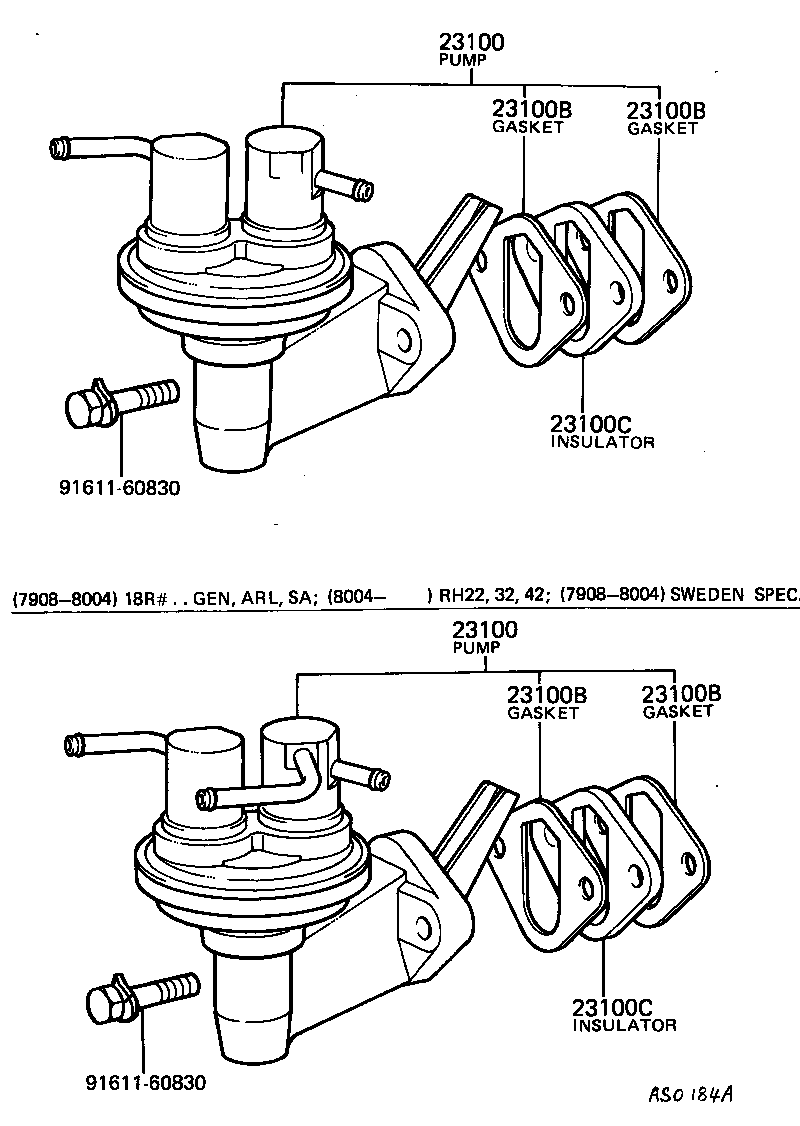

diagram 23100 23100 23100B 23100B 23100B 23100B 23100C 23100C 9161160830 9161160830
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39095

12R#..RH11,20,30

 1
23100-39255

12R#..RH11,20,30

 1
23100 - PUMP ASSY, FUEL
23100-39095

12R#..RH11,20,30

 1
23100-39255

12R#..RH11,20,30

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R#,18R..RH11,2#,3#,42

 1
23100C - INSULATOR, FUEL PUMP
90923-06001

12R#,18R..RH11,2#,3#,42

 1
Common parts
91611-60830

(7702-7808)12R#

Click highlighted areas on diagram

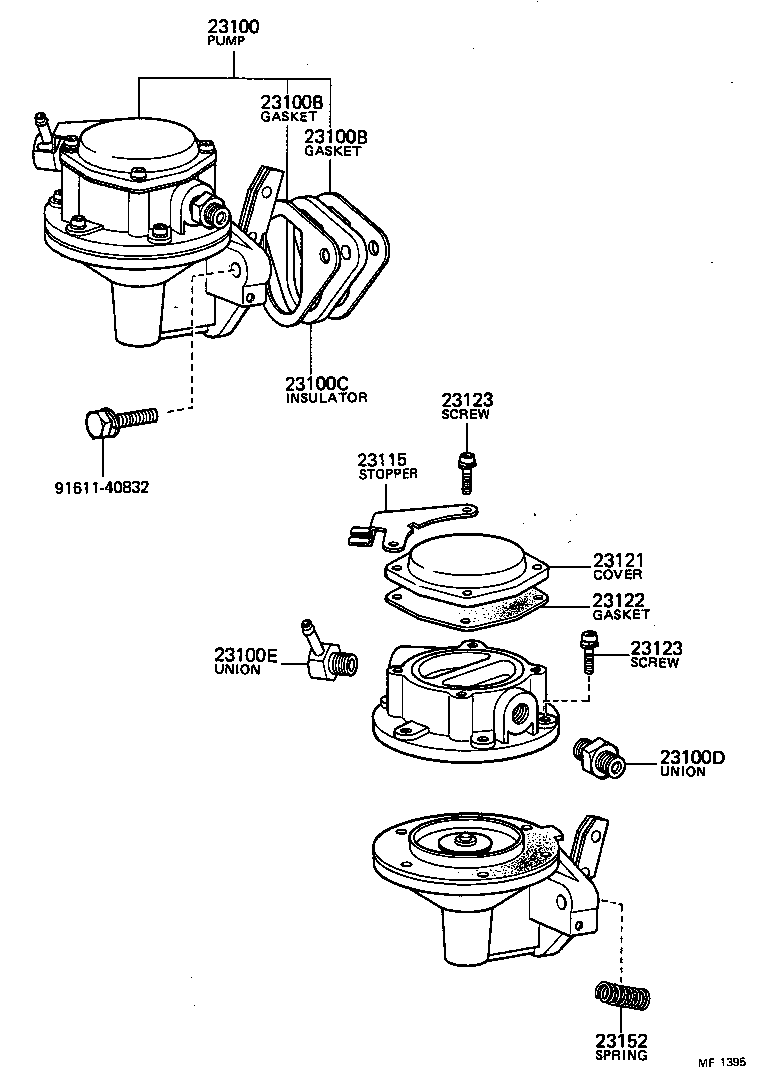

diagram 23100 23100B 23100B 23100C 23100D 23100E 23115 23121 23122 23123 23123 23152 9161140832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39095

12R#..RH11,20,30

 1
23100-39255

12R#..RH11,20,30

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R#,18R..RH11,2#,3#,42

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13105

12R#,18R..RH11,2#,3#,42

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
23116-31040

12R#..RH11,20,30

 1
23115 - STOPPER, UNION NIPPLE
23115-31040

12R#..RH11,20,30

 1
23121 - COVER, FUEL PUMP
23121-34020

12R#..RH11,20,30

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

12R#..RH11,20,30

 1
23123 - SCREW, COVER SET, NO.1
93319-15014

12R#..RH11,20,30

BODY SET

 6
23123-33011

12R#..RH11,20,30

COVER SET

 4
23123 - SCREW, COVER SET, NO.1
93319-15014

12R#..RH11,20,30

BODY SET

 6
23123-33011

12R#..RH11,20,30

COVER SET

 4
23152 - SPRING, ROCKER ARM
23152-30020

12R#..RH11,20,30

 1
Common parts
91611-40832

(7808- )12R#

Click highlighted areas on diagram

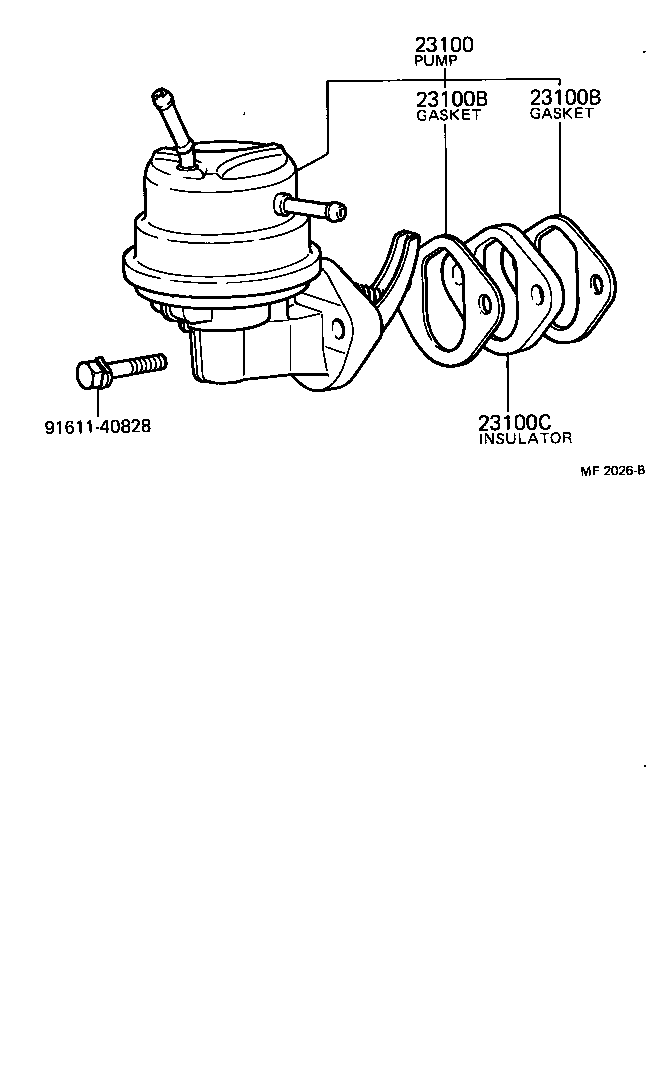

diagram 23100 23100B 23100B 23100C 9161140828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-39095

12R#..RH11,20,30

 1
23100-39255

12R#..RH11,20,30

 1
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100B - GASKET, FUEL PUMP
90923-05005

12R#,18R..RH11,2#,3#,42

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

12R#,18R..RH11,2#,3#,42

 1
Common parts
91611-40828
