RH20RV-JRFE (1977)
Toyota Hiace
Production
Feb 1977
-
Dec 1980
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

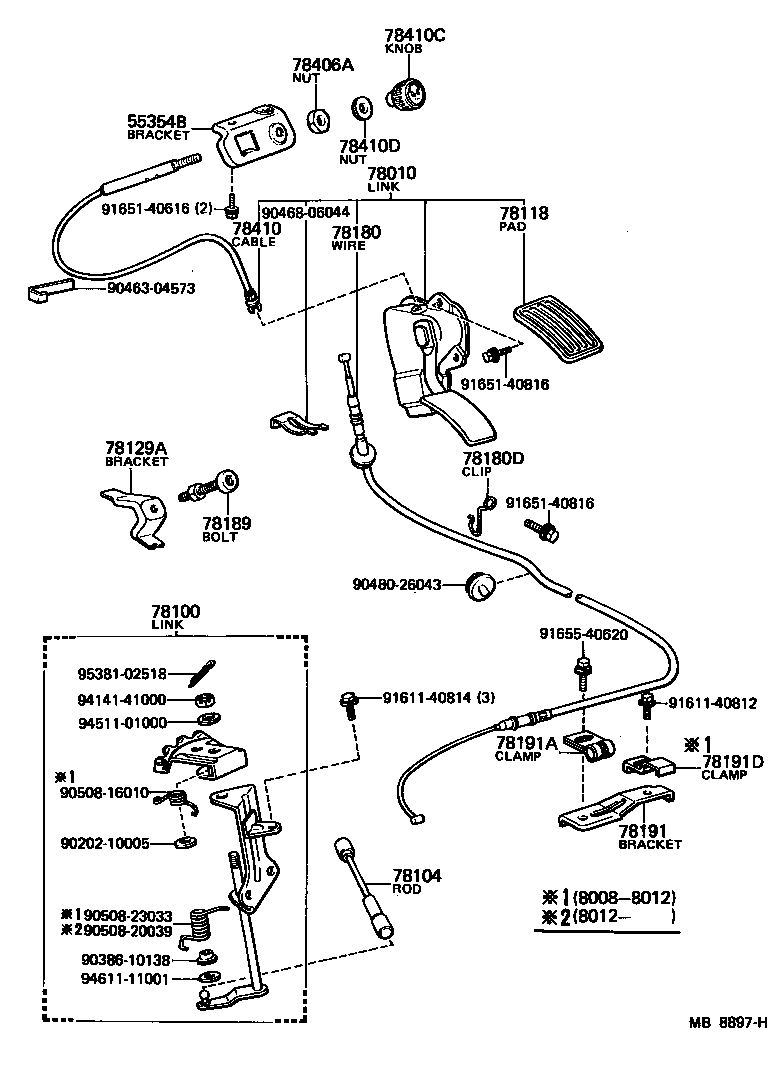

(7901- )LH11,20,30..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55354B - BRACKET, THROTTLE CABLE | ||||
| 55353-95A02 |
LH11,20,30..RHD |
1 | ||
| 55353-95A00 |
LH11,20,30..RHD |
1 | ||
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95A00 |
RH11,20,30..RHD |
1 | ||
| 78180-95A05 |
LH11,20,30..RHD |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-95A00 |
LH11,20,30 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78108-95012 |
LH11,20,30 |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95A00 |
RH11,2#,3#,42 |
1 | ||
| 78119-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 78129A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 78109-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95A07 |
LH11,20,30..RHD |
1 | ||
| 78150-95A00 |
RH11,20,30..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78107-95A00 |
RH11,2#,3#,42 |
1 | ||
| 78191 - BRACKET, ACCELERATOR WIRE SUPPORT | ||||
| 78109-95A01 |
LH11,20,30 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10025 |
RH11,2#,3#,42 |
1 | ||
| 78191D - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-95A09 |
LH11,20,30 |
1 | ||
| 78406A - NUT, HOLDER (FOR THROTTLE BUTTON) | ||||
| 78413-95A01 |
LH11,20,30 |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78401-95A00 |
LH11,20,30..RHD |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78413-95A00 |
LH11,20,30..RHD |
1 | ||
| 78413-95A01 |
LH11,20,30 |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90386-10138 | ||||
| 90463-04573 | ||||
| 90468-06044 | ||||
| 90480-26043 | ||||
| 90508-16010 | ||||
| 90508-20039 | ||||
| 90508-23033 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91655-40620 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
(7702- )RH11,20,22,3#,42..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78180-95A00 |
RH11,20,30..RHD |
1 | ||
| 78180-95A05 |
LH11,20,30..RHD |
1 | ||
| 78118 - PAD, ACCELERATOR PEDAL | ||||
| 78119-95A00 |
RH11,2#,3#,42 |
1 | ||
| 78119-95A01 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 78129A - BRACKET, ACCELERATOR PEDAL STOPPER | ||||
| 78109-95A00 |
LH11,20,30,RH11,20,22,3#,42..RHD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78150-95A07 |
LH11,20,30..RHD |
1 | ||
| 78150-95A00 |
RH11,20,30..RHD |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78107-95A00 |
RH11,2#,3#,42 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10025 |
RH11,2#,3#,42 |
1 | ||
| 78191A - CLAMP (FOR ACCELERATOR WIRE SET) | ||||
| 90461-10025 |
RH11,2#,3#,42 |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95A03 |
RH11,20,30..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 78310-95A03 |
RH11,20,30..RHD |
1 | ||
| 78343 - BRACKET, CHOKE ROD | ||||
| 78302-95602 |
RH11,20,30 |
1 | ||
| Common parts | ||||
| 90202-05117 | ||||
| 90240-05071 | ||||
| 90463-06161 | ||||
| 90464-00073 | ||||
| 90468-06044 | ||||
| 90468-15021 | ||||
| 90480-26043 | ||||
| 91611-40814 | ||||
| 91651-40816 | ||||
| 91655-40620 | ||||
