RH20RV-JREW (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

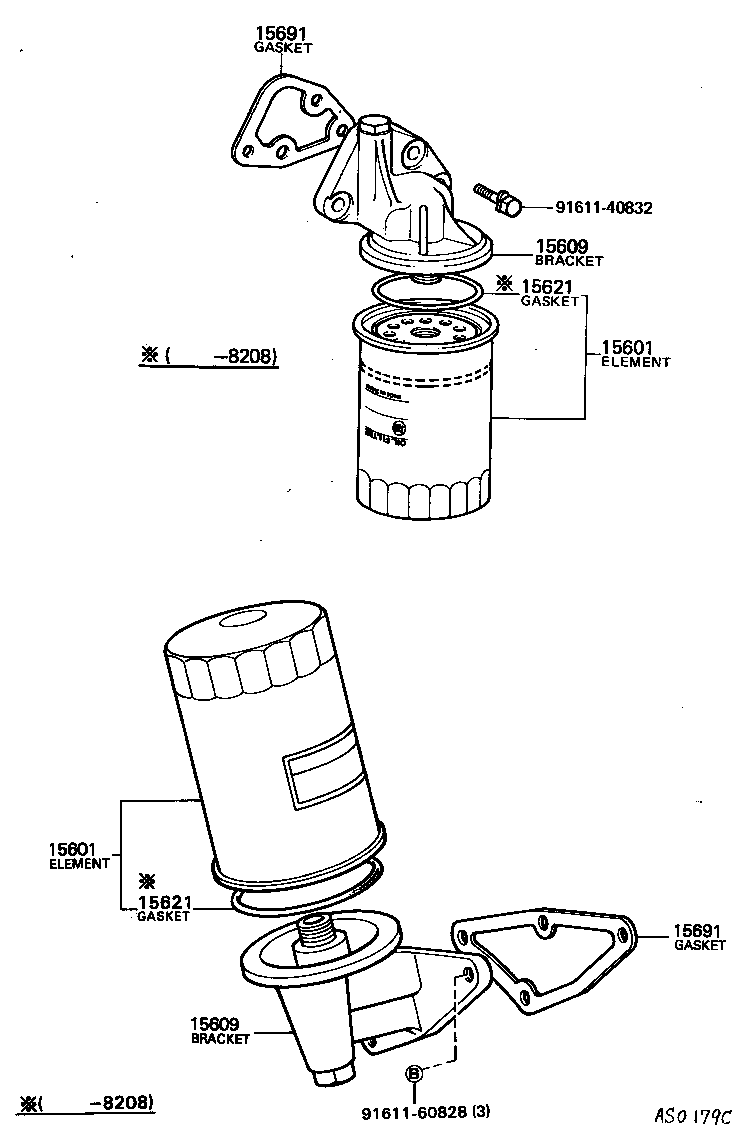

(7702- )18R ; (7808- )12R#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-33020 |
12R#..RH11,20,30 |
1 | ||
| 04152-31011 |
12R#..RH11,20,30 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-33020 |
12R#..RH11,20,30 |
1 | ||
| 04152-31011 |
12R#..RH11,20,30 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-31030 |
12R#..RH11,20,30 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-31030 |
12R#..RH11,20,30 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-22010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 15621-31011 |
12R#..RH11,20,30 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-22010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 15621-31011 |
12R#..RH11,20,30 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-31010 |
12R#..RH11,20,30 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-31010 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 91611-40832 | ||||
| 91611-60828 | ||||

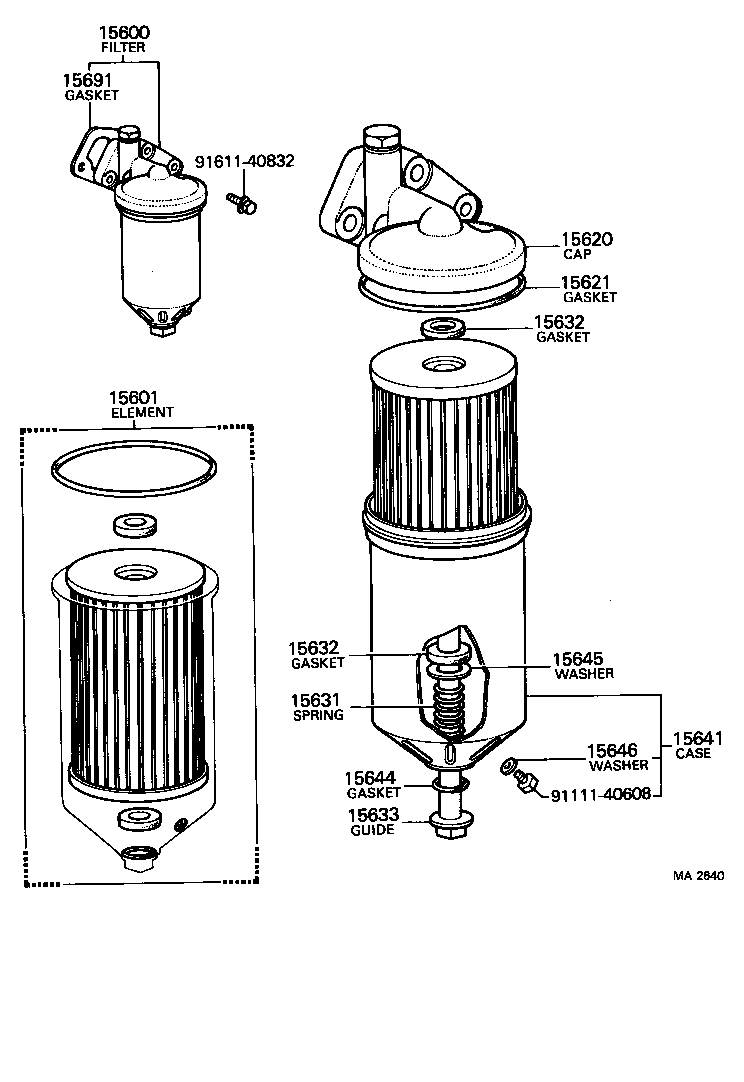

(7702-7808)12R#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600 - FILTER ASSY, OIL | ||||
| 15600-39015 |
12R#..RH11,20,30 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 15601-33020 |
12R#..RH11,20,30 |
1 | ||
| 04152-31011 |
12R#..RH11,20,30 |
1 | ||
| 15620 - CAP ASSY, OIL FILTER | ||||
| 15620-31012 |
12R#..RH11,20,30 |
1 | ||
| 15621 - GASKET, OIL FILTER BODY | ||||
| 15621-22010 |
12R#,18R..RH11,2#,3#,42 |
1 | ||
| 15621-31011 |
12R#..RH11,20,30 |
1 | ||
| 15631 - SPRING, OIL FILTER ELEMENT SUPPORT | ||||
| 15631-21010 |
12R#..RH11,20,30 |
1 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
12R#..RH11,20,30 |
2 | ||
| 15632 - GASKET, OIL FILTER ELEMENT | ||||
| 15632-40020 |
12R#..RH11,20,30 |
2 | ||
| 15633 - GUIDE, OIL FILTER CARTRIDGE | ||||
| 15633-21011 |
12R#..RH11,20,30 |
1 | ||
| 15641 - CASE, OIL FILTER | ||||
| 15641-31012 |
12R#..RH11,20,30 |
1 | ||
| 15644 - GASKET, OIL FILTER CARTRIDGE GUIDE | ||||
| 15644-60010 |
12R#..RH11,20,30 |
1 | ||
| 15645 - WASHER, OIL FILTER CARTRIDGE GUIDE | ||||
| 90099-01093 |
12R#..RH11,20,30 |
1 | ||
| 15646 - WASHER OR GASKET, OIL FILTER DRAIN COCK | ||||
| 90099-01010 |
12R#..RH11,20,30 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-31010 |
12R#..RH11,20,30 |
1 | ||
| Common parts | ||||
| 91111-40608 | ||||
| 91611-40832 | ||||
