RH11RP-JRQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11..06S

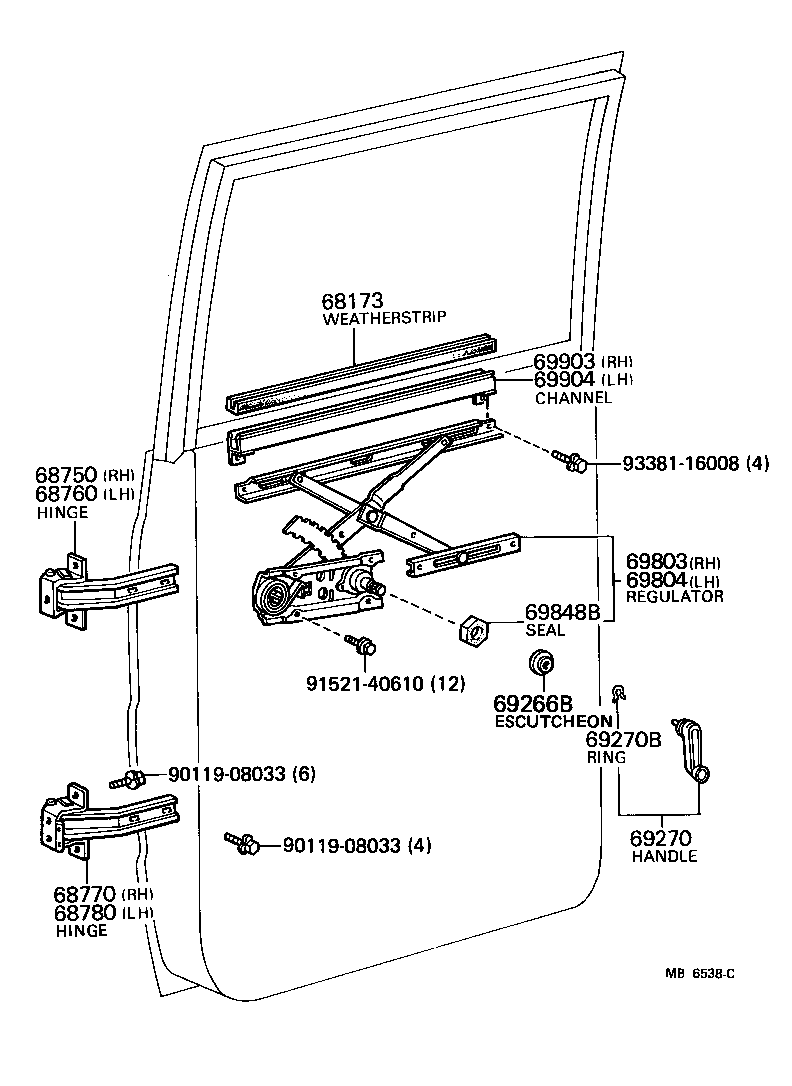

Click highlighted areas on diagram

diagram 68173 68750 68760 68770 68780 69266B 69270 69270B 69803 69804 69848B 69903 69904 9011908033 9011908033 9152140610 9338116008
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
69981-95700

RH11..06S

 2
69981-95701

RH11..06S

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-95A00

RH11..06S

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68750-95A00

RH11..06S

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-95010

RH11..06S

 1
68770-95A00

RH11..06S

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-95A00

RH11..06S

 1
68780-95010

RH11..06S

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69272-30010

RH11..06S

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-95A00

RH11..06S

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

RH11..06S

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69830-95A00

RH11..06S

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-95A00

RH11..06S

 1
69848B - SEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)
69848-95700

RH11..06S

 2
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69901-95700

RH11..06S

 1
69901-95701

RH11..06S

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69901-95701

RH11..06S

 1
69901-95700

RH11..06S

 1
Common parts
90119-08033
91521-40610
93381-16008
