RH11RP-JRQ (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )RH11..06S

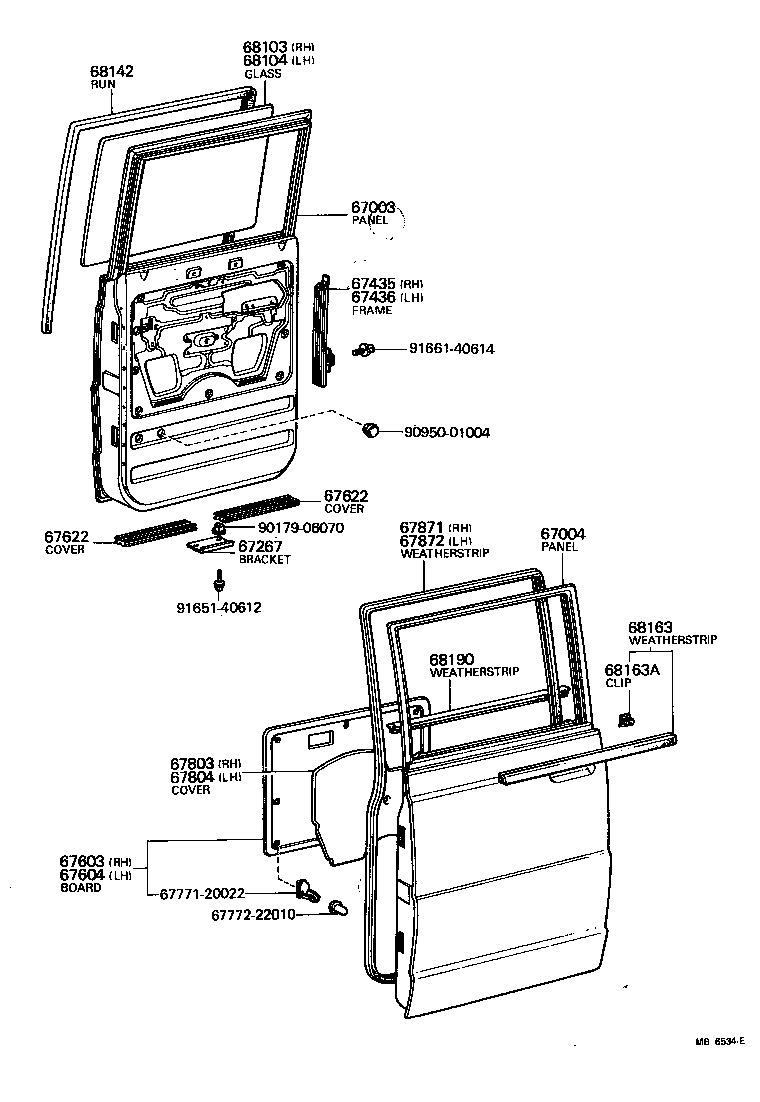

Click highlighted areas on diagram

diagram 67003 67004 67267 67435 67436 67603 67604 67622 67622 6777120022 6777222010 67803 67804 67871 67872 68103 68104 68142 68163 68163A 68190 9017906070 9095001004 9165140612 9166140614
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67007-95A00

RH11..06S

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67008-95A00

RH11..06S

 1
67267 - BRACKET, DOOR INSIDE PANEL, LOWER
67311-95A00

RH11..06S

 2
67435 - FRAME, REAR DOOR WINDOW LOWER, RH
67403-95A00

RH11..06S

 1
67436 - FRAME, REAR DOOR WINDOW, LOWER LH
67404-95A00

RH11..06S

 1
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-95A03

RH11..06S..ARL

BROWN

 1
67630-95A05

RH11..06S

 1
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-95A03

RH11..06S..ARL

BROWN

 1
67640-95A09

RH11..06S

BROWN

 1
67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE
67835-95A00

RH11..06S

 4
67622 - COVER, REAR DOOR INSIDE PANEL LOWER HOLE
67835-95A00

RH11..06S

 4
67803 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH
67832-95A00

RH11..06S

 1
67804 - COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH
67832-95A00

RH11..06S

 1
67871 - WEATHERSTRIP, REAR DOOR, RH
67863-95A00

RH11..06S

 1
67872 - WEATHERSTRIP, REAR DOOR, LH
67864-95A00

RH11..06S

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-95A00

RH11..06S

*TEM,T=4.0

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68113-95A00

RH11..06S

*TEM,T=4.0

 1
68142 - RUN, REAR DOOR GLASS
68142-95A00

RH11..06S

 2
68163 - WEATHERSTRIP, REAR DOOR GLASS, OUTER
68120-95A00

RH11..06S

 2
68120-95A01

RH11..06S

 2
68163A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68212-95A01

RH11..06S

 12
68212-95A00

RH11..06S

 12
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68110-95A01

RH11..06S

 2
68110-95A00

RH11..06S

 2
Common parts
67771-20022
67772-22010
90179-06070
90950-01004
91651-40612
91661-40614
