RH11RP-JRQ (1977)
Toyota Hiace

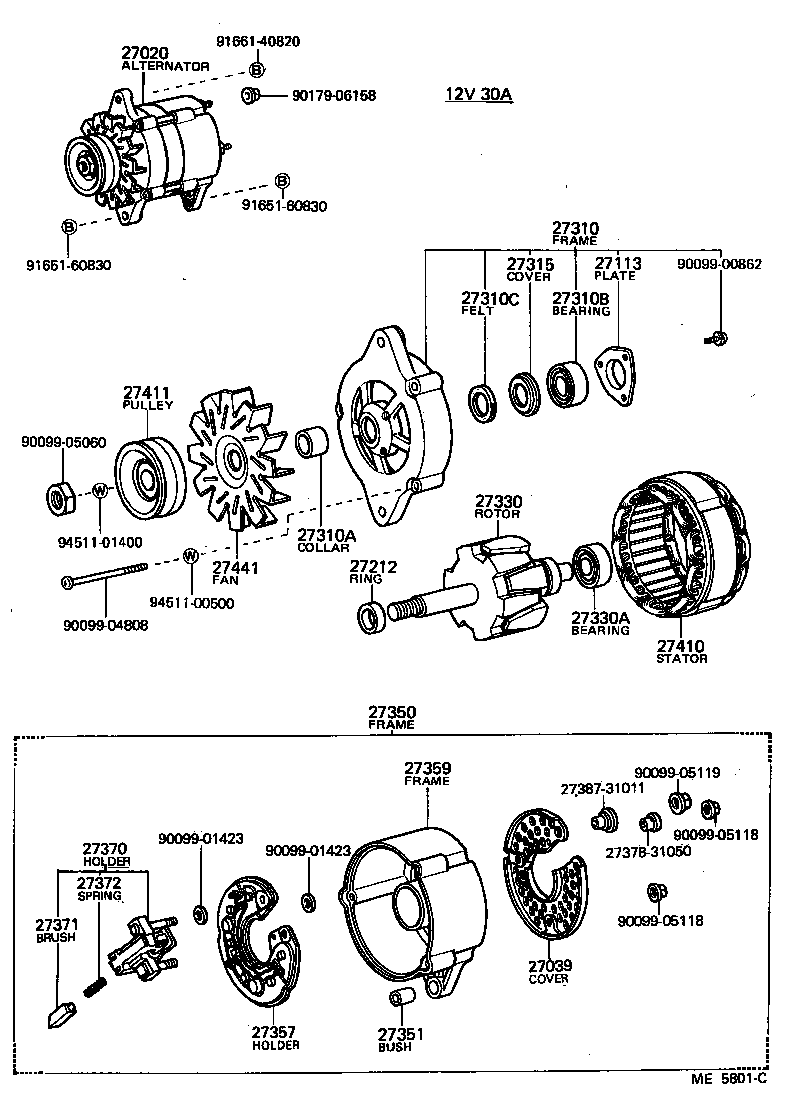

(7702- )12R#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12R#..RH11,20,30 12V 30A,12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RH11,20,30 12V 30A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R,18R..RH11,2#,3#,42 12V 30A,40A |
1 | ||
| 97110-06201 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| Common parts | ||||
| 27378-31050 | ||||
| 27387-31011 | ||||
| 90099-00862 | ||||
| 90099-01423 | ||||
| 90099-04808 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90179-06158 | ||||
| 91651-60830 | ||||
| 91661-40820 | ||||
| 94511-00500 | ||||
| 94511-01400 | ||||
(7702-7912)12R,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12R#..RH11,20,30 12V 30A,12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RH11,20,30 12V 30A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R,18R..RH11,2#,3#,42 12V 30A,40A |
1 | ||
| 97110-06201 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| Common parts | ||||
| 27378-26020 | ||||
| 27378-45020 | ||||
| 27387-31011 | ||||
| 27387-45022 | ||||
| 90099-00862 | ||||
| 90099-02310 | ||||
| 90099-04259 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90179-06158 | ||||
| 90201-10014 | ||||
| 91611-40820 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01400 | ||||
| 94512-01000 | ||||
(7901- )L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12R#..RH11,20,30 12V 30A,12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27113-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02009 |
12R#..RH11,20,30 12V 30A |
2 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27313-39010 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27383-56070 | ||||
| 27387-54010 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-08127 | ||||
| 90201-10283 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
(8012- )12R,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12R#..RH11,20,30 12V 30A,12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R,18R..RH11,2#,3#,42 12V 30A,40A |
1 | ||
| 97110-06201 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| Common parts | ||||
| 27378-38040 | ||||
| 27378-45090 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90179-06158 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94511-01400 | ||||
(7912- )12R,18R
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27020-31090 |
12R#..RH11,20,30 12V 30A,12V 30A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 90099-19068 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-56040 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-22012 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 97110-06201 |
12R,18R..RH11,2#,3#,42 12V 30A,40A |
1 | ||
| 97110-06201 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
12R#,18R..RH11,2#,3#,42 12V 30A,40A,50A,55A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-11014 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-31090 |
12R#..RH11,20,30 12V 30A |
1 | ||
| Common parts | ||||
| 27378-15030 | ||||
| 27378-38040 | ||||
| 27387-45022 | ||||
| 27387-45110 | ||||
| 90099-00912 | ||||
| 90099-04300 | ||||
| 90099-05060 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90101-10049 | ||||
| 90119-08023 | ||||
| 90179-06158 | ||||
| 91651-61030 | ||||
| 91661-40820 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94511-01400 | ||||
| 94612-11001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
