RH11RP-JR (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12R

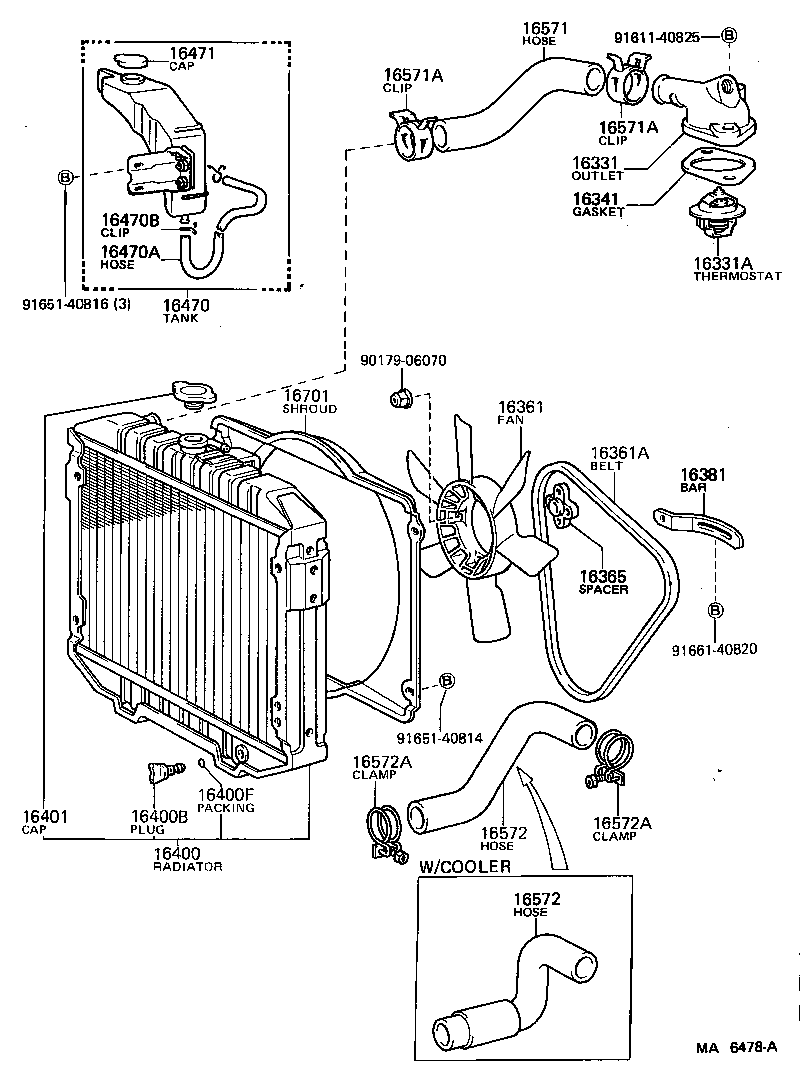

Click highlighted areas on diagram

diagram 16331 16331A 16341 16361 16361A 16365 16381 16400 16400B 16400F 16401 16470 16470A 16470B 16471 16571 16571A 16571A 16572 16572 16572A 16572A 16701 9017906070 9161140825 9165140814 9165140816 9166140820
Part # Description Qty Price
16331 - OUTLET, WATER
16331-31092

12R..RH11..ARL,GEN

 1
16331A - THERMOSTAT
90916-03054

12R..RH11

*WAX 82-95,*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-38011

12R..RH11

 1
16361 - FAN
16361-31050

12R..RH11..ARL,GEN

5 BLADES

 1
16361-31021

12R..RH11..ARL,GEN

4 BLADES

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-00890

12R..RH11

 1
16365 - SPACER, FAN
16365-31020

12R..RH11..ARL,GEN

 1
16381 - BAR, FAN BELT ADJUSTING
16381-31012

12R..RH11

 1
16400 - RADIATOR ASSY
16400-31290

12R..RH11

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-24051

12R..RH11

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-24051

12R..RH11

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-41021

12R..RH11

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-95A00

12R..RH11

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
90445-12078

12R..RH11

L=600

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

12R..RH11

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16471-34030

12R..RH11

 1
16571 - HOSE, RADIATOR, INLET
16572-31120

12R..RH11

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

12R..RH11

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-37001

12R..RH11

 2
16572 - HOSE, RADIATOR, OUTLET
16571-31041

12R..RH11

 1
16571-31060

12R..RH11..ARL,GEN

W/COOLER

 1
16572 - HOSE, RADIATOR, OUTLET
16571-31041

12R..RH11

 1
16571-31060

12R..RH11..ARL,GEN

W/COOLER

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

12R..RH11

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
96111-10460

12R..RH11

 2
16701 - SHROUD SUB-ASSY, FAN
16711-31121

12R..RH11

W/COOLER

 1
16711-31111

12R..RH11..ARL,GEN

 1
Common parts
90179-06070
91611-40825
91651-40814
91651-40816
91661-40820
