RH11R-JRY (1977)

Toyota Hiace

Production Feb 1977 - Oct 1981
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )12R#

Click highlighted areas on diagram

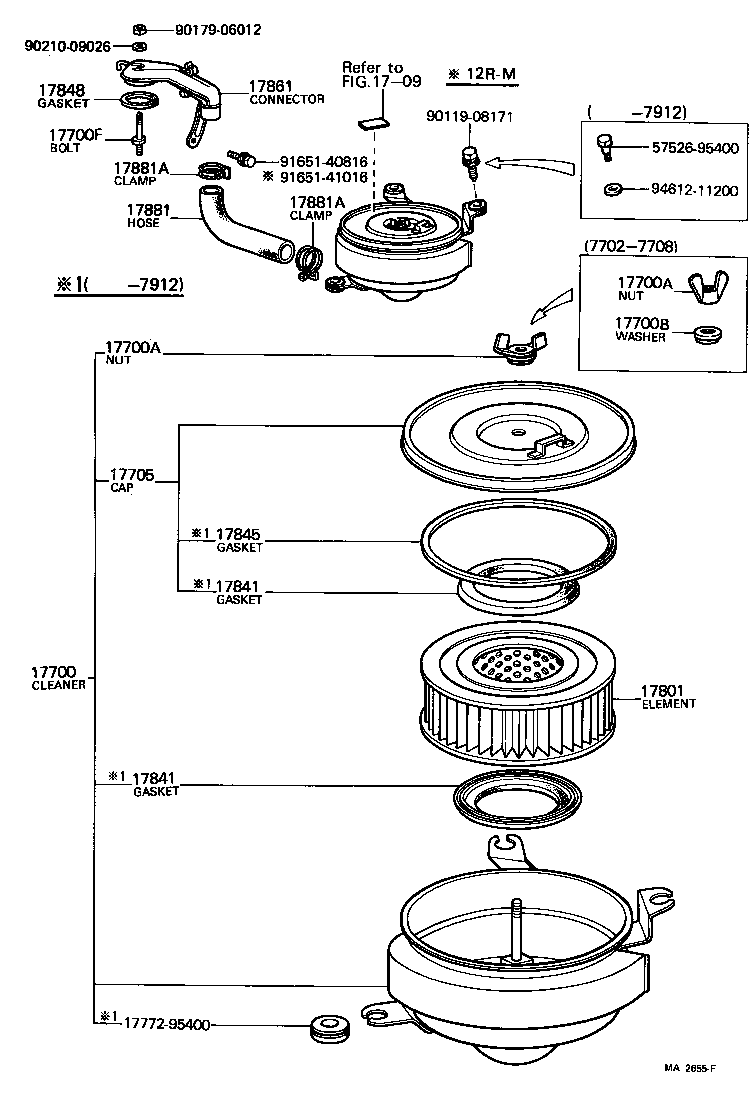

diagram 1709 17700 17700A 17700A 17700B 17700F 17705 1777295400 17801 17841 17841 17845 17848 17861 17881 17881A 17881A 5752695400 9011908171 9017906012 9021009026 9165140816 9165141016 9461211200
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17710-31300

12R#..RH11,20,30

 1
17710-34290

12R#..RH11,20,30

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

12R,18R..RH11,2#,3#,42

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

12R,18R..RH11,2#,3#,42

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09026

12R,18R..RH11,2#,3#,42

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309

12R#,18R..RH11,2#,3#,42

L=66,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31050

12R,18R..RH11,2#,3#,42

 1
17705-34220

12R#,18R..RH11,2#,3#,42

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-23020

12R#,18R..RH11,2#,3#,42..BUS,TR,V

 1
17841 - GASKET, FILTER ELEMENT
17841-31010

12R#,18R..RH11,2#,3#,42

CASE SIDE

 1
17841-20020

12R#,18R..RH11,2#,3#,42

CAP SIDE

 1
17841 - GASKET, FILTER ELEMENT
17841-31010

12R#,18R..RH11,2#,3#,42

CASE SIDE

 1
17841-20020

12R#,18R..RH11,2#,3#,42

CAP SIDE

 1
17845 - GASKET, AIR CLEANER CAP
17845-31030

12R#,18R..RH11,2#,3#,42

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

12R#..RH11,20,30

 1
17861 - CONNECTOR, INTAKE AIR
17861-31070

12R..RH11,20,30

 1
17881 - HOSE, AIR CLEANER, NO.1
90910-06034

12R#..RH11,20,30

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-58001

12R..RH11

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-58001

12R..RH11

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11

 2
Common parts
17772-95400
57526-95400
90119-08171
90179-06012
90210-09026
91651-40816
91651-41016
94612-11200
Linked diagrams
1709

(8102- )12R,18R

Click highlighted areas on diagram

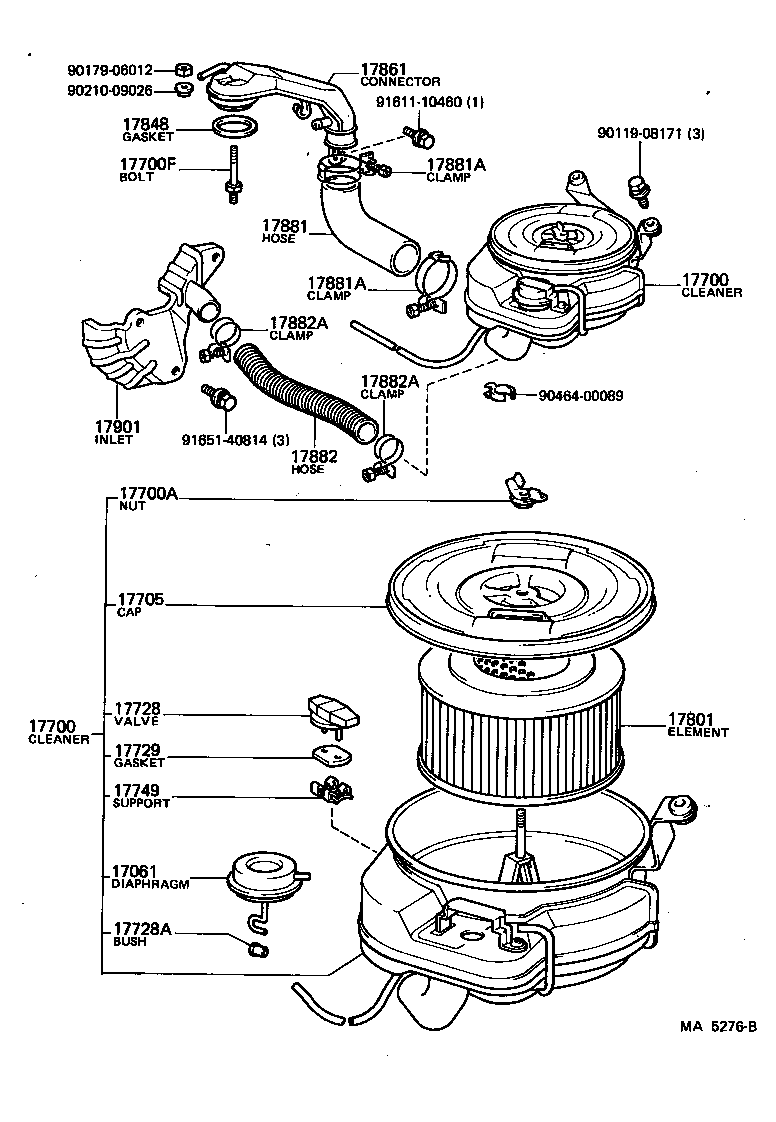

diagram 17061 17700 17700 17700A 17700F 17705 17728 17728A 17729 17749 17801 17848 17861 17881 17881A 17881A 17882 17882A 17882A 17901 9011908171 9017906012 9021009026 9046400089 9161110460 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17710-31300

12R#..RH11,20,30

 1
17710-31300

12R#..RH11,20,30

 1
17710-34290

12R#..RH11,20,30

 1
17710-34290

12R#..RH11,20,30

 1
17700 - CLEANER ASSY, AIR
17710-31300

12R#..RH11,20,30

 1
17710-31300

12R#..RH11,20,30

 1
17710-34290

12R#..RH11,20,30

 1
17710-34290

12R#..RH11,20,30

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06026

12R,18R..RH11,2#,3#,42

 1
90175-06026

12R,18R..RH11,2#,3#,42

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06309

12R#,18R..RH11,2#,3#,42

L=66,S=12&25

 1
90116-06309

12R#,18R..RH11,2#,3#,42

L=66,S=12&25

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31050

12R,18R..RH11,2#,3#,42

 1
17705-31050

12R,18R..RH11,2#,3#,42

 1
17705-34220

12R#,18R..RH11,2#,3#,42

 1
17705-34220

12R#,18R..RH11,2#,3#,42

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-23020

12R#,18R..RH11,2#,3#,42..BUS,TR,V

 1
17801-23020

12R#,18R..RH11,2#,3#,42..BUS,TR,V

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

12R#..RH11,20,30

 1
90430-63187

12R#..RH11,20,30

 1
17861 - CONNECTOR, INTAKE AIR
17861-31070

12R..RH11,20,30

 1
17861-31070

12R..RH11,20,30

 1
17881 - HOSE, AIR CLEANER, NO.1
90910-06034

12R#..RH11,20,30

 1
90910-06034

12R#..RH11,20,30

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-58001

12R..RH11

 2
90460-58001

12R..RH11

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11

 2
90460-69001

12R..RH11

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-58001

12R..RH11

 2
90460-58001

12R..RH11

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11,20,30

 2
90460-69001

12R..RH11

 2
90460-69001

12R..RH11

 2
Common parts
90119-08171
90179-06012
90210-09026
90464-00089
91611-10460
91651-40814
