RH11R-JRW (1977)
Toyota Hiace
Production
Feb 1977
-
Dec 1980
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702- )LH11,RH11,25

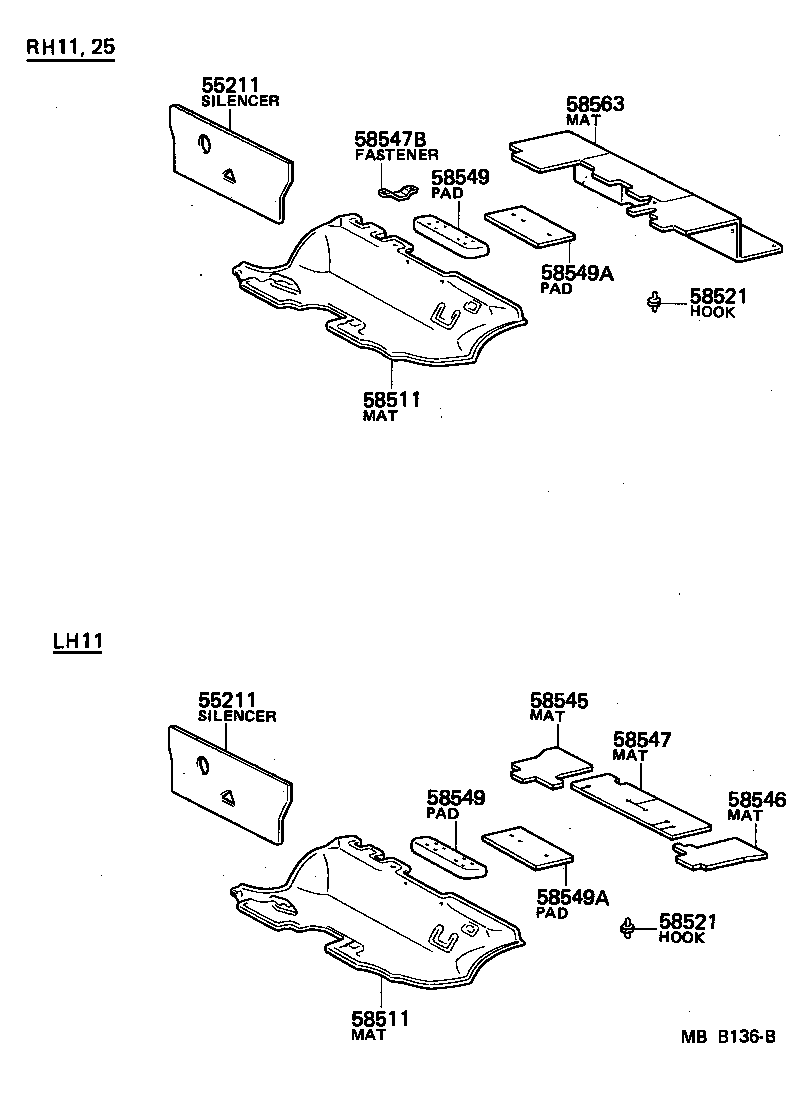

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58511 - MAT, FLOOR, FRONT | ||||
| 58501-95A0006 |
RH11..RHD W/HEATER,BROWN,BROWN |
1 | ||
| 58501-95A0506 |
RH11..RHD W/O HEATER,BROWN,BROWN |
1 | ||
| 58501-95A0505 |
RH2#,3#,42..RHD W/O HEATER,BEIGE,BEIGE |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58501-95A0006 |
RH11..RHD W/HEATER,BROWN,BROWN |
1 | ||
| 58501-95A0506 |
RH11..RHD W/O HEATER,BROWN,BROWN |
1 | ||
| 58501-95A0505 |
RH2#,3#,42..RHD W/O HEATER,BEIGE,BEIGE |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 58521 - HOOK, MALE, NO.1 | ||||
| 90530-06001 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 58547B - FASTENER ASSY, HEADER MAT | ||||
| 58510-95A00 |
RH2#,3#,42 |
1 | ||
| 58549 - PAD, ENGINE CENTER SERVICE HOLE COVER HINGE, FRONT | ||||
| 58549-95A0006 |
RH11 BROWN,BROWN |
1 | ||
| 58549-95A04 |
LH11,20,30,RH11,20,22,3#,42 |
1 | ||
| 58549 - PAD, ENGINE CENTER SERVICE HOLE COVER HINGE, FRONT | ||||
| 58549-95A0006 |
RH11 BROWN,BROWN |
1 | ||
| 58549-95A04 |
LH11,20,30,RH11,20,22,3#,42 |
1 | ||
