RH11R-JRBW (1982)
Toyota Hiace
(8211- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

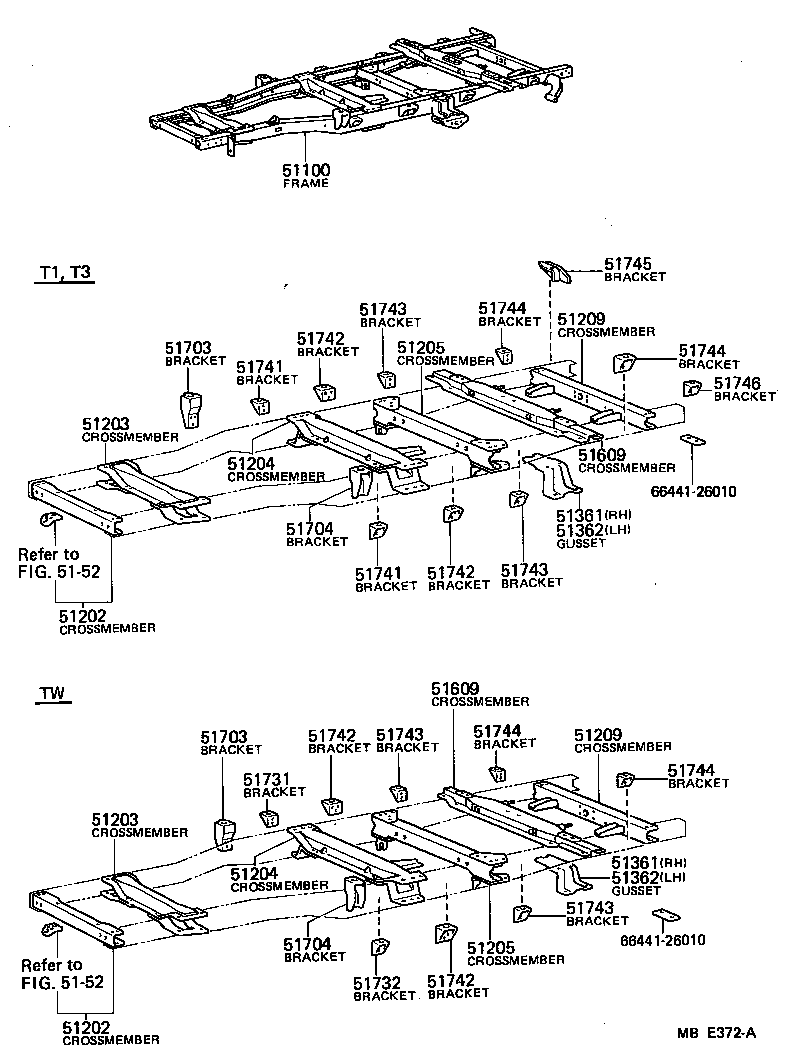

| 51100 - FRAME ASSY | ||||
| 51001-26072 |
RH11..RHD..03S..CBU |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-26031 |
LH11,RH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-26031 |
LH11,RH11..RHD..(ARL,EUR,GEN) |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-26011 |
LH11,RH11 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-26011 |
LH11,RH11 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-28010 |
LH11,RH11 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-28010 |
LH11,RH11 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-26012 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51205-26012 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-28010 |
LH11,RH11 |
1 | ||
| 51209 - CROSSMEMBER SUB-ASSY, FRAME, NO.8 | ||||
| 51209-28010 |
LH11,RH11 |
1 | ||
| 51361 - GUSSET, CROSSMEMBER, NO.6 RH | ||||
| 51361-26010 |
LH11,RH11 |
1 | ||
| 51361 - GUSSET, CROSSMEMBER, NO.6 RH | ||||
| 51361-26010 |
LH11,RH11 |
1 | ||
| 51362 - GUSSET, CROSSMEMBER, NO.6 LH | ||||
| 51362-26010 |
LH11,RH11 |
1 | ||
| 51362 - GUSSET, CROSSMEMBER, NO.6 LH | ||||
| 51362-26010 |
LH11,RH11 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51206-28011 |
LH11,RH11 |
1 | ||
| 51609 - CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT | ||||
| 51206-28011 |
LH11,RH11 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51705-26020 |
LH11,RH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 51705-26020 |
LH11,RH11..T1,T3 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51705-26020 |
LH11,RH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 51705-26020 |
LH11,RH11..T1,T3 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51706-26010 |
LH11,RH11..T1,T3 |
1 | ||
| 51706-26010 |
LH11,RH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51706-26010 |
LH11,RH11..T1,T3 |
1 | ||
| 51706-26010 |
LH11,RH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-26010 |
LH11,RH11..T1,T3 |
2 | ||
| 51741 - BRACKET, REAR BODY MOUNTING, NO.1 | ||||
| 51741-26010 |
LH11,RH11..T1,T3 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51742 - BRACKET, BODY MOUNTING, NO.2 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51743 - BRACKET, BODY MOUNTING, NO.3 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51744 - BRACKET, BODY MOUNTING, NO.4 | ||||
| 51741-26010 |
LH11,RH11 |
2 | ||
| 51745 - BRACKET, BODY MOUNTING, NO.5 | ||||
| 51745-25030 |
LH11,RH11..T3 |
1 | ||
| 51746 - BRACKET, BODY MOUNTING, NO.6 | ||||
| 51746-25030 |
LH11,RH11..T3 |
1 | ||
| Common parts | ||||
| 66441-26010 | ||||
| Linked diagrams | ||||
| 5152 | ||||
