RH11R-JRBW (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702-7912)RH11,22,3# ; (7702-7912)RH20..V..EUR; (7702-7912)RH20..ARL,GEN

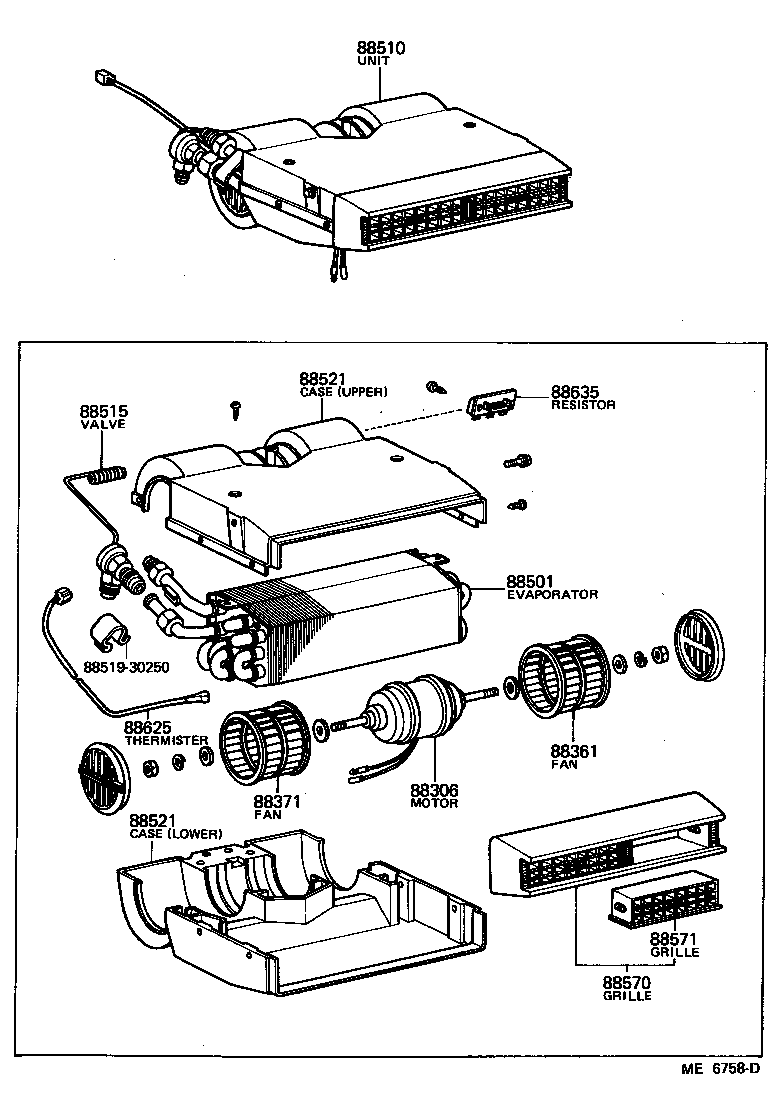

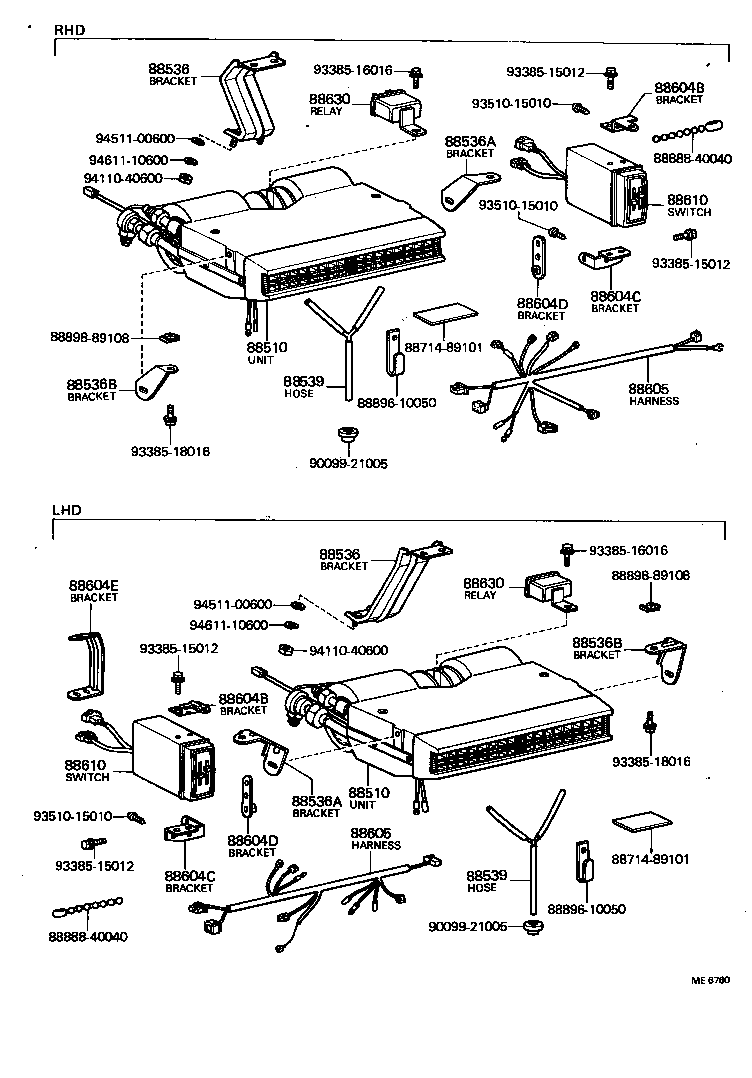

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95A01 |
RH2#,3#..RHD |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95A00 |
RH2#,3#..RHD |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-10010 |
RH2#,3#..RHD |
2 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 55061-20010 |
RH2#,3#..RHD |
8 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH2#,3#..RHD RH |
1 | ||
| Common parts | ||||
| 88519-30250 | ||||
(7702-7804)03S,06S ; (7702-7912)RH11,2#,3#..ARL,GEN,IDN,SA

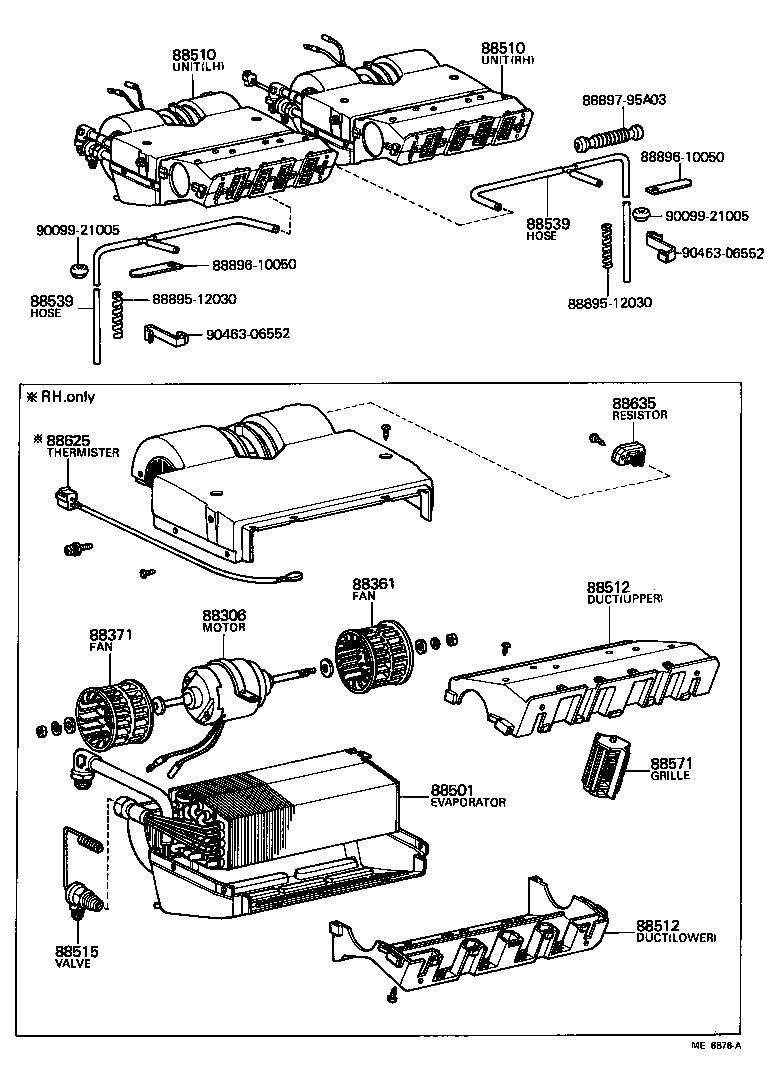

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A01 |
RH2#,3#..RHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A01 |
RH2#,3#..RHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95A00 |
RH2#,3#..RHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95A00 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 88714-89101 | ||||
| 88888-40040 | ||||
| 88896-10050 | ||||
| 88898-89108 | ||||
| 90099-21005 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93510-15010 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94611-10600 | ||||
(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95A01 |
RH2#,3#..RHD |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95A00 |
RH2#,3#..RHD |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88512 - DUCT, AIR | ||||
| 88576-95A01 |
RH2#,3#..RHD LWR,LH |
1 | ||
| 88576-95A02 |
RH2#,3#..RHD LWR,RH |
1 | ||
| 88576-95A00 |
RH2#,3#..RHD UPR |
2 | ||
| 88512 - DUCT, AIR | ||||
| 88576-95A01 |
RH2#,3#..RHD LWR,LH |
1 | ||
| 88576-95A02 |
RH2#,3#..RHD LWR,RH |
1 | ||
| 88576-95A00 |
RH2#,3#..RHD UPR |
2 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-10010 |
RH2#,3#..RHD |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88571 - GRILLE, AIR OUTLET | ||||
| 55061-20010 |
RH2#,3#..RHD |
8 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH2#,3#..RHD RH |
1 | ||
| Common parts | ||||
| 88895-12030 | ||||
| 88896-10050 | ||||
| 88897-95A03 | ||||
| 90099-21005 | ||||
| 90463-06552 | ||||
(7702-7804)RH22,42 ; (7702-7804)RH20,3#..RHD ; (7702-7804)LHD..12S..EUR ; (7702-780

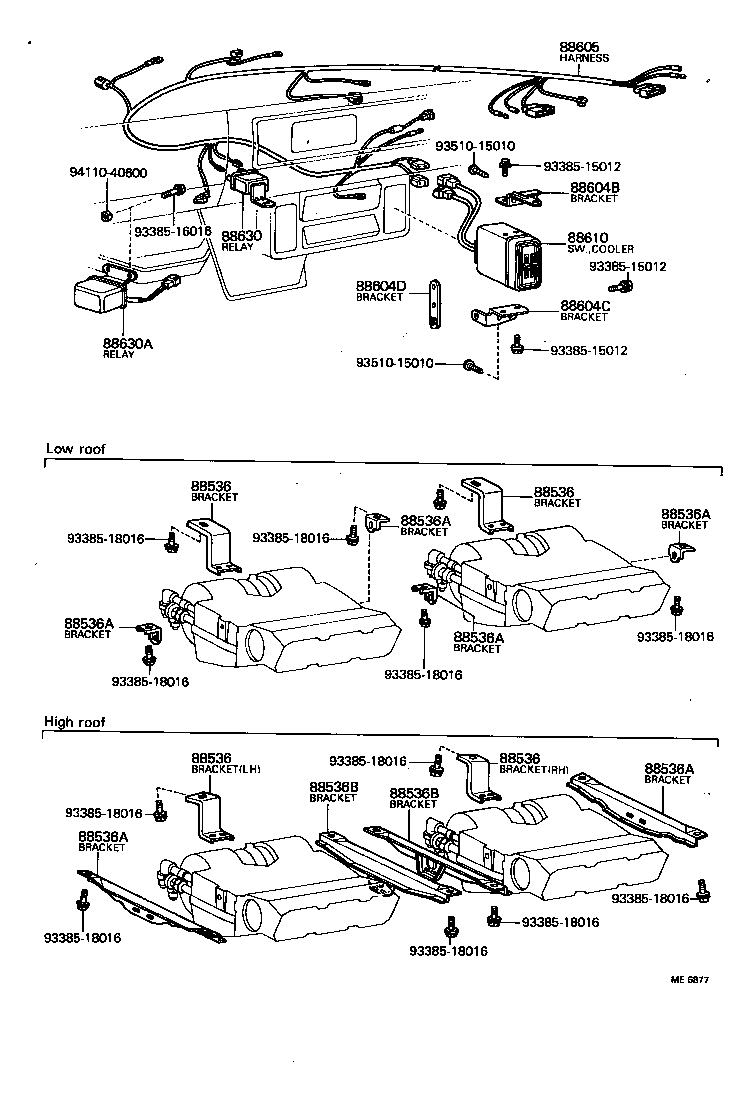

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A01 |
RH2#,3#..RHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95A00 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93510-15010 | ||||
| 94110-40600 | ||||
(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-95A01 |
RH2#,3#..RHD |
2 | ||
| 88550-95A01 |
RH2#,3#..RHD |
2 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95A00 |
RH2#,3#..RHD |
2 | ||
| 88501-95A00 |
RH2#,3#..RHD |
2 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A00 |
RH2#,3#..RHD RH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88510-95A01 |
RH2#,3#..RHD LH |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-10010 |
RH2#,3#..RHD |
2 | ||
| 88515-10010 |
RH2#,3#..RHD |
2 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH2#,3#..RHD RH |
1 | ||
| 88625-12040 |
RH2#,3#..RHD RH |
1 | ||
| Common parts | ||||
| 90099-14046 | ||||
(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791

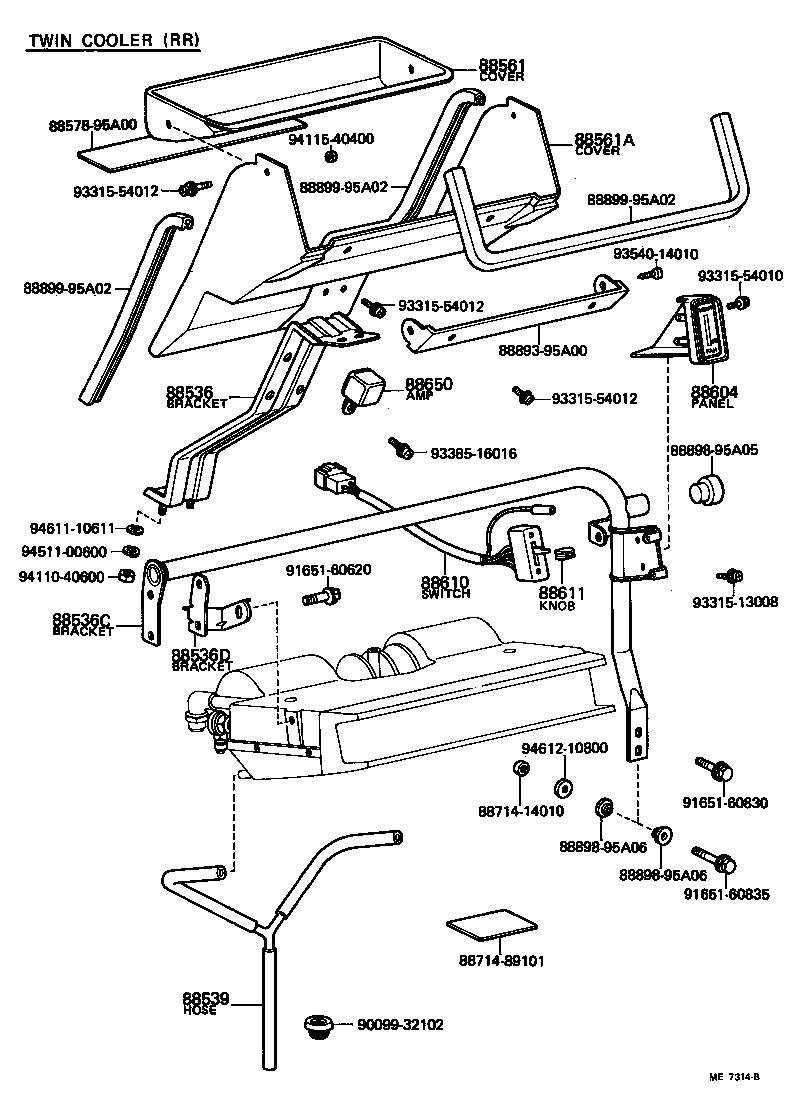

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95A00 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 88578-95A00 | ||||
| 88714-14010 | ||||
| 88714-89101 | ||||
| 88893-95A00 | ||||
| 88898-95A05 | ||||
| 88898-95A06 | ||||
| 88899-95A02 | ||||
| 90099-32102 | ||||
| 91651-60620 | ||||
| 91651-60830 | ||||
| 91651-60835 | ||||
| 93315-13008 | ||||
| 93315-54010 | ||||
| 93315-54012 | ||||
| 93385-16016 | ||||
| 93540-14010 | ||||
| 94110-40600 | ||||
| 94115-40400 | ||||
| 94511-00600 | ||||
| 94611-10611 | ||||
| 94612-10800 | ||||
(7804-7912)RH22,42 ; (7804-7912)RH20,3#..RHD ; (7804-7912)LHD..12S..EUR ; (7804-791

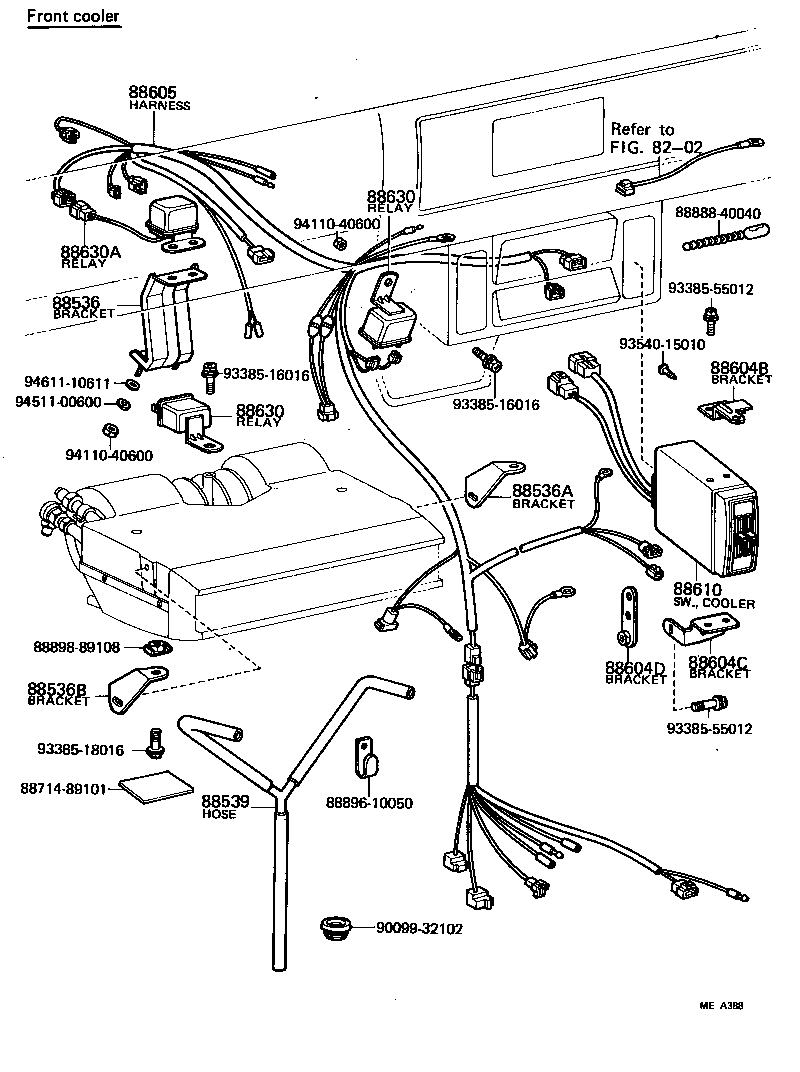

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A04 |
RH2#,3#..RHD |
2 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A03 |
RH2#,3#..RHD |
4 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90700 |
RH2#,3#..RHD |
2 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A01 |
RH2#,3#..RHD |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95A00 |
RH2#,3#..RHD |
1 | ||
| Common parts | ||||
| 88714-89101 | ||||
| 88888-40040 | ||||
| 88896-10050 | ||||
| 88898-89108 | ||||
| 90099-32102 | ||||
| 93385-16016 | ||||
| 93385-18016 | ||||
| 93385-55012 | ||||
| 93540-15010 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94611-10611 | ||||
| Linked diagrams | ||||
