RH11R-JRB (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )RHD

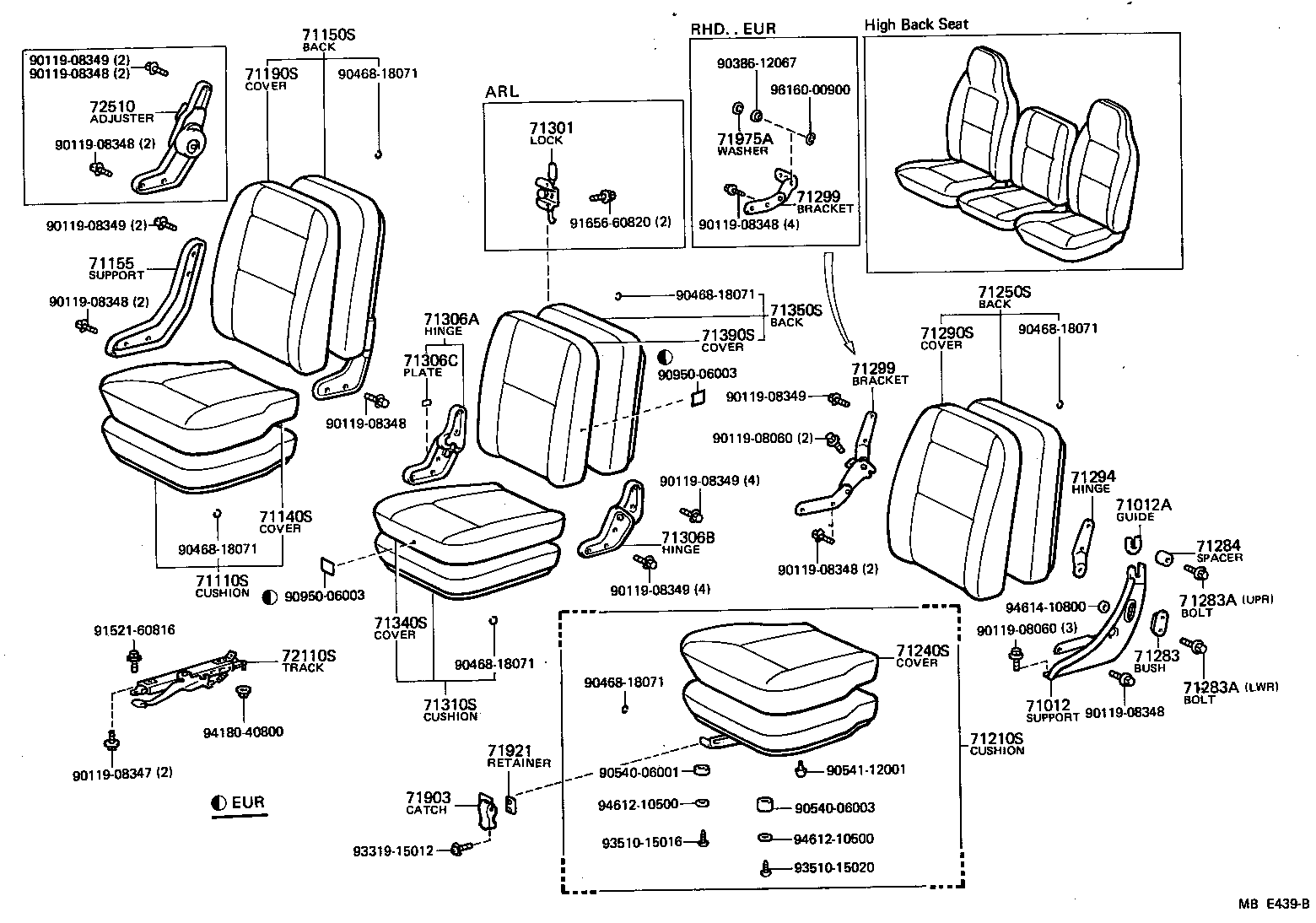

Click highlighted areas on diagram

diagram 71012 71012A 71110S 71140S 71150S 71155 71190S 71210S 71240S 71250S 71283 71283A 71283A 71284 71290S 71294 71299 71299 71301 71306A 71306B 71306C 71310S 71340S 71350S 71390S 71903 71921 71975A 72110S 72510 9011908060 9011908060 9011908347 9011908348 9011908348 9011908348 9011908348 9011908348 9011908348 9011908348 9011908349 9011908349 9011908349 9011908349 9011908349 9038612067 9046818071 9046818071 9046818071 9046818071 9046818071 9046818071 9054006001 9054006003 9054112001 9095006003 9095006003 9152160816 9165660820 9331915012 9351015016 9351015020 9418040800 9461210500 9461210500 9461410800 9616000900
Part # Description Qty Price
71012 - SUPPORT SUB-ASSY, FRONT SEAT BACK, LH
71012-95A05

LH11,RH11..RHD

 1
71012A - GUIDE, FRONT SEAT BACK SUPPORT, LH
71297-95A00

LH11,RH11..RHD

 1
71110S - CUSHION ASSY, FRONT SEAT, RH
71110-95A51

LH11,RH11..RHD..(ARL,GEN)

T=1.5

 1
71110-95A49

LH11,RH11..RHD..GEN

T=0.45

 1
71110-95A49

LH11,RH11..RHD..(GEN,IDN)

T=0.45

 1
71140S - COVER, FRONT SEAT CUSHION, RH
71140-95A39

LH11,RH11..ARL,GEN

T=1.5

 1
71140-95A37

LH11,RH11..GEN

T=0.45

 1
71140-95A37

LH11,RH11..GEN,IDN

T=0.45

 1
71150S - BACK ASSY, FRONT SEAT, RH
71170-95A10

LH11,RH11..GEN,IDN

T=0.45,*HBS

 1
71170-95A16

LH11,RH11..RHD..GEN

T=1.5,W/ADJUSTER

 1
71170-95A15

LH11,RH11..GEN

T=1.5

 1
71170-95A13

LH11,RH11..RHD..GEN

T=0.45,W/ADJUSTER

 1
71170-95A18

LH11,RH11..RHD..GEN

T=1.5,*HBS,W/ADJUSTER

 1
71170-95A17

LH11,RH11..GEN

T=1.5,*HBS

 1
71170-95A12

LH11,RH11..GEN

T=0.45

 1
71170-95A14

LH11,RH11..RHD..GEN

T=0.45,*HBS,W/ADJUSTER

 1
71170-95A10

LH11,RH11..GEN

T=0.45,*HBS

 1
71155 - SUPPORT, DRIVER SEAT BACK, RH
71191-95A05

LH11,RH11..EUR,GEN,IDN

 1
71190S - COVER, FRONT SEAT BACK, RH
71190-95A73

LH11,RH11..RHD..GEN

T=0.45,W/ADJUSTER

 1
71190-95A74

LH11,RH11..RHD..GEN

T=0.45,*HBS,W/ADJUSTER

 1
71190-95A77

LH11,RH11..GEN

T=1.5,*HBS

 1
71190-95A70

LH11,RH11..GEN,IDN

T=0.45,*HBS

 1
71190-95A75

LH11,RH11..GEN

T=1.5

 1
71190-95A78

LH11,RH11..RHD..GEN

T=1.5,*HBS,W/ADJUSTER

 1
71190-95A72

LH11,RH11..GEN

T=0.45

 1
71190-95A70

LH11,RH11..GEN

T=0.45,*HBS

 1
71190-95A76

LH11,RH11..RHD..GEN

T=1.5,W/ADJUSTER

 1
71210S - CUSHION ASSY, FRONT SEAT, LH
71210-95A48

LH11,RH11..RHD..GEN

T=0.45

 1
71210-95A50

LH11,RH11..RHD..(ARL,GEN)

T=1.5

 1
71210-95A48

LH11,RH11..RHD..(GEN,IDN)

T=0.45

 1
71240S - COVER, FRONT SEAT CUSHION, LH
71240-95A53

LH11,RH11..RHD..(ARL,GEN)

T=1.5

 1
71240-95A51

LH11,RH11..RHD..GEN

T=0.45

 1
71240-95A51

LH11,RH11..RHD..(GEN,IDN)

T=0.45

 1
71250S - BACK ASSY, FRONT SEAT, LH
71270-95A07

LH11,RH11..RHD..(ARL,GEN)

T=1.5,*HBS

 1
71270-95A05

LH11,RH11..RHD..GEN

T=0.45

 1
71270-95A06

LH11,RH11..RHD..GEN

T=1.5

 1
71270-95A03

LH11,RH11..RHD..(GEN,IDN)

T=0.45,*HBS

 1
71270-95A03

LH11,RH11..RHD..GEN

T=0.45,*HBS

 1
71283 - BUSH, FRONT SEAT BACK SUPPORT, LH
71283-95A00

LH11,RH11..RHD

 1
71283A - BOLT, FRONT SEAT BACK SUPPORT, LH
71282-95A00

LH11,RH11..RHD

LWR

 1
71285-95A00

LH11,RH11..RHD

UPR

 1
71283A - BOLT, FRONT SEAT BACK SUPPORT, LH
71282-95A00

LH11,RH11..RHD

LWR

 1
71285-95A00

LH11,RH11..RHD

UPR

 1
71284 - SPACER, FRONT SEAT BACK SUPPORT, LH
71284-95A00

LH11,RH11..RHD

 1
71290S - COVER, FRONT SEAT BACK, LH
71290-95A19

LH11,RH11..RHD..GEN

T=1.5

 1
71290-95A16

LH11,RH11..RHD..(GEN,IDN)

T=0.45,*HBS

 1
71290-95A16

LH11,RH11..RHD..GEN

T=0.45,*HBS

 1
71290-95A20

LH11,RH11..RHD..(ARL,GEN)

T=1.5,*HBS

 1
71290-95A18

LH11,RH11..RHD..GEN

T=0.45

 1
71294 - HINGE, FRONT SEAT BACK, LH
71294-95A05

LH11,RH11..RHD

 1
71299 - BRACKET, FRONT SEAT BACK, LH
71209-95A15

LH11,RH11..RHD..(GEN,IDN)

 1
71299 - BRACKET, FRONT SEAT BACK, LH
71209-95A15

LH11,RH11..RHD..(GEN,IDN)

 1
71306A - HINGE SUB-ASSY, CENTER SEAT, RH
71330-95A07

LH11,RH11..RHD..(EUR,GEN,IDN)

 1
71330-95A07

LH11,RH11..RHD..(EUR,GEN)

 1
71306B - HINGE SUB-ASSY, CENTER SEAT, LH
71308-95A07

LH11,RH11

 1
71306C - PLATE, CENTER SEAT HINGE CAUTION
71386-95A00

LH11,RH11..EUR,GEN,IDN

 1
71310S - CUSHION ASSY, FRONT SEAT, CENTER
71310-95A34

LH11,RH11..RHD..(ARL,GEN,IDN)

 1
71310-95A34

LH11,RH11..RHD

 1
71310-95A34

LH11,RH11..RHD..(ARL,GEN)

 1
71340S - COVER, FRONT SEAT CUSHION, CENTER
71340-95A31

LH11,RH11

 1
71340-95A31

LH11,RH11..ARL,GEN,IDN

 1
71340-95A31

LH11,RH11..ARL,GEN

 1
71350S - BACK ASSY, FRONT SEAT, CENTER
71350-95A44

LH11,RH11..GEN

 1
71350-95A44

LH11,RH11..EUR,GEN,IDN

 1
71350-95A44

LH11,RH11..GEN,IDN

 1
71390S - COVER, FRONT SEAT BACK, CENTER
71390-95A37

LH11,RH11

 1
71390-95A37

LH11,RH11..ARL,GEN

 1
71390-95A37

LH11,RH11..ARL,GEN,IDN

 1
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
71901-95016

LH11,RH11..RHD

 1
71921 - RETAINER, ENGINE SERVICE HOLE COVER CATCH
71921-95700

LH11,RH11..RHD

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72710-95A00

LH11,RH11..RHD

 1
72710-95A00

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-95A09

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
Common parts
90119-08060
90119-08347
90119-08348
90119-08349
90386-12067
90468-18071
90540-06001
90540-06003
90541-12001
90950-06003
91521-60816
91656-60820
93319-15012
93510-15016
93510-15020
94180-40800
94612-10500
94614-10800
96160-00900
