RH11R-JR3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

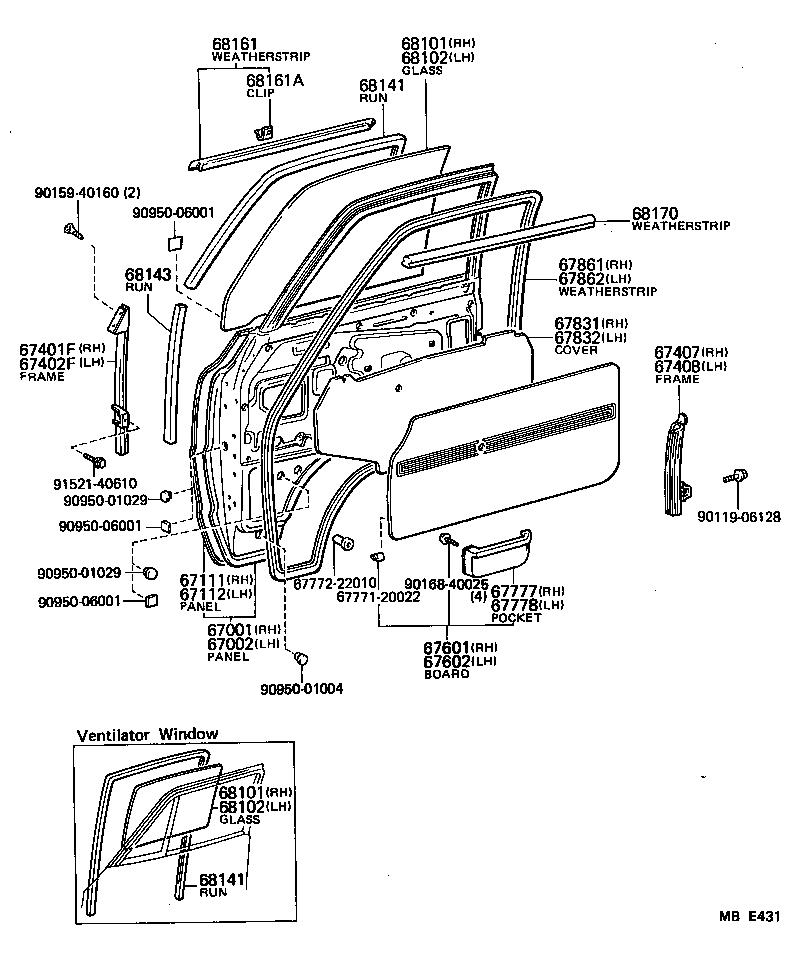

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67407 67408 67601 67602 6777120022 6777222010 67777 67778 67831 67832 67861 67862 68101 68101 68102 68102 68141 68141 68143 68161 68161A 68170 9011906128 9015940160 9016840025 9095001004 9095001029 9095001029 9095006001 9095006001 9095006001 9152140610
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95A11

LH11,RH11..EUR,GEN

 1
67001-95A10

LH11,RH11..ARL,EUR,GEN

VENTILATOR WINDOW

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95A09

LH11,RH11..RHD..(ARL,GEN)

VENTILATOR WINDOW

 1
67002-95A18

LH11,RH11..RHD..GEN

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95920

LH11,RH11..ARL,EUR,GEN

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95A09

LH11,RH11..RHD..(ARL,GEN)

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-95A01

LH11,RH11..EUR,GEN

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-95A01

LH11,RH11..EUR,GEN

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67407-95A00

LH11,RH11

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67408-95A00

LH11,RH11

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-95A36

LH11,RH11..LHD..EUR;LH11,RH11..ARL,GEN,IDN

 1
67610-95A36

LH11,RH11..ARL,GEN,IDN

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-95A49

LH11,RH11..ARL,GEN,IDN

 1
67620-95A49

LH11,RH11..RHD;LH11,RH11..LHD..GEN

 1
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95A00

LH11,RH11

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-95A00

LH11,RH11

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67865-95A00

LH11,RH11

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67866-95A00

LH11,RH11

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95A02

LH11,RH11

VENTILATOR WINDOW

 1
68111-95A00

LH11,RH11..EUR,GEN

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95A02

LH11,RH11

VENTILATOR WINDOW

 1
68111-95A00

LH11,RH11..EUR,GEN

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95A00

LH11,RH11..EUR,GEN

 1
68112-95A02

LH11,RH11

VENTILATOR WINDOW

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95A00

LH11,RH11..EUR,GEN

 1
68112-95A02

LH11,RH11

VENTILATOR WINDOW

 1
68141 - RUN, FRONT DOOR GLASS
68141-95A01

LH11,RH11

 2
68141-95A02

LH11,RH11..EUR,GEN

 2
68141 - RUN, FRONT DOOR GLASS
68141-95A01

LH11,RH11

 2
68141-95A02

LH11,RH11..EUR,GEN

 2
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-95A00

LH11,RH11..EUR,GEN

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68180-95A01

LH11,RH11

RH,VENTILATOR WINDOW

 1
68180-95A00

LH11,RH11..EUR,GEN

RH

 1
68190-95A01

LH11,RH11

LH,VENTILATOR WINDOW

 1
68190-95A00

LH11,RH11..EUR,GEN

LH

 1
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68212-95A01

LH11,RH11

 14
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68130-95A01

LH11,RH11

RH,VENTILATOR WINDOW

 1
68130-95A00

LH11,RH11..EUR,GEN

 2
68140-95A01

LH11,RH11

LH,VENTILATOR WINDOW

 1
Common parts
67771-20022
67772-22010
90119-06128
90159-40160
90168-40025
90950-01004
90950-01029
90950-06001
91521-40610
