RH11R-JR (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH11,RH11,25

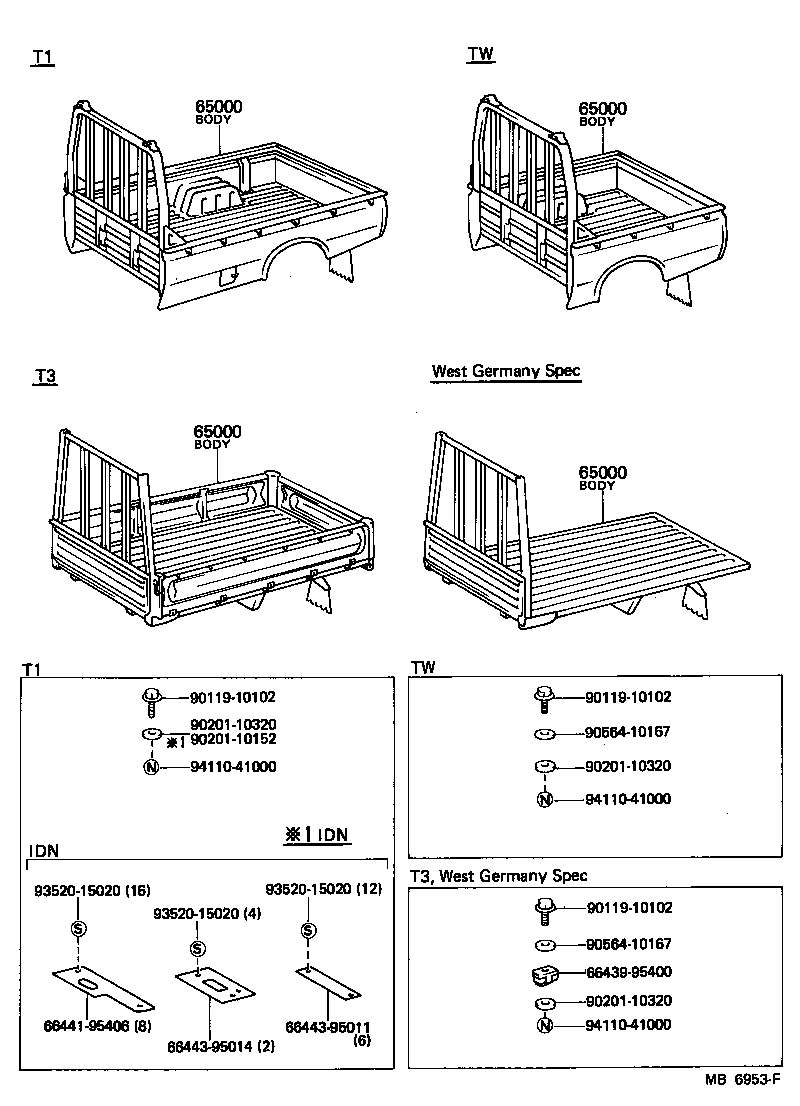

Click highlighted areas on diagram

diagram 65000 65000 65000 65000 6643995400 6644195406 6644395011 6644395014 9011910102 9011910102 9011910102 9020110152 9020110320 9020110320 9020110320 9056410167 9056410167 9352015020 9352015020 9352015020 9411041000 9411041000 9411041000
Part # Description Qty Price
65000 - BODY ASSY, REAR
65000-95A06

RH11..T1..(ARL,GEN)

 1
65000 - BODY ASSY, REAR
65000-95A06

RH11..T1..(ARL,GEN)

 1
65000 - BODY ASSY, REAR
65000-95A06

RH11..T1..(ARL,GEN)

 1
65000 - BODY ASSY, REAR
65000-95A06

RH11..T1..(ARL,GEN)

 1
Common parts
66439-95400
66441-95406
66443-95011
66443-95014
90119-10102
90201-10152
90201-10320
90564-10167
93520-15020
94110-41000
