RH11R-JR (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH11,RH11,25

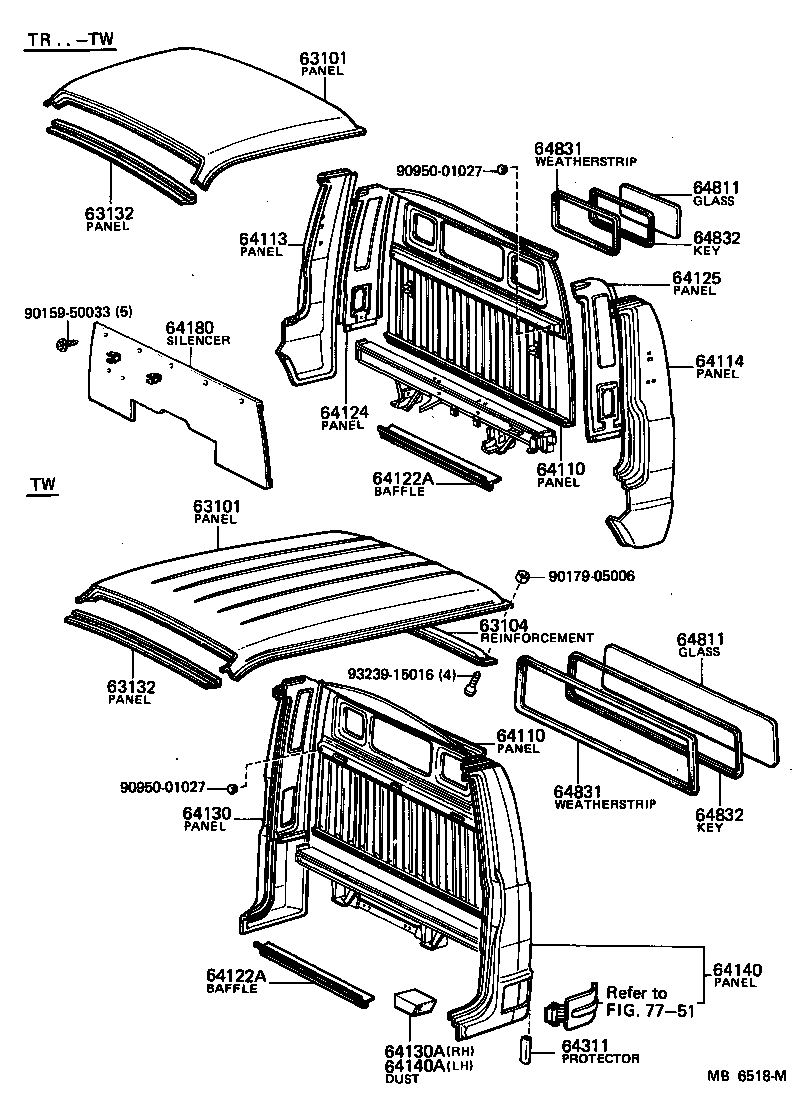

Click highlighted areas on diagram

diagram 63101 63101 63104 63132 63132 64110 64110 64113 64114 64122A 64122A 64124 64125 64130 64130A 64140 64140A 64180 64311 64811 64811 64831 64831 64832 64832 7751 9015950033 9017905006 9095001027 9095001027 9323915016
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95A03

LH11,RH11,25..02S,03S

 1
63101 - PANEL SUB-ASSY, ROOF
63111-95A03

LH11,RH11,25..02S,03S

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63145-95A00

LH20,30,RH20,22,3#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH11,20,30,RH11,2#,3#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH11,20,30,RH11,2#,3#

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95A00

RH11,25..02S,03S

 1
64110 - PANEL ASSY, FRONT BODY BACK
64101-95A00

RH11,25..02S,03S

 1
64113 - PANEL, BACK CORNER, OUTER RH
64103-95A00

LH11,RH11,25..03S

 1
64114 - PANEL, BACK CORNER, OUTER LH
64104-95A00

LH11,RH11,25..03S..(ARL,EUR,GEN)

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A00

LH11,RH11..T1,TW

 1
64122-95601

RH11..T1

 1
64122A - BAFFLE, DUST REAR BODY
64122-95A00

LH11,RH11..T1,TW

 1
64122-95601

RH11..T1

 1
64124 - PANEL, BACK CORNER, INSIDE, RH
64107-95A02

LH11,RH11,25..03S

 1
64125 - PANEL, BACK CORNER, INSIDE, LH
64108-95A02

LH11,RH11,25..03S

 1
64811 - GLASS, BACK WINDOW
64811-95015

LH11,RH11,25..02S,03S

*TEM,T=4.0

 1
64811 - GLASS, BACK WINDOW
64811-95015

LH11,RH11,25..02S,03S

*TEM,T=4.0

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

LH11,RH11,25..02S,03S

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64831-95015

LH11,RH11,25..02S,03S

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

LH11,RH11,25..02S,03S

 1
64832 - KEY, BACK WINDOW WEATHERSTRIP
64832-95010

LH11,RH11,25..02S,03S

 1
Common parts
90159-50033
90179-05006
90950-01027
93239-15016
Linked diagrams
7751

(7702- )LH20,30,RH20,22,3#,42

Click highlighted areas on diagram

diagram 63101 63102 63102 63104 63104 63104A 63104B 63104B 63105 63105 63114 63114 63124 63125 63132 63132 63133 63133 63137 63137 63147 63147 63147 63147 63171 63174 9014950002 9014950002 9014950002 9014950002 9014950002 9014950002 9014950002 9015250008 9017905006 9017905006 9017905006 9017905007 9017905007 9323915016 9323915016 9323915016 9331214012 9331214012
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-95A03

LH11,RH11,25..02S,03S

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63143-95A01

RH20,3#..03S..GEN

W/O ROOF SILENCER PAD

 1
63102 - REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
63143-95A01

RH20,3#..03S..GEN

W/O ROOF SILENCER PAD

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63145-95A00

LH20,30,RH20,22,3#

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63145-95A00

LH20,30,RH20,22,3#

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63143-95A01

LH20,30,RH20,22,3#..03S

 1
63105 - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63143-95A01

LH20,30,RH20,22,3#..03S

 1
63114 - REINFORCEMENT, ROOF PANEL, REAR
63145-95A00

LH20,30,RH20,22,3#

 1
63114 - REINFORCEMENT, ROOF PANEL, REAR
63145-95A00

LH20,30,RH20,22,3#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH11,20,30,RH11,2#,3#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63103-95A01

LH11,20,30,RH11,2#,3#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63106-95A00

LH20,30,RH20,22,3#

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63106-95A00

LH20,30,RH20,22,3#

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95A00

LH20,30,RH20,22,3#,42

 4
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95A00

LH20,30,RH20,22,3#,42

 4
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95A00

LH20,30,RH20,22,3#,42

 4
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63155-95A00

LH20,30,RH20,22,3#,42

 4
Common parts
90149-50002
90152-50008
90179-05006
90179-05007
93239-15016
93312-14012
