RH11LP-JRW (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )RH11

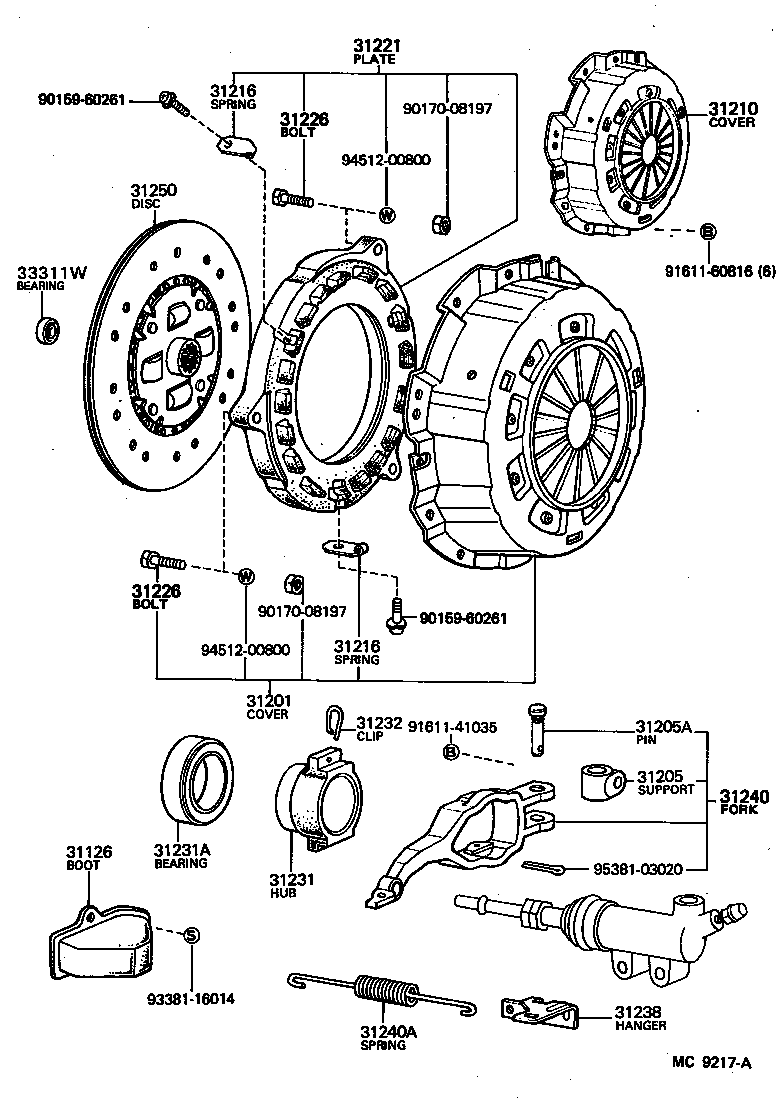

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-26010 |
RH11 |
1 | ||
| 31201 - COVER SUB-ASSY, CLUTCH | ||||
| 31201-39047 |
RH11 |
1 | ||
| 31205 - SUPPORT SUB-ASSY, RELEASE FORK | ||||
| 31205-30010 |
RH11 |
1 | ||
| 31205A - PIN, W/SERRATION(FOR RELEASE FORK SUPPORT) | ||||
| 90245-10072 |
RH11 |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35042 |
RH11 |
1 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LH11,RH11 |
3 | ||
| 31216 - SPRING, CLUTCH RETRACTING | ||||
| 31216-30010 |
LH11,RH11 |
3 | ||
| 31221 - PLATE, CLUTCH PRESSURE | ||||
| 31221-39045 |
RH11 |
1 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
LH11,RH11 |
6 | ||
| 31226 - BOLT, CLUTCH PRESSURE PLATE | ||||
| 90101-08022 |
LH11,RH11 |
6 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-35022 |
RH11 |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
LH11,RH11 |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-30020 |
LH11,RH11..4H |
2 | ||
| 31232-30020 |
LH11,RH11 |
2 | ||
| 31238 - HANGER, RELEASE FORK RETRACTING SPRING | ||||
| 31238-26010 |
RH11 |
1 | ||
| 31240 - FORK ASSY, CLUTCH RELEASE | ||||
| 31240-35012 |
RH11 |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90506-16282 |
RH11 |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-35061 |
LH11,RH11..4H |
1 | ||
| 31250-35062 |
LH11,RH11..4H |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
LH11,RH11 |
1 | ||
| Common parts | ||||
| 90159-60261 | ||||
| 90170-08197 | ||||
| 91611-41035 | ||||
| 91611-60816 | ||||
| 93381-16014 | ||||
| 94512-00800 | ||||
| 95381-03020 | ||||
