RH11L-JRW3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )RH11..LHD

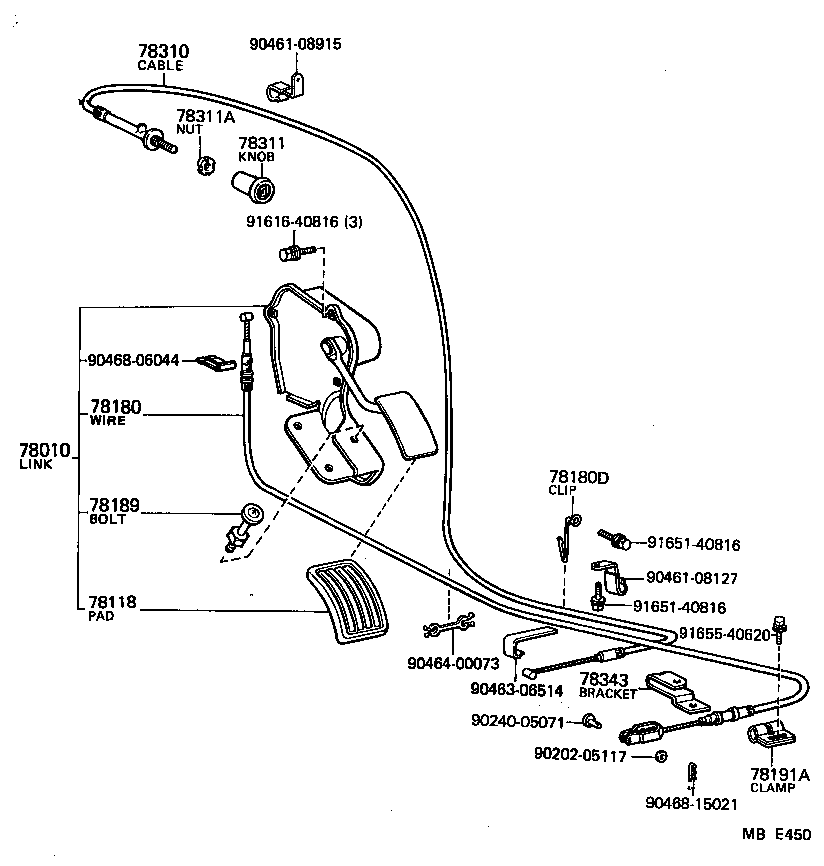

Click highlighted areas on diagram

diagram 78010 78118 78180 78180D 78189 78191A 78310 78311 78311A 78343 9020205117 9024005071 9046108127 9046108915 9046306514 9046400073 9046806044 9046815021 9161640816 9165140816 9165140816 9165540620
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78180-95A13

RH11..LHD

 1
78118 - PAD, ACCELERATOR PEDAL
78119-95A02

LH11,RH11

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95A02

RH11..LHD

 1
78180D - CLIP (FOR ACCELERATOR WIRE)
90463-16003

RH11..LHD

 2
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78107-95A01

LH11,RH11..LHD

 1
78310 - CABLE ASSY, CHOKE
78301-95A01

RH11..LHD

 1
78311 - KNOB, CHOKE CONTROL CABLE
78302-95A00

RH11

 1
78311A - NUT, CHOKE SHAFT SET
78314-95A00

RH11

 1
Common parts
90202-05117
90240-05071
90461-08127
90461-08915
90463-06514
90464-00073
90468-06044
90468-15021
91616-40816
91651-40816
91655-40620
