RH11L-JRW3 (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

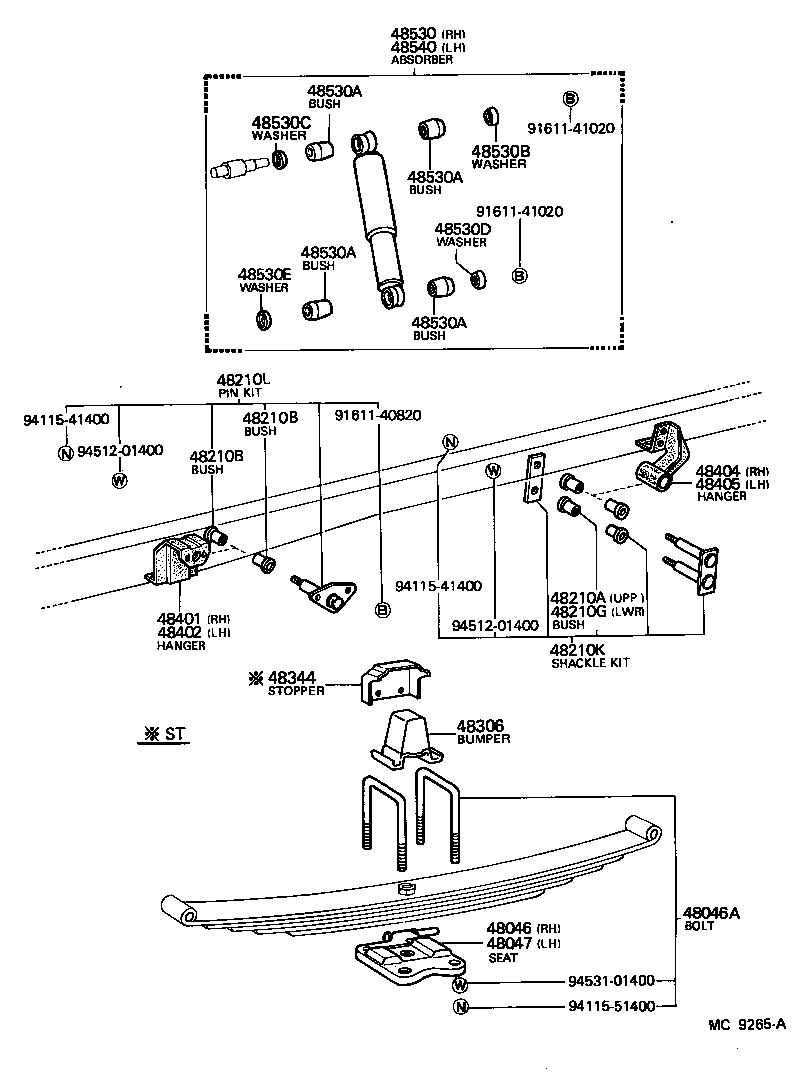

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-26040 |
LH11,RH11 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-14200 |
LH11,RH11 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-26040 |
LH11,RH11 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LH11,RH11 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH11,RH11 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
LH11,RH11 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
LH11,RH11 |
4 | ||
| 48210K - SHACKLE KIT, REAR SPRING | ||||
| 04483-26010 |
LH11,RH11 |
2 | ||
| 48210L - PIN KIT, REAR SPRING | ||||
| 04484-27010 |
LH11,RH11 |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-26050 |
LH11,RH11 |
2 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-25010 |
LH11,RH11 |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-26011 |
LH11,RH11 |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-26011 |
LH11,RH11 |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-26011 |
LH11,RH11 |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48417-26011 |
LH11,RH11 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-29385 |
LH11,RH11 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LH11,RH11 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LH11,RH11 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LH11,RH11 |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
LH11,RH11 |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03012 |
LH11,RH11 |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
LH11,RH11 |
2 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
LH11,RH11 |
2 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
LH11,RH11 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-29385 |
LH11,RH11 |
1 | ||
| Common parts | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 94115-41400 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||
| 94531-01400 | ||||
(8211- )

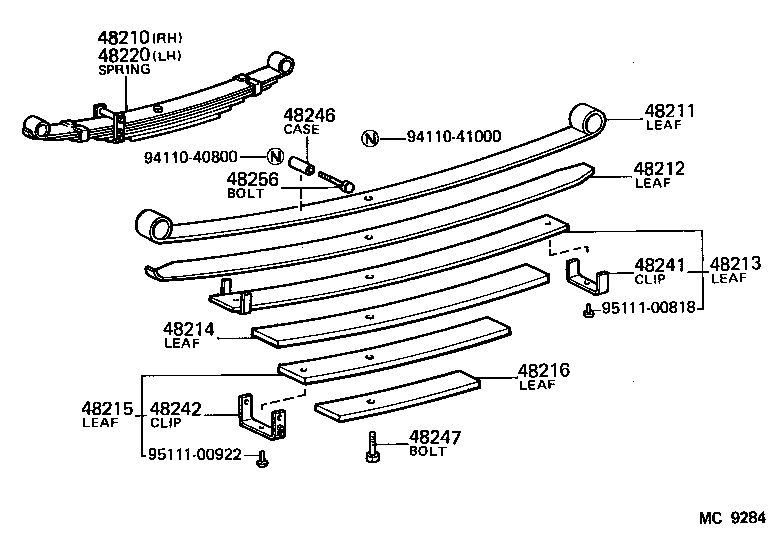

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-26210 |
LH11,RH11 |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-26060 |
LH11,RH11 |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-26060 |
LH11,RH11 |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-26060 |
LH11,RH11 |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-26060 |
LH11,RH11 |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48203-26060 |
LH11,RH11 RH |
1 | ||
| 48204-26060 |
LH11,RH11 LH |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48216-26060 |
LH11,RH11 |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48220-26210 |
LH11,RH11 |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48241-26060 |
LH11,RH11 |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-26011 |
LH11,RH11 |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-26060 |
LH11,RH11 |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-36052 |
LH11,RH11 |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-26010 |
LH11,RH11 |
2 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 95111-00818 | ||||
| 95111-00922 | ||||
